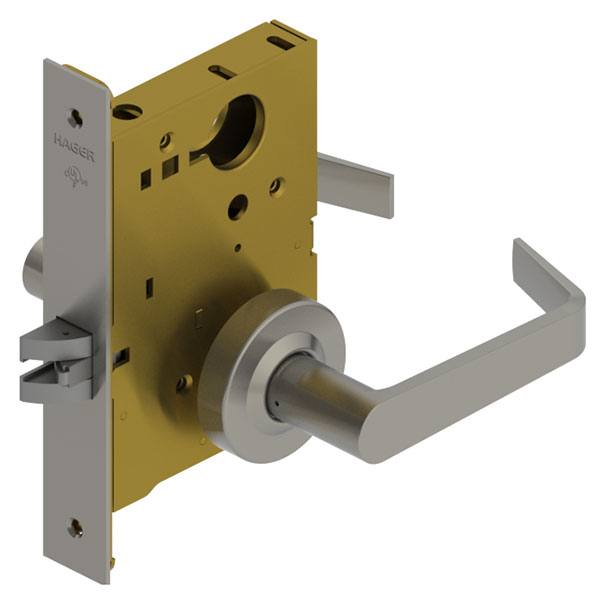

Hager 3810S Passage Mortise Latchset – Grade 1 Sectional Trim
The Hager 3810S Passage Mortise Latchset is a heavy-duty, commercial-grade hardware solution designed for interior doors where locking is not required. This Passage Function (ANSI F01) set features a synchronized lever operation where both the inside and outside levers are always active. Utilizing the Sectional (S) Trim—which features a low-profile rose rather than a full escutcheon plate—the 3810S is the premier choice for modern high-traffic areas in hospitals, boutique hotels, and corporate offices.
As a BHMA Certified Grade 1 device, the 3810S is built to withstand the most demanding physical environments. The Sectional Trim provides a minimalist, contemporary architectural look while housing a heavy-duty mortise lock body constructed from high-strength steel. This ensures smooth mechanical performance for millions of cycles without compromising the aesthetic of the door.
Architectural Versatility & Heavy-Duty Mounting
The Hager 3810S combines the industrial strength of a mortise lock with the accessibility of an ADA compliant lever handle. The internal components are precision-engineered to provide a solid tactile feel and prevent the handle sagging common in lower-grade hardware. For a permanent and stable mount, the rose and lever assembly are secured using thru bolts, providing a high-strength, through-the-door connection that keeps the trim perfectly aligned under heavy daily use.
Key Features
- Passage Functionality: Both levers are always unlocked and active for immediate transit (ANSI F01).
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life.
- ADA Compliant Levers: Ergonomic designs meet A117.1 Accessibility Code requirements.
- Sectional Rose Trim: Provides a modern, minimalist look for high-end architectural projects.
- Non-Handed: Fully reversible in the field to accommodate any door swing.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3810S |
| ANSI Function | F01 (Passage / Always Operable) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Sectional (S) Rose Design |
| Rose Diameter | 2-7/16" (62 mm) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Lever Options
Customize your Hager 3810S at DoorwaysPlus.com to match your facility's architectural aesthetic:
- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Anti-Microbial Coating: Optional silver-ion based coating is available for healthcare applications to inhibit the growth of bacteria on touch surfaces.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | Hager |
| ANSI Mortise Lock Function | F01 - Passage |
| Series | Hager - 3800 Series |
