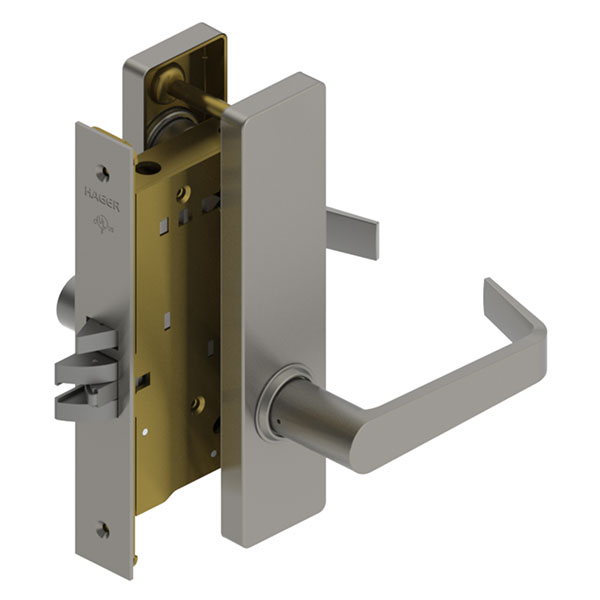

Hager 3810E Passage Mortise Latchset – Grade 1 Escutcheon Trim
The Hager 3810E Passage Mortise Latchset is a heavy-duty, commercial-grade hardware solution designed for interior doors where locking is not required. This Passage Function (ANSI F01) set features a synchronized lever operation where both the inside and outside levers are always active. It is the premier choice for high-traffic areas in hospitals, universities, and corporate offices, such as hallway transitions, common rooms, and non-secure storage areas.
As a BHMA Certified Grade 1 device, the 3810E is built to withstand the most demanding physical environments. The Escutcheon (E) trim design provides a sleek, continuous vertical plate that covers the door preparation, offering a clean and professional appearance. The heavy-duty mortise lock body is constructed from high-strength steel with a corrosion-resistant coating, ensuring smooth mechanical performance for millions of cycles.
Industrial Durability & Architectural Style
The Hager 3810E combines the strength of a mortise lock with the accessibility of an ADA compliant lever handle. The internal components are precision-engineered to provide a solid tactile feel without the sagging often found in lower-grade hardware. For a permanent and stable mount, the escutcheon plates are secured using thru bolts, providing a high-strength, through-the-door connection that keeps the trim perfectly aligned even under heavy daily use.
Key Features
- Passage Functionality: Both levers are always unlocked and active (ANSI F01).
- Grade 1 Reliability: BHMA certified to meet the highest industry standards for mechanical life.
- ADA Compliant Levers: Ergonomic designs meet A117.1 Accessibility Code requirements.
- Escutcheon Trim Design: Provides a classic, high-end look with a 2-1/8" x 8" footprint.
- Heavy-Duty Mortise Body: Case-hardened steel components for maximum longevity.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 3810E |
| ANSI Function | F01 (Passage / Always Operable) |
| Certification | BHMA Certified Grade 1 (ANSI A156.13) |
| Trim Style | Escutcheon (E) Design |
| Door Thickness | Standard 1-3/4" (Fits 1-3/8" to 2-1/2" doors) |
| Backset | 2-3/4" (70 mm) Standard |
| Fasteners | Thru Bolts, Wood, and Machine Screws |
| Warranty | Lifetime Limited Manufacturer Warranty |
Available Finish & Lever Options
Customize your Hager 3810E at DoorwaysPlus.com to match your facility's architectural aesthetic:
- Lever Designs: Choose from the Archer (ARC), August (AUG), or Withnell (WTN) styles.
- Architectural Finishes: Available in Satin Stainless Steel (US32D), Satin Chrome (US26D), Dark Bronze (US10B), and Bright Brass (US3).
- Anti-Microbial Coating: Optional silver-ion based coating is available for healthcare applications to inhibit the growth of bacteria.
| Trim Design | WTN - Withnell or ARC - Archer or AUG- August |
| General - US Finishes | US26D - Satin Chrome or US32D - Satin Stainless Steel/ 630 or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US4 - Satin Brass or US10B - Oil Rubbed Bronze |
| Brand | Hager |
| ANSI Mortise Lock Function | F01 - Passage |
| Series | Hager - 3800 Series |
