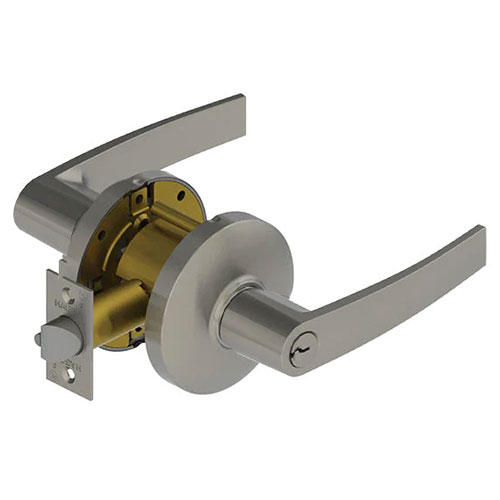

Hager 3580 AUG Grade 2 Storeroom Lever Lockset
Function Information:
The Hager 3580 AUG is a heavy-duty, commercial-grade cylindrical lockset designed for areas where security is the highest priority. As a Storeroom Function (ANSI F86), the exterior lever is permanently rigid and only allows entry via an exterior key, ensuring the door is never inadvertently left unlocked. Featuring the bold, modern August (AUG) lever design, this lockset delivers a clean, linear architectural aesthetic while providing the institutional-strength durability of the Hager 3500 Series.
Constant Security and Life-Safety Compliance
The Hager 3580 is the preferred choice for mechanical rooms, electrical closets, and high-value storage areas. Because the outside lever does not turn without a key, it eliminates the risk of human error in securing restricted spaces. For occupant safety, the inside lever always allows for free egress, ensuring anyone inside the room can exit instantly. To protect against forced entry, the deadlocking latchbolt is specifically engineered to resist "shimming" and unauthorized retraction when the door is closed.
Industrial Build and Universal Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 3500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for superior corrosion resistance. The August lever is fully ADA compliant, offering an ergonomic, straight-profile grip that is easily operated by all users. With no exposed mounting screws and a secure thru-bolt installation, the 3580 AUG offers a sleek, professional profile that is highly resistant to tampering and vandalism in high-traffic commercial environments.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Storeroom (ANSI F86) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

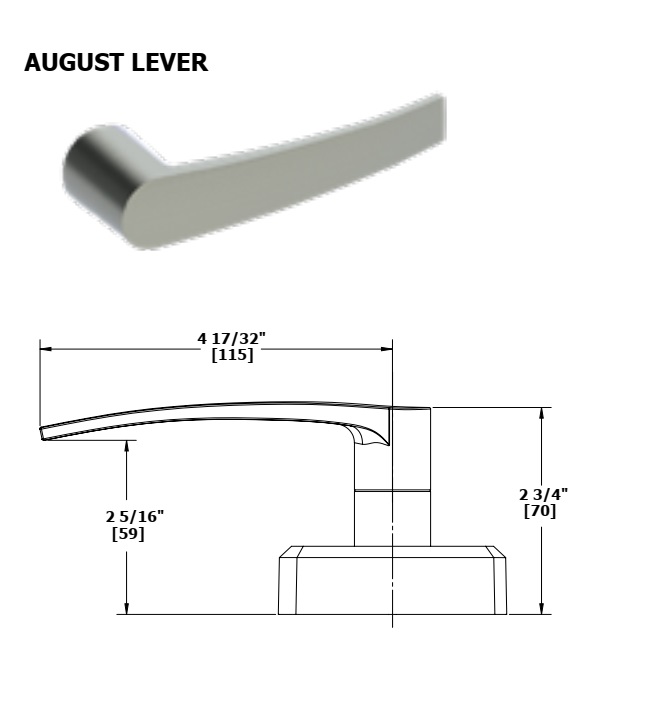

| Lever Style | August (AUG) |
| Outside Status | Always Rigid / Key Entry Only |
| Inside Status | Always Active (Free Egress) |
| Cylinder | 6-Pin Conventional, Schlage C Keyway |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- August Architectural Design: The AUG lever provides a sharp, contemporary look that complements modern executive office and professional facility designs.
- Fail-Safe Security: The exterior lever is always locked; a key is required for every entry, ensuring sensitive areas are never left vulnerable to unauthorized access.
- Enhanced Vandal Resistance: The integrated thru-bolt design ensures the hardware remains secure and stable during rigorous daily use in busy commercial facilities.
- Code-Compliant Safety: UL/cUL listed for 3-hour fire doors, fulfilling the critical building and life-safety requirements for modern institutional projects.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | AUG- August |
| Series | Hager - 3500 Series |
