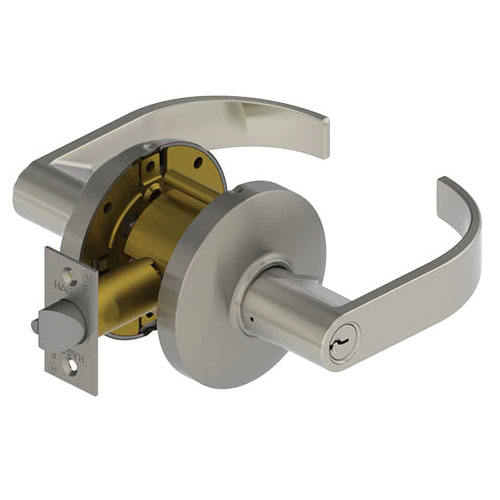

Hager 3580 ARC Grade 2 Storeroom Lever Lockset
Function Information:
The Hager 3580 ARC is a heavy-duty, commercial-grade cylindrical lockset engineered for maximum security in sensitive areas. As a Storeroom Function (ANSI F86), the exterior lever is permanently rigid and only retracts the latchbolt via an exterior key, ensuring the door is always locked from the outside. Featuring the elegant, sweeping Archer (ARC) lever design, this lockset provides a high-end architectural look while delivering the institutional-strength performance of the Hager 3500 Series.
Uncompromising Security and Occupant Safety
The Hager 3580 is the industry-standard choice for mechanical rooms, IT closets, and supply areas where restricted access is mandatory. Because the exterior lever never remains in an unlocked state, it eliminates the possibility of the door being left open to unauthorized personnel. For critical life safety, the inside lever always allows for free egress, ensuring anyone inside the room can exit instantly. The deadlocking latchbolt provides a robust defense against forced entry, specifically designed to resist "shimming" and unauthorized retraction.
Architectural Durability and Full Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 3500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for superior corrosion resistance. The Archer lever is fully ADA compliant, offering an ergonomic, curved profile that is easily operated by all users. With no exposed mounting screws and a secure thru-bolt installation, the 3580 ARC provides a clean, professional profile that is highly resistant to tampering and vandalism in high-traffic commercial environments.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Storeroom (ANSI F86) |
| Grade | ANSI/BHMA A156.2 Grade 2 |
| Lever Style | Archer (ARC) |
| Outside Status | Always Rigid / Key Required for Entry |
| Inside Status | Always Active (Free Egress) |
| Cylinder | 6-Pin Conventional, Schlage C Keyway |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights

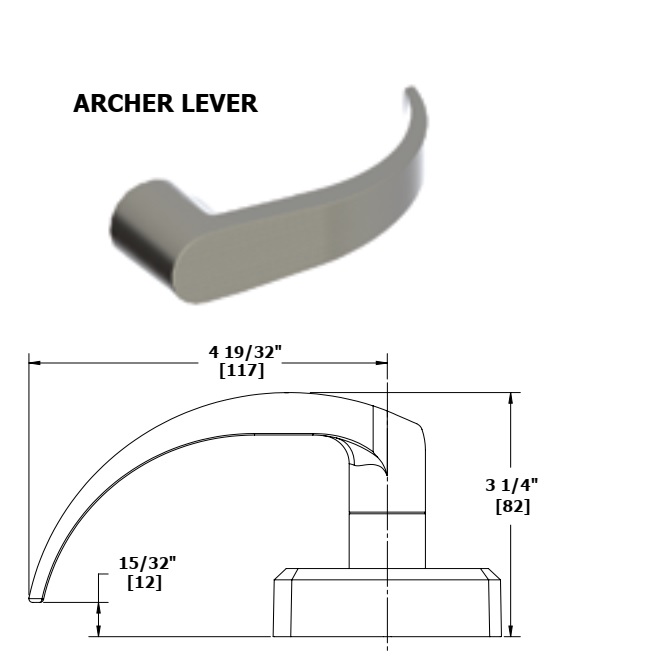

- Archer Contemporary Aesthetic: The ARC lever offers a modern, high-end profile that elevates the appearance of contemporary commercial and executive office designs.
- Fail-Safe Security Logic: The exterior lever is always locked; a key is required for every entry, ensuring restricted areas are never left vulnerable.
- Vandal-Resistant Engineering: The integrated thru-bolt design ensures the hardware remains secure and stable during rigorous daily use in professional facilities.
- Life-Safety Certified: UL/cUL listed for 3-hour fire doors, fulfilling the critical building and safety codes required for modern commercial projects.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | ARC - Archer |
| Series | Hager - 3500 Series |
