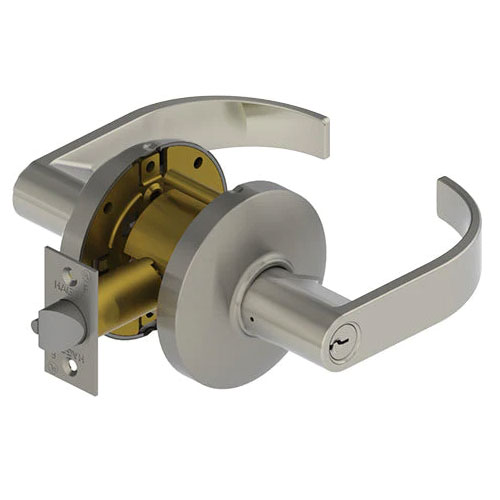

Hager 3550 ARC Grade 2 Office/ Entry Lever Lockset (Push Button)
Function Information:
The Hager 3550 ARC is a heavy-duty, commercial-grade cylindrical lockset designed for versatility in professional environments. As an Office/Entry Function (ANSI F82A), it provides a flexible security solution where the door can be locked or unlocked via an interior push button or an exterior key. Featuring the sophisticated, sweeping Archer (ARC) lever design, this lockset offers a high-end architectural look that is perfect for executive suites, consultation rooms, and main office entrances.
Flexible Security and Occupant Safety
The Hager 3550 is engineered for convenience without sacrificing security. The interior push button allows occupants to quickly secure the door from the inside; however, for maximum safety, the inside lever always allows for free egress. Turning the inside lever or using the outside key instantly releases the push button, preventing accidental lockouts. To further protect the opening, the deadlocking latchbolt is designed to resist forced entry and "shimming" when the door is closed.
Architectural Durability and Full Accessibility
Certified to ANSI/BHMA Grade 2 standards, the Hager 3500 Series features a heavy-gauge steel chassis with a zinc dichromate finish for superior corrosion resistance. The Archer lever is fully ADA compliant, offering an ergonomic grip that is easily operated by all users. With no exposed mounting screws and thru-bolt mounting, the 3550 ARC provides a clean, professional profile that is highly resistant to tampering and vandalism in busy commercial spaces.
Technical Specifications
| Feature | Specification |
| Series | Hager 3500 Series |
| Function | Office / Entry (ANSI F82A) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

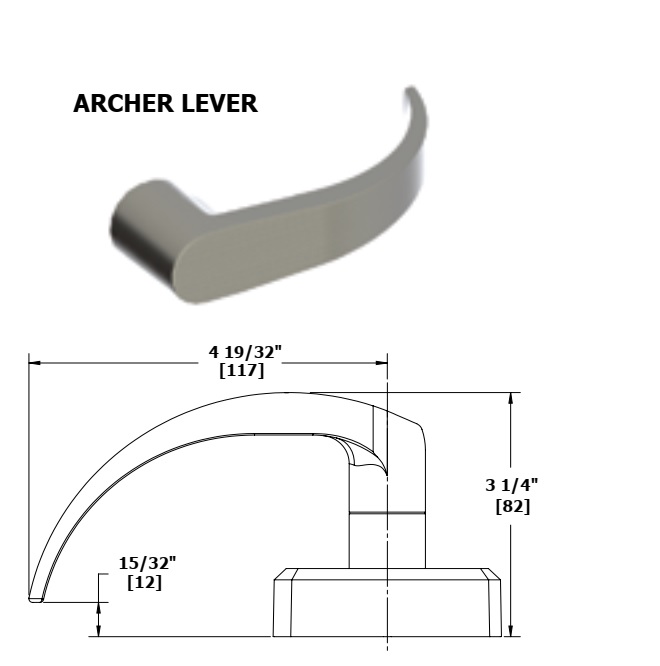

| Lever Style | Archer (ARC) |
| Locking Mechanism | Interior Push Button / Exterior Key |
| Cylinder | 6-Pin Conventional, Schlage C Keyway |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Dual-Action Locking: Offers the convenience of push-button locking for daily office use with the reliability of a keyed exterior for after-hours security.
- Archer Design Aesthetics: Provides a modern, high-end look that elevates the appearance of contemporary commercial buildings.
- Vandal-Resistant Chassis: Features thru bolts for a more secure attachment to the door and a "clutching" mechanism that allows the lever to rotate without breaking while locked.
- Safety Certified: UL/cUL listed for 3-hour fire doors, ensuring the hardware meets all critical building and life-safety codes.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F82A - Office/ Entry |
| Trim Design | ARC - Archer |
| Series | Hager - 3500 Series |
