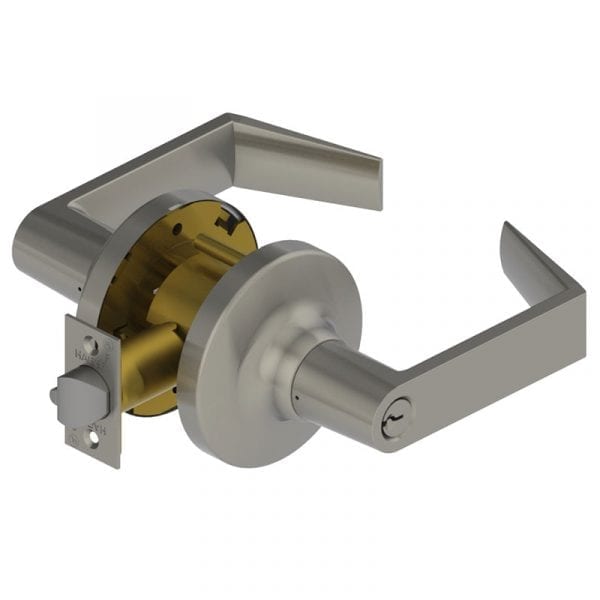

Hager 3482 WTN Grade 1 Institution Lever Lockset
Function Information:
The Hager 3482 WTN is a heavy-duty cylindrical lockset specifically engineered for high-security environments where total access control is mandatory. Operating as an Institution/Asylum Function (ANSI F87), this hardware is designed so that both the interior and exterior levers are fixed at all times. Entry and exit are only possible via a key from either side, making it the premier choice for psychiatric facilities, detention centers, laboratories, and secure pharmaceutical storage. Featuring the ergonomic Withnell (WTN) lever, this lockset delivers maximum security without sacrificing the Grade 1 durability required for million-cycle performance.
Dual-Cylinder Security for Restricted Environments
The Hager 3482 provides an uncompromising level of control. Unlike standard entrance or storeroom locks, the Institution Function ensures that no unauthorized person can operate the door from either side without a physical key. This is critical in facilities where occupant movement must be strictly monitored or restricted for safety. The Withnell lever is fully ADA compliant, ensuring that when authorized personnel utilize a key, the lever offers a comfortable and professional grip that meets all accessibility standards.
Institutional Resilience and Vandal-Resistant Engineering
As part of the Hager 3400 Series, the 3482 WTN is built to exceed ANSI/BHMA Grade 1 standards, surviving over one million test cycles. The chassis is constructed with heavy-gauge steel and zinc dichromate plating for superior corrosion resistance. To maintain security in high-abuse environments, the lock features free-wheeling levers that rotate freely when locked to prevent damage from forced entry. A secure thru-bolt installation ensures the lock remains rigid and perfectly aligned, even under extreme stress.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series |
| Function | Institution / Asylum (ANSI F87) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Extra Heavy Duty) |

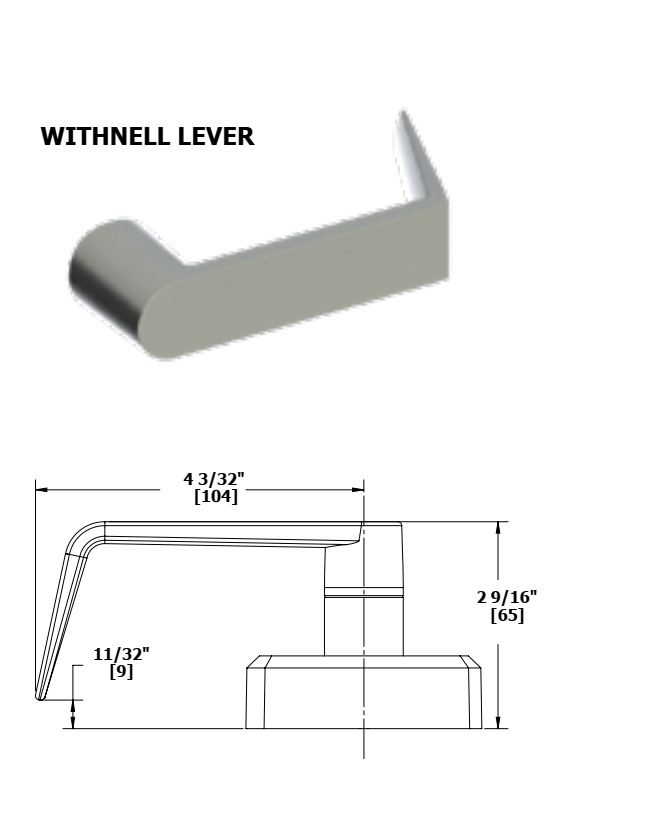

| Lever Style | Withnell (WTN) |
| Cylinder | Dual 6-Pin, C Keyway (Key required for both sides) |
| Locking Type | Both Levers Always Rigid/Fixed |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Warranty | Lifetime Warranty |
Standards, Compliance & Repository Access
To assist with rigorous institutional submittals and facility safety audits, the Hager 3482 WTN meets the following industry certifications. For detailed Installation Templates, Cut Sheets, and Parts Lists, visit our Series Pages:
- Fire Safety: UL/cUL Listed for up to 3-hour fire doors; compliant with NFPA 80.
- Accessibility: Meets ADA requirements and ANSI A117.1 for barrier-free access.
- Windstorm Compliance: Certified for ANSI A250.13 (Severe Windstorm Resistant).
- Vandal Resistance: Equipped with clutching/free-wheeling levers and thru bolts to prevent mechanical failure during attempted forced entry.
Key Product Highlights
- Maximum Dual-Sided Control: Key required for both entry and exit, ensuring total oversight of movement through the opening.
- Classic Withnell Aesthetic: The WTN lever offers a timeless, professional profile that coordinates perfectly with existing institutional hardware.
- Million-Cycle Durability: Engineered for the most abusive environments where reliability is a critical safety requirement.
- Tamper-Proof Construction: No exposed mounting screws and a heavy-duty thru-bolt design prevent unauthorized hardware removal.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC or LFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F87 - Asylum |
| Trim Design | WTN - Withnell |
| Series | Hager - 3400 Series |
