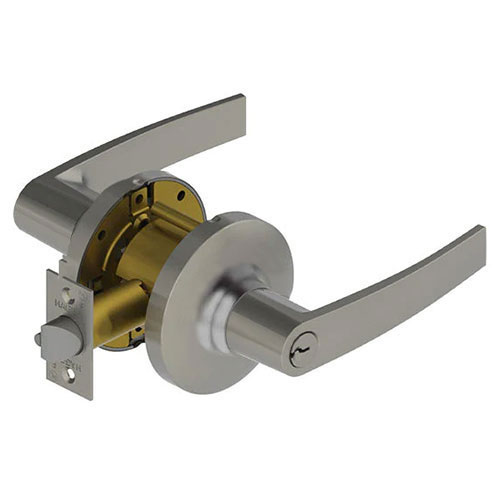

Hager 3482 AUG Grade 1 Institution Lever Lockset
Function Information:
The Hager 3482 AUG is an industrial-strength cylindrical lockset specifically engineered for maximum-security environments where total access control is mandatory. Operating as an Institution/Asylum Function (ANSI F87), this hardware is designed so that both the interior and exterior levers are rigid at all times. Entry and exit are only possible via a physical key from either side, making it the premier choice for psychiatric facilities, detention centers, high-security laboratories, and secure pharmaceutical storage. Featuring the bold, linear August (AUG) lever design, this lockset delivers an uncompromising level of security with a modern, minimalist architectural aesthetic.
Absolute Access Control for High-Risk Environments
The Hager 3482 provides the highest level of oversight available in a cylindrical lock. Unlike standard entrance or storeroom functions, the Institution Function ensures that no unauthorized person can move through the opening from either direction without a physical key. This is a critical safety requirement for facilities where occupant movement must be strictly restricted or monitored. The August lever is fully ADA compliant, providing a substantial, ergonomic rectangular profile that ensures authorized staff can operate the heavy-duty mechanism comfortably and reliably.
Institutional Resilience and Vandal-Resistant Engineering
As a flagship model in the Hager 3400 Series, the 3482 AUG is built to exceed ANSI/BHMA Grade 1 standards, surviving over one million test cycles. The internal chassis is constructed with high-strength steel and zinc dichromate plating for superior corrosion resistance. To prevent mechanical failure in high-abuse settings, the lock features a clutching/free-wheeling lever mechanism that allows the handle to rotate freely when locked, absorbing impact and preventing damage from forced entry. A secure thru-bolt installation ensures a rigid, permanent bond to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series |
| Function | Institution / Asylum (ANSI F87) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Extra Heavy Duty) |

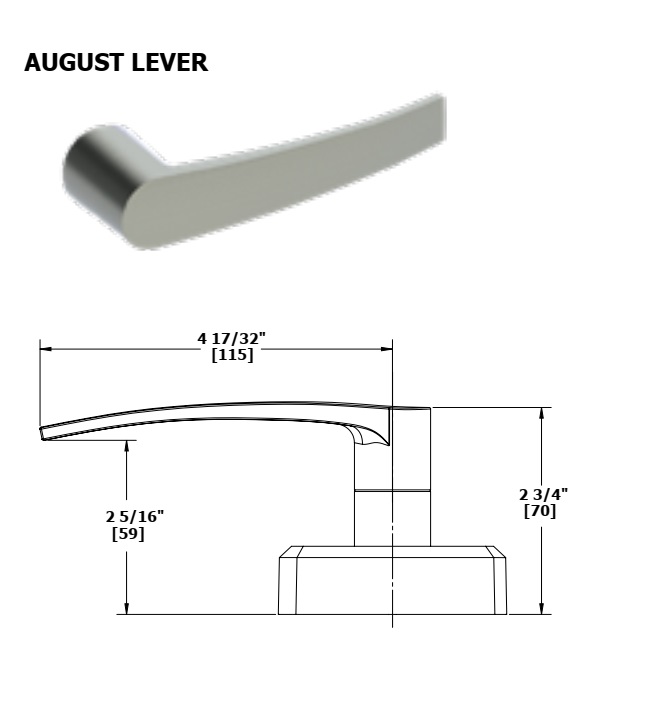

| Lever Style | August (AUG) |
| Cylinder | Dual 6-Pin, C Keyway (Standard); LFIC/SFIC Options Available |
| Locking Type | Both Levers Always Rigid/Fixed |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
Standards, Compliance & Repository Access
To assist with rigorous institutional submittals and facility safety audits, the Hager 3482 AUG meets the following industry certifications. For detailed Installation Templates, Cut Sheets, and Parts Lists, visit our Series Pages:
- Fire Safety: UL/cUL Listed for up to 3-hour fire doors; compliant with NFPA 80.
- Accessibility: Meets ADA requirements and ANSI A117.1 for barrier-free access.
- Windstorm Compliance: Certified for ANSI A250.13 (Severe Windstorm Resistant).
- Tamper Resistance: Equipped with thru bolts and concealed fasteners to prevent unauthorized hardware removal or tampering.
Key Product Highlights
- Maximum Dual-Sided Control: Key required for both entry and exit, ensuring total oversight of movement through the opening in sensitive zones.
- Modern August Aesthetic: The AUG lever offers a crisp, professional profile that coordinates perfectly with contemporary commercial and institutional interiors.
- Million-Cycle Durability: Engineered for the most demanding environments where hardware failure is not an option.
- Vandal-Resistant Chassis: The heavy-duty thru-bolt design ensures the lock remains centered and secure even under extreme physical stress.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC or LFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F87 - Asylum |
| Trim Design | AUG- August |
| Series | Hager - 3400 Series |
