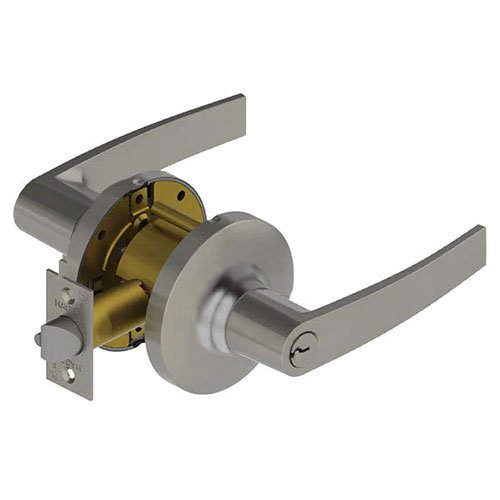

Hager 3480 AUG Grade 1 Storeroom Lever Lockset
The Hager 3480 AUG is an industrial-strength cylindrical lockset engineered for maximum security in restricted-access commercial environments. Operating as a Storeroom Function (ANSI F86), this hardware is the premier choice for securing IT closets, electrical rooms, pharmaceutical storage, and any space where unauthorized entry must be strictly prohibited. Featuring the bold, linear August (AUG) lever design, this lockset combines Grade 1 heavy-duty durability with a modern, minimalist architectural aesthetic.
Absolute Security with Controlled Access
The Hager 3480 is designed for "always-locked" peace of mind. The exterior lever is fixed and remains locked at all times; entry is only possible via a key, which retracts the latchbolt. This eliminates the risk of a sensitive door being accidentally left unlocked by an occupant. For critical life-safety compliance, the interior lever always allows for free egress, providing an immediate and unobstructed exit path for personnel at all times.
Institutional Engineering and Contemporary Design
As a flagship model in the Hager 3400 Series, the 3480 AUG is built to exceed one million test cycles, far outperforming standard commercial hardware. The August lever is fully ADA compliant, offering a crisp, rectangular profile that provides a substantial grip and meets modern accessibility standards. To ensure a professional finish and superior resistance to vandalism, the lock features concealed mounting screws and is secured via a rugged thru-bolt installation, keeping the chassis perfectly aligned under the stress of 24/7 high-traffic use.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series |
| Function | Storeroom (ANSI F86) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Extra Heavy Duty) |

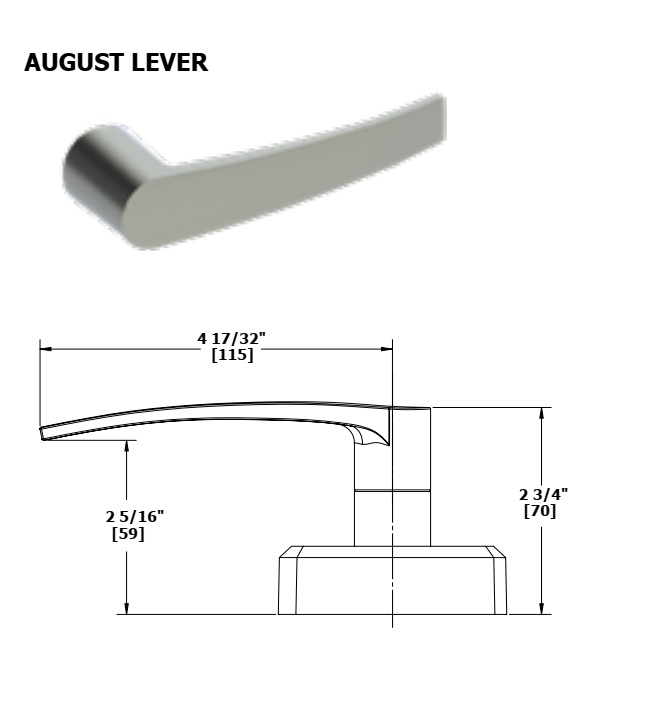

| Lever Style | August (AUG) |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Locking Mechanism | Fixed Exterior / Key Entry Only |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Handing | Non-Handed (Fully Reversible) |
Standards, Compliance & Repository Access
To support architects and facility managers with technical submittals and code adherence, the Hager 3480 AUG meets the following industry benchmarks. For detailed Cut Sheets, Installation Templates, and Parts Lists, visit our Series Pages:
- Fire Safety: UL/cUL Listed for up to 3-hour fire doors; compliant with NFPA 80.
- Accessibility: Meets ADA requirements and ANSI A117.1 for barrier-free accessibility.
- Windstorm Rating: Certified for ANSI A250.13 (Severe Windstorm Resistant).
- Vandal Resistance: Equipped with thru bolts and a heavy-duty chassis to prevent hardware tampering or loosening.
Key Product Highlights
- Constant Security: Exterior lever is always locked; key is required for every entry to prevent unauthorized access.
- Modern August Aesthetic: The AUG lever provides a clean, professional profile that coordinates perfectly with minimalist commercial interiors and contemporary architecture.
- Institutional Longevity: Engineered for a lifecycle of over one million cycles in demanding, high-traffic facilities.
- Vandal-Resistant Chassis: Utilizing concealed fasteners and robust thru-bolt mounting to maintain structural integrity and prevent lever sag.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC or LFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | AUG- August |
| Series | Hager - 3400 Series |
