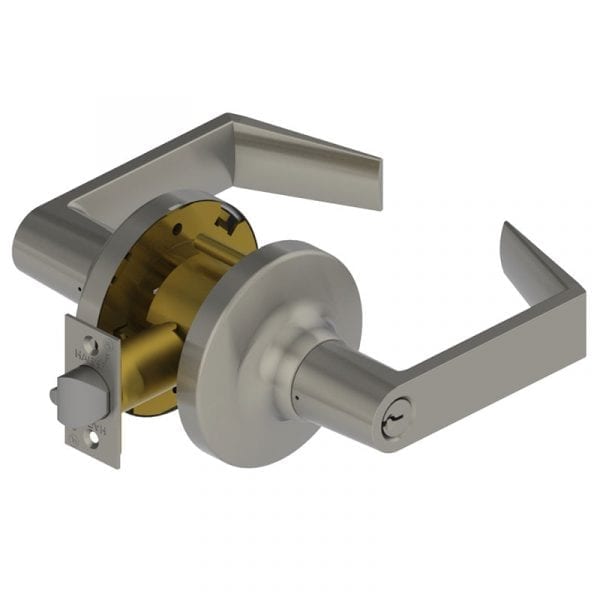

Hager 3473 WTN Grade 1 Corridor Lever Lockset
Function Information:
The Hager 3473 WTN is a heavy-duty cylindrical lockset engineered for the specialized security requirements of high-occupancy buildings. Operating as a Corridor Function (ANSI F90), this hardware is the gold standard for dormitories, public housing, and institutional corridors. Featuring the classic, ergonomic Withnell (WTN) lever design, this lockset provides a perfect balance of user comfort and the Grade 1 "extra heavy-duty" performance required for million-cycle environments.
Dual-Access Security with Fail-Safe Egress

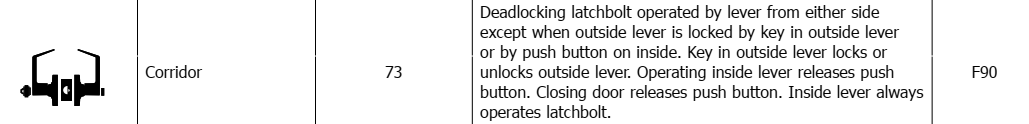

The Hager 3473 is designed for spaces that require versatile locking options. The exterior lever can be locked or unlocked via key, or locked from the interior using a push button. A critical safety feature of the Corridor Function is the automatic release: turning the inside lever or closing the door immediately releases the interior push button, preventing accidental lockouts and ensuring the door is ready for the next occupant. For life-safety compliance, the interior lever always provides free egress, allowing for an immediate exit at all times.
Institutional Resilience and Universal Accessibility
Certified to ANSI/BHMA Grade 1, the Hager 3400 Series [link] is built to withstand over one million cycles, making it the premier choice for hospitals, universities, and military housing. The Withnell lever is fully ADA compliant, offering a neutral profile that meets strict accessibility codes. To ensure a professional, vandal-resistant finish, the 3473 WTN features no exposed mounting screws and utilizes a secure thru-bolt installation for a rigid, permanent bond to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series [link] |
| Function | Corridor / Dormitory (ANSI F90) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Extra Heavy Duty) |

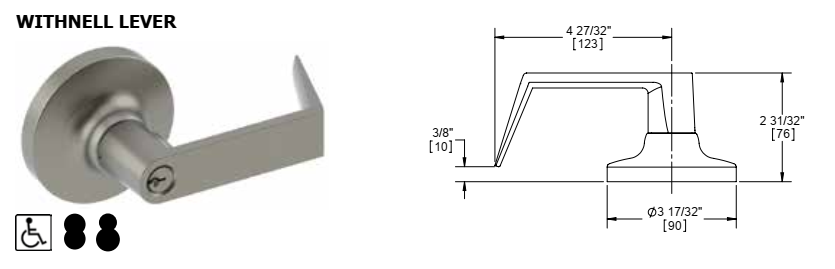

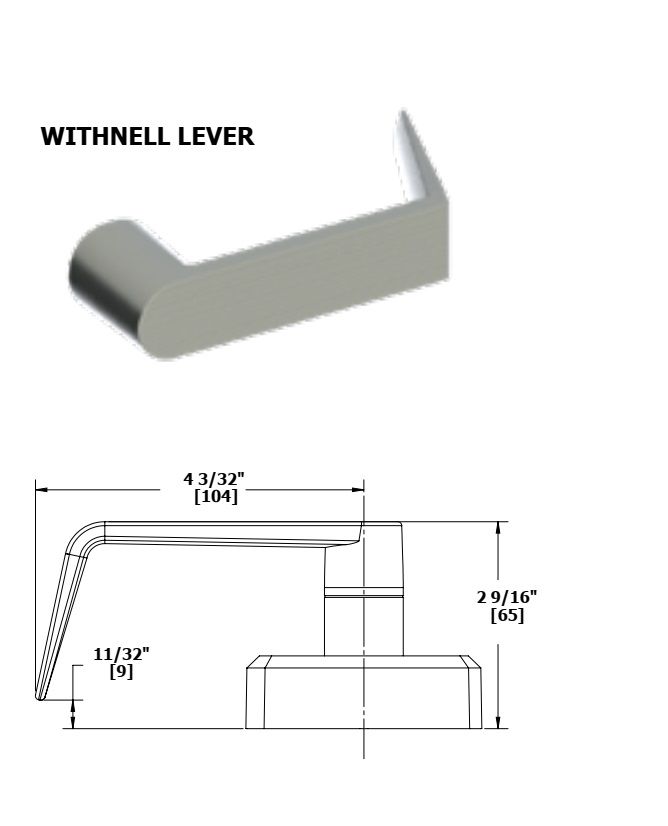

| Lever Style | Withnell (WTN) |
| Cylinder | 6-Pin, C Keyway (Standard); LFIC/SFIC Options Available |
| Locking Mechanism | Exterior Key / Interior Push Button |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Handing | Non-Handed (Fully Reversible) |
Standards, Compliance & Repository Access
To support facility managers and architects with project submittals, the Hager 3473 WTN meets the following industry benchmarks. For detailed Cut Sheets, Installation Templates, and Parts Lists, visit our Series Pages [link]:
- Fire Safety: UL/cUL Listed for up to 3-hour fire doors; compliant with NFPA 80.
- Accessibility: Meets ADA requirements and ANSI A117.1 for barrier-free accessibility.
- Windstorm Compliance: Certified for ANSI A250.13 (Severe Windstorm Resistant).
- Vandal Resistance: Includes clutching/free-wheeling levers and thru bolts to prevent damage from forced rotation.
Key Product Highlights
- Auto-Release Technology: Interior lever rotation or door closure automatically unlocks the interior push button to prevent lockouts.
- Ergonomic Withnell Design: The WTN lever offers a timeless, professional profile that coordinates seamlessly with existing commercial hardware.
- Institutional Longevity: Engineered to outperform standard commercial locks in high-frequency 24/7 environments.
- Secure Installation: Utilizes concealed fasteners and heavy-duty thru bolts to ensure the chassis remains centered and secure.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC or LFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F90 - Corridor |
| Trim Design | WTN - Withnell |
| Series | Hager - 3400 Series |
