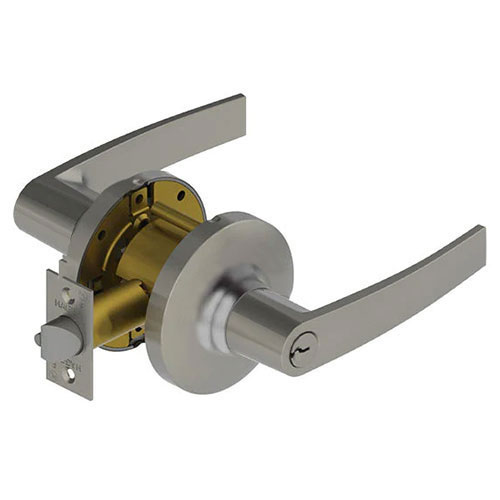

Hager 3470 AUG Grade 1 Classroom Lever Lockset
Function Information:
The Hager 3470 AUG is an industrial-grade cylindrical lockset specifically engineered for the rigorous demands of educational institutions, government buildings, and commercial facilities. Operating as a Classroom Function (ANSI F84), this hardware is designed for staff-controlled security: the exterior lever is locked or unlocked by key, while the interior lever remains active at all times for immediate exit. Featuring the bold, linear August (AUG) lever, this lockset delivers a clean, modern architectural aesthetic without compromising on Grade 1 heavy-duty performance.
Tactical Security Management for Public Spaces
In a classroom or public office setting, controlling access is a matter of safety. The Hager 3470 ensures that only key-holders can lock the door, preventing unauthorized "nuisance locking" from the inside. This is a critical feature for facility managers maintaining strict security protocols. For life-safety compliance, the inside lever always provides free egress, ensuring occupants can exit instantly in an emergency, regardless of whether the outside is locked.
Engineered for Longevity and Accessibility
As part of the Hager 3400 Series [link], the 3470 AUG is built to exceed one million cycles, far outperforming standard commercial hardware. The August lever is fully ADA compliant, featuring a rectangular profile that is easy to grip and operate for all users. The internal chassis is protected by zinc dichromate plating for maximum corrosion resistance, while the secure thru-bolt installation ensures a rigid, permanent bond to the door, preventing the lever from sagging or loosening over time.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series [link] |
| Function | Classroom (ANSI F84) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Heavy Duty) |

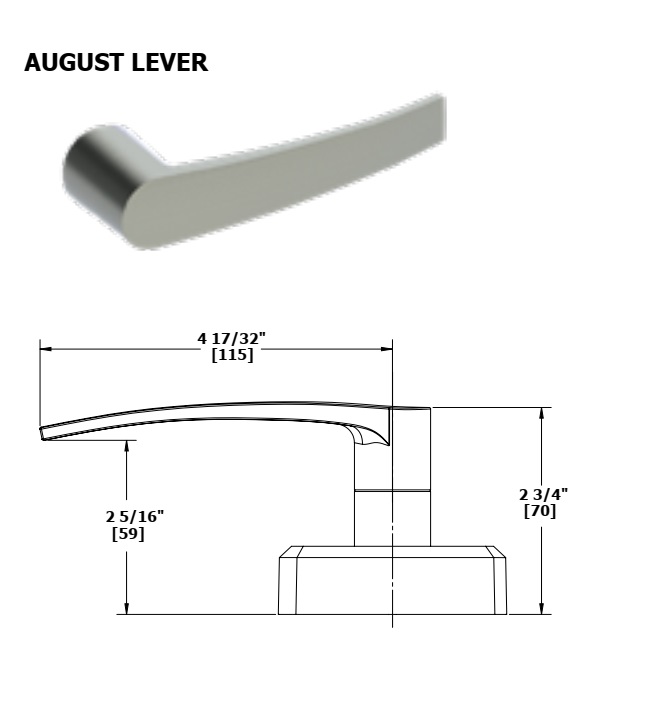

| Lever Style | August (AUG) |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Handing | Non-Handed / Fully Reversible |
| Latchbolt | 1/2" Throw, Stainless Steel |
Standards, Compliance & Repository Access
To simplify the submittal process for architects and contractors, the Hager 3470 AUG meets the following industry certifications. For detailed Cut Sheets, Installation Templates, and Parts Lists, please visit our Series Pages [link]:
- Fire Safety: UL/cUL Listed for up to 3-hour fire doors; compliant with NFPA 80.
- Accessibility: Meets ADA requirements and ANSI A117.1 for barrier-free accessibility.
- Windstorm Rating: Certified for ANSI A250.13 (Severe Windstorm Resistant).
- Vandal Resistance: Utilizing concealed fasteners and robust thru bolts to resist tampering and forced entry.
Key Product Highlights
- Staff-Centric Locking: Key-controlled exterior ensures that security remains in the hands of authorized personnel.
- Modern August Aesthetic: The AUG lever provides a crisp, professional profile that coordinates perfectly with contemporary commercial interiors.
- Institutional Durability: Engineered for high-traffic environments where hardware failure is not an option.
- Code-Compliant Safety: Provides a permanent path for free egress, fulfilling critical life-safety requirements for public buildings.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC or LFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F84 - Classroom |
| Trim Design | AUG- August |
| Series | Hager - 3400 Series |
