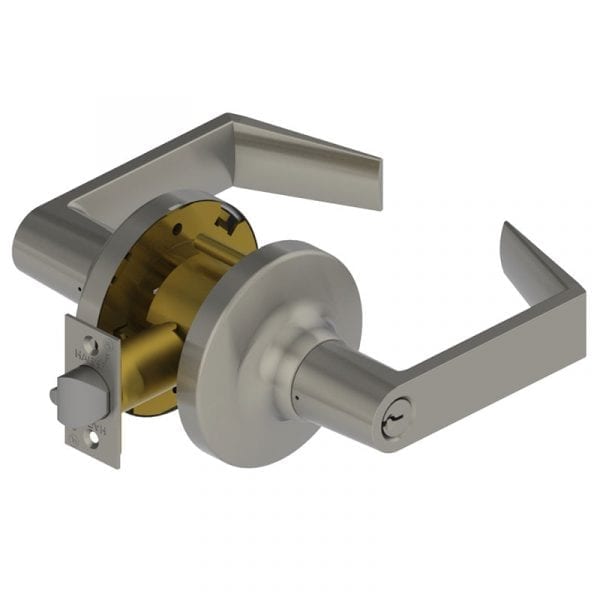

Hager 3450 WTN Grade 1 Office/ Entry Lever Lockset (Push Button)
Function Information:
The Hager 3450 WTN is an industrial-strength cylindrical lockset designed for maximum security and durability in the most demanding commercial environments. As an Entrance/Office Function (ANSI F81), this lock is ideal for private offices, consultation rooms, and common entry points. It features a versatile interior push-button locking mechanism and the classic, ergonomic Withnell (WTN) lever design, combining premium Grade 1 performance with the proven reliability of the Hager 3400 Series.
Versatile Security and Controlled Access
The Hager 3450 is engineered to provide facility managers and business owners with flexible security options. Depressing the interior push button locks the exterior lever, requiring a key for entry. For added convenience, the lock can be set to "remain locked" or "unlocked" depending on whether the button is pushed or turned. The inside lever always allows for free egress, ensuring that occupants can exit quickly and safely at all times, fulfilling critical life-safety requirements.
Institutional Engineering and Universal Accessibility
Certified to ANSI/BHMA Grade 1, the Hager 3400 Series [link] is built to withstand over one million cycles, making it the premier choice for hospitals, schools, and high-traffic public facilities. The Withnell lever is fully ADA compliant, offering a neutral, professional profile that is easily operated by all users. To ensure a professional finish and superior resistance to vandalism, the 3450 WTN features no exposed mounting screws and utilizes a secure thru-bolt installation for a rigid, permanent bond to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series [link] |
| Function | Entrance/Office (ANSI F81) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Heavy Duty) |

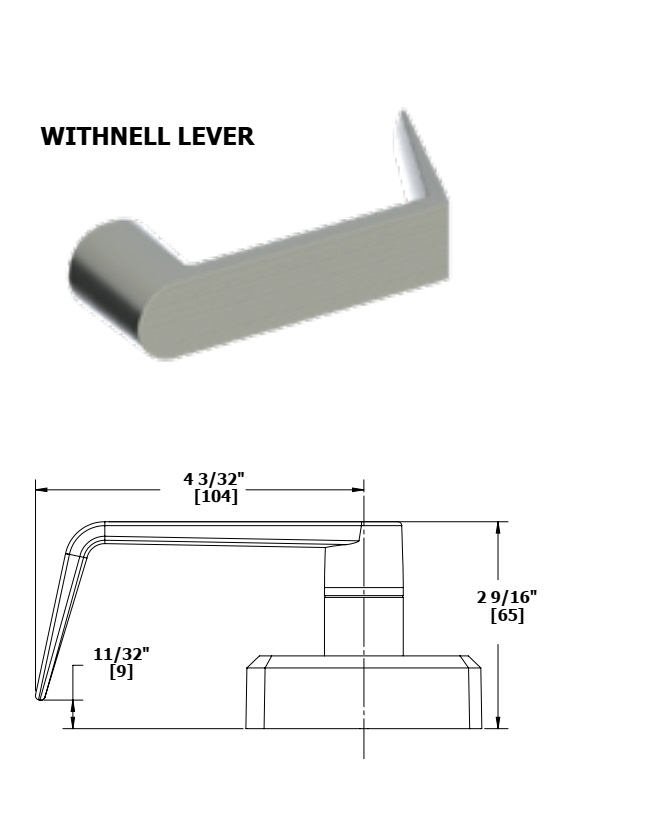

| Lever Style | Withnell (WTN) |
| Cylinder | 6-Pin, C Keyway (Standard) |
| Locking Mechanism | Interior Push Button / Key Exterior |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Grade 1 Certified Durability: Specifically engineered for the highest traffic institutional applications, providing a long lifecycle in 24/7 facilities.
- Ergonomic Withnell Aesthetic: The WTN lever offers a timeless, professional profile that coordinates perfectly with existing hardware in most commercial buildings.
- Vandal-Resistant Chassis: Integrated thru bolts and concealed fasteners provide a robust barrier against hardware tampering and accidental loosening.
- Code-Compliant Safety: UL/cUL listed for 3-hour fire doors, fulfilling the critical building and life-safety codes required for commercial projects.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Cylinder Options | SCC - Schlage C Keyway or SFIC or LFIC |
| Brand | Hager |
| ANSI Cyl Lock Function | F82A - Office/ Entry |
| Trim Design | WTN - Withnell |
| Series | Hager - 3400 Series |
