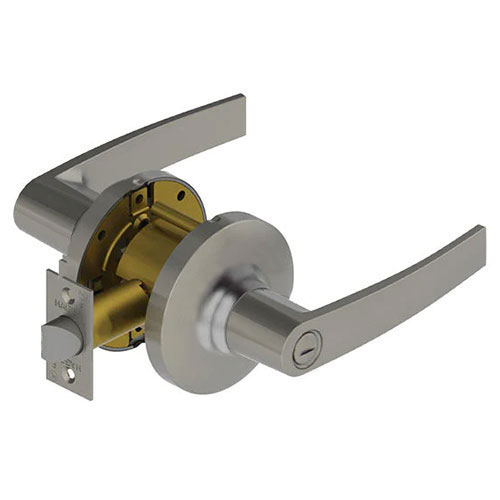

Hager 3440 AUG Grade 1 Privacy Lever Latchset
Function Information:
The Hager 3440 AUG is an industrial-strength cylindrical latchset designed for maximum privacy and durability in the most demanding commercial environments. As a Privacy Function (ANSI F76), this lock is ideal for restrooms, dressing rooms, and private offices. It features a simple interior push-button locking mechanism and the bold, rectangular August (AUG) lever design, combining premium Grade 1 performance with the modern architectural aesthetic of the Hager 3400 Series.
Reliable Privacy with Emergency Accessibility
The Hager 3440 is engineered to provide occupants with peace of mind. Depressing the interior push button locks the exterior lever, while the inside lever always allows for free egress, ensuring a quick exit. In the event of an emergency, the exterior lever features an emergency release that can be operated from the outside with a small tool or flat blade, providing critical access for facility staff or emergency responders.
Institutional Engineering and Universal Accessibility
Certified to ANSI/BHMA Grade 1, the Hager 3400 Series [link] is built to withstand over one million cycles, making it the premier choice for hospitals, schools, and high-traffic public facilities. The August lever is fully ADA compliant, offering a square-profile ergonomic grip that is easily operated by all users. To ensure a professional finish and superior resistance to vandalism, the 3440 AUG features no exposed mounting screws and utilizes a secure thru-bolt installation for a rigid, permanent bond to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series [link] |
| Function | Privacy (ANSI F76) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Heavy Duty) |

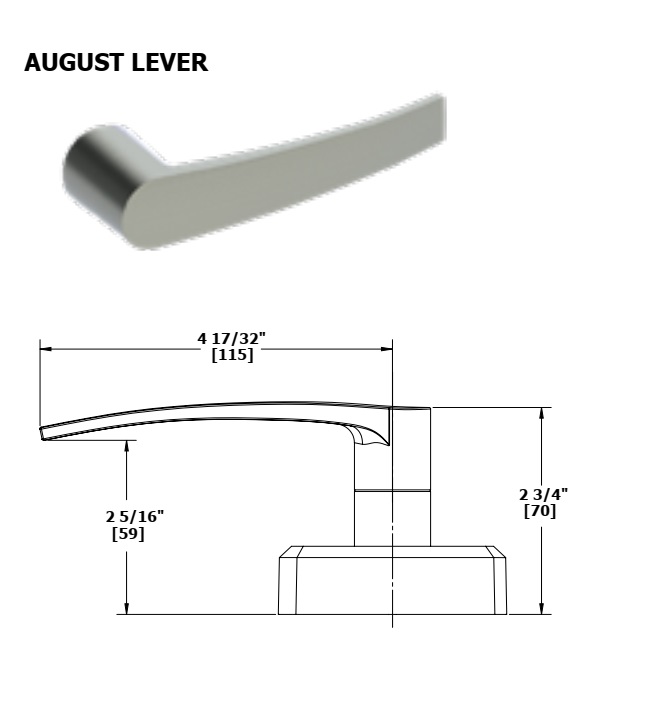

| Lever Style | August (AUG) |
| Locking Mechanism | Interior Push Button |
| Emergency Access | Exterior Emergency Release Slot |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Grade 1 Certified Durability: Specifically engineered for the highest traffic institutional applications, providing a long lifecycle in 24/7 facilities.
- Modern August Aesthetic: The AUG lever offers a clean, linear profile that coordinates perfectly with contemporary hardware and minimalist commercial interiors.
- Vandal-Resistant Chassis: Integrated thru bolts and concealed fasteners provide a robust barrier against hardware tampering and accidental loosening.
- Code-Compliant Safety: UL/cUL listed for 3-hour fire doors, fulfilling the critical building and life-safety codes required for commercial projects.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Brand | Hager |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | AUG- August |
| Series | Hager - 3400 Series |
| Occupancy Indicator | No |
