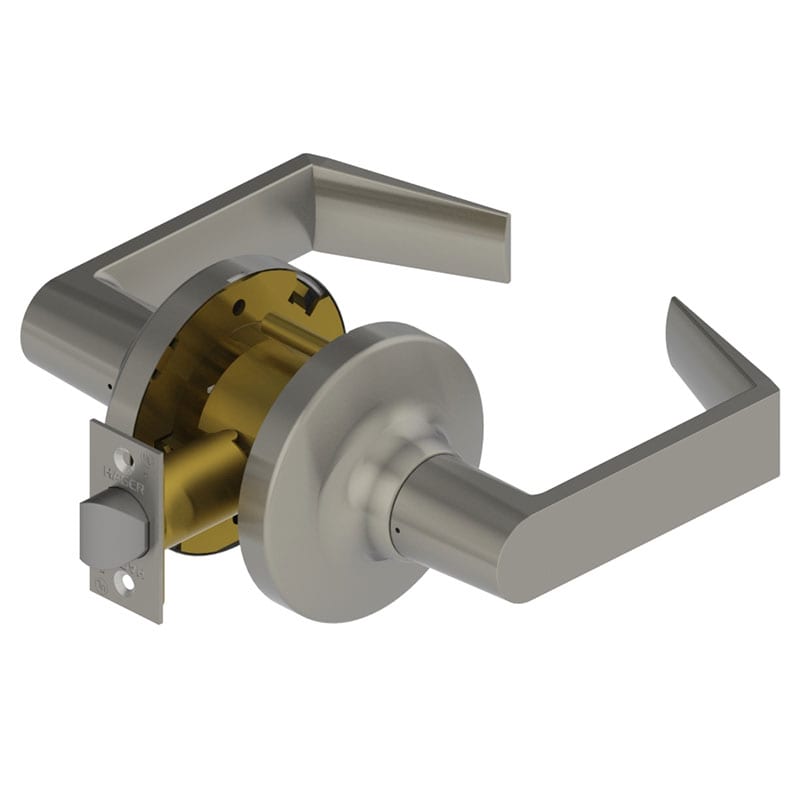

Hager 3410 WTN Grade 1 Passage Lever Latchset
Function Information:
The Hager 3410 WTN is an industrial-grade cylindrical latchset designed for maximum durability in the most demanding environments. As a Passage Function (ANSI F75), both levers are always active, providing immediate access from either side without the need for a key or locking mechanism. Featuring the timeless, ergonomic Withnell (WTN) lever design, this latchset is the gold standard for high-traffic areas such as hospital corridors, school hallways, and commercial common areas where ease of movement and long-term reliability are paramount.
Institutional Strength for High-Traffic Openings
Part of the Hager 3400 Series, the 3410 is built to exceed the most rigorous performance standards. Certified to ANSI/BHMA Grade 1, it is engineered to withstand over one million cycles, making it ideal for facilities that never close. The non-handed design allows for seamless installation on any door swing, and the heavy-duty spring cages prevent lever sag even after years of constant use.
Rugged Engineering and Universal Accessibility
The Hager 3410 features a robust steel, zinc dichromate treated chassis for exceptional corrosion resistance. The Withnell lever is fully ADA compliant, offering an ergonomic profile that allows for easy operation by all users. To ensure a professional finish and superior resistance to vandalism, this latchset features no exposed mounting screws and utilizes a secure thru-bolt installation, creating a rigid, permanent bond to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series |
| Function | Passage (ANSI F75) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Heavy Duty) |

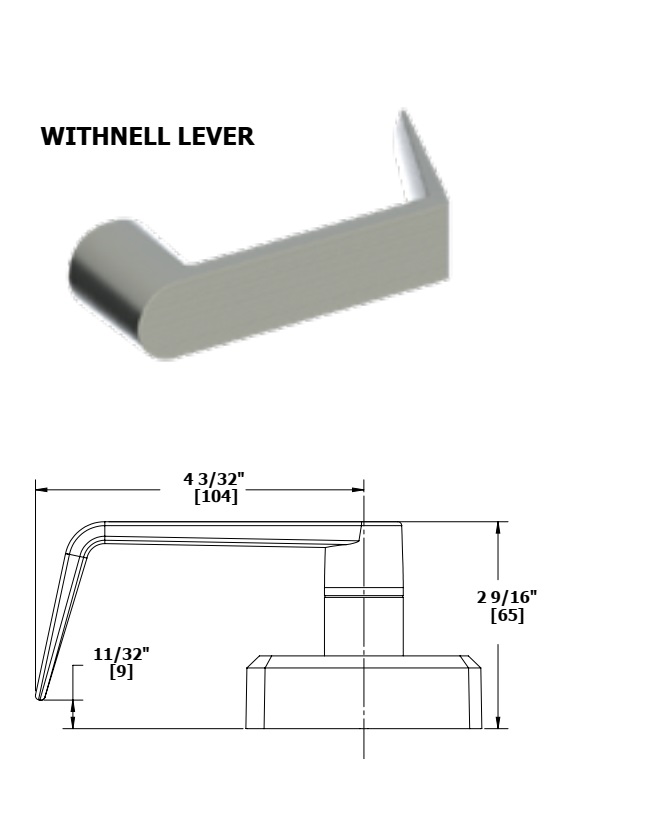

| Lever Style | Withnell (WTN) |
| Locking | None (Levers Always Active) |
| Chassis | Cylindrical, Steel (Zinc Dichromate Finish) |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Grade 1 Certified Performance: Designed for the highest level of commercial use, providing superior longevity in schools, hospitals, and public buildings.
- Ergonomic Withnell Aesthetic: The WTN lever offers a neutral, professional profile that coordinates with existing hardware in almost any institutional setting.
- Vandal-Resistant Chassis: Integrated thru bolts and concealed fasteners provide a robust barrier against hardware tampering and loosening.
- Code-Compliant Safety: UL/cUL listed for 3-hour fire doors, meeting the stringent life-safety and building code requirements for commercial facilities.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Brand | Hager |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | WTN - Withnell |
| Series | Hager - 3400 Series |
