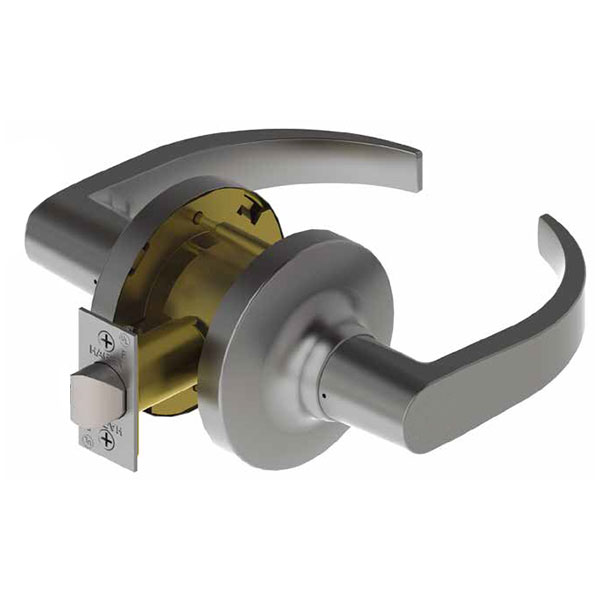

Hager 3410 ARC Grade 1 Passage Lever Latchset
Function Information:
The Hager 3410 ARC is an industrial-strength cylindrical latchset designed for maximum durability in high-frequency commercial environments. As a Passage Function (ANSI F75), both levers are always active, providing unhindered access from either side of the door. Featuring the elegant, sweeping Archer (ARC) lever design, this latchset combines premium architectural aesthetics with the unmatched institutional strength of the Hager 3400 Series. It is the ideal choice for high-traffic corridors, common areas, and office transitions where security is not required but reliability is paramount.
Institutional Grade Performance
The Hager 3410 is built to exceed the most rigorous industry standards. Certified to ANSI/BHMA Grade 1, it is engineered to withstand over one million cycles, making it suitable for hospitals, universities, and government buildings. The heavy-duty spring cages are specifically designed to prevent lever sag over time, ensuring the Archer lever maintains its clean, horizontal profile even after years of constant use.
Architectural Build and Full Accessibility
Constructed with a heavy-gauge steel chassis and a zinc dichromate finish for superior corrosion resistance, the 3410 ARC is designed for longevity. The Archer lever is fully ADA compliant, offering an ergonomic curved grip that is easily operated by all users. To ensure a professional finish and deter tampering, this latchset features no exposed mounting screws and utilizes a secure thru-bolt installation, creating a rigid and permanent bond to the door.
Technical Specifications
| Feature | Specification |
| Series | Hager 3400 Series |
| Function | Passage (ANSI F75) |
| Grade | ANSI/BHMA A156.2 Grade 1 (Heavy Duty) |

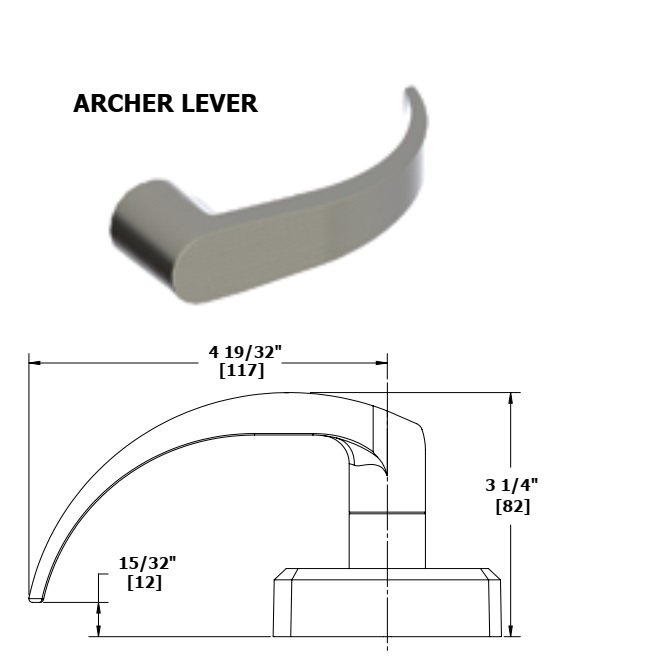

| Lever Style | Archer (ARC) |
| Locking | None (Both Levers Always Active) |
| Chassis | Cylindrical, Steel (Zinc Dichromate Treated) |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |
Key Product Highlights
- Archer Contemporary Aesthetic: The ARC lever provides a modern, high-end profile that complements contemporary commercial and executive office designs.
- Grade 1 Certified Durability: Specifically engineered for the highest traffic applications, ensuring a long lifecycle and reduced maintenance costs.
- Vandal-Resistant Engineering: The use of thru bolts and concealed fasteners provides a robust barrier against hardware tampering and loosening.
- Life-Safety Certified: UL/cUL listed for 3-hour fire doors, fulfilling the critical building and safety codes required for modern professional facilities.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 625 - US26 Polish Chrome |
| Brand | Hager |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | ARC - Archer |
| Series | Hager - 3400 Series |
