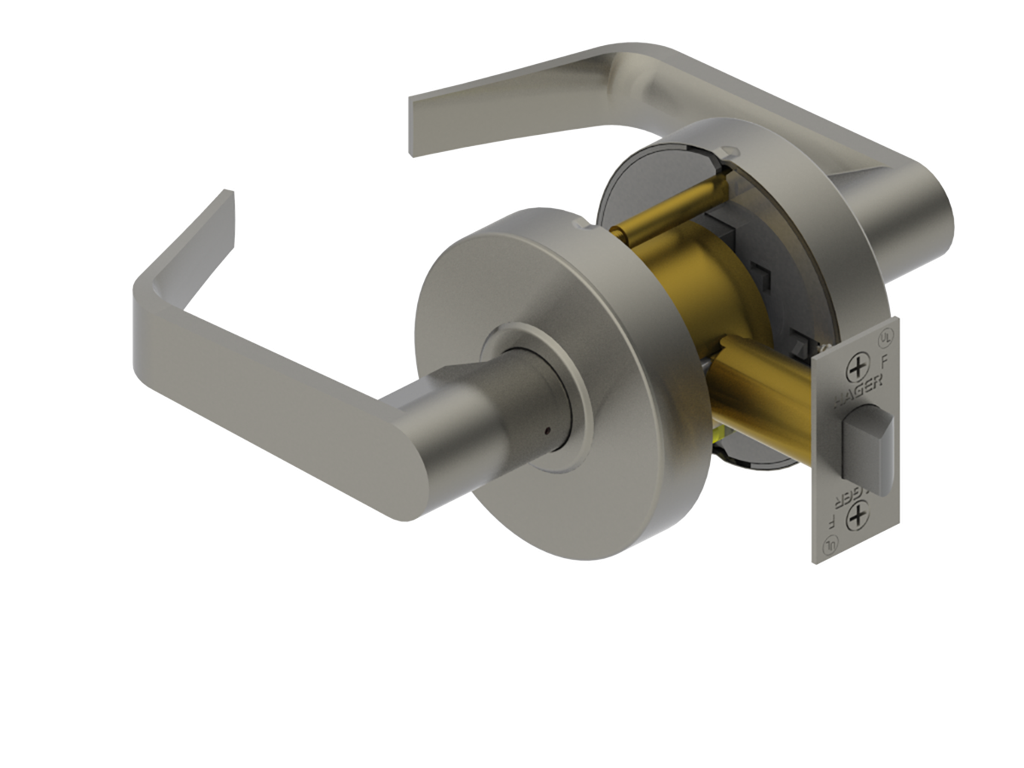

Hager 2510 WTN Grade 2 Passage Lever Latchset
Function Information:
The Hager 2510 WTN is a heavy-duty, standard-grade commercial cylindrical lock designed for reliability and ease of use in high-traffic environments. As a Passage Function (ANSI F75), it is ideal for interior doors that require easy access without locking, such as hallways, closets, and common areas. Featuring the popular Withnell (WTN) lever design, this latchset combines modern aesthetics with a robust build that meets rigorous ANSI/BHMA Grade 2 standards.
Built for Performance and Compliance
Engineered for the demands of standard-duty commercial applications, the Hager 2510 is UL/cUL listed for up to 3-hour fire-rated doors. Its non-handed design allows for flexible installation on both left and right-handed doors, while the ADA-compliant lever ensures accessibility for all users. The lock chassis is constructed from heavy-gauge steel with a zinc dichromate finish for superior corrosion resistance, ensuring long-term operation even in demanding environments.
Sleek, Secure Installation
The Hager 2500 Series is recognized for its clean appearance, utilizing a design with no exposed mounting screws. This not only enhances the security of the lock by making it more tamper-resistant but also provides a professional, streamlined look on the door. The standard ASA strike and stainless steel latchbolt with a 1/2" throw ensure a secure fit and smooth latching action every time.

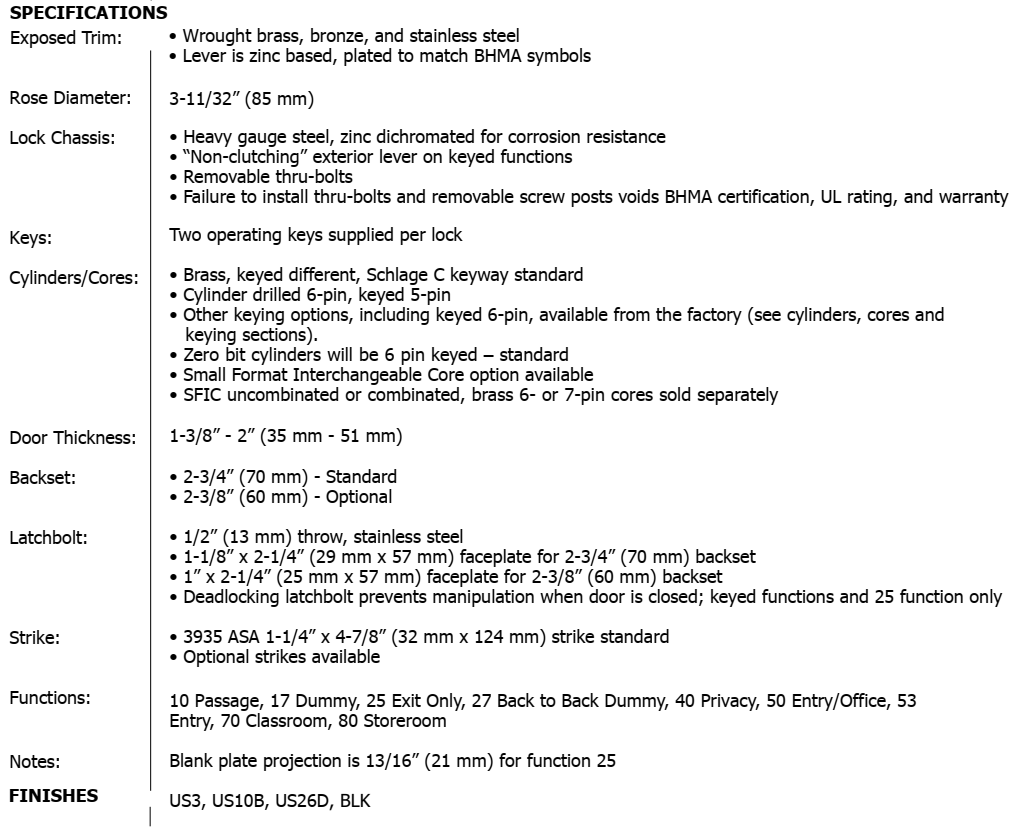

Technical Specifications
| Feature | Specification |
| Series | Hager 2500 Series |
| Function | Passage (ANSI F75) |
| Grade | ANSI/BHMA A156.2 Grade 2 |

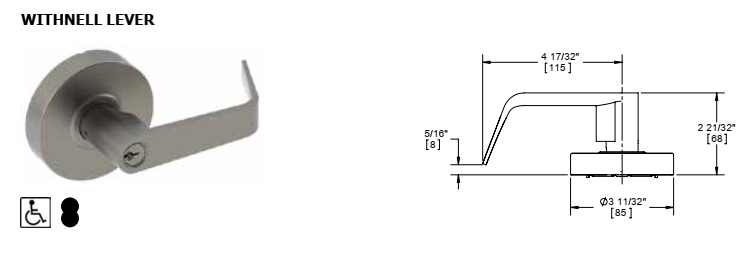

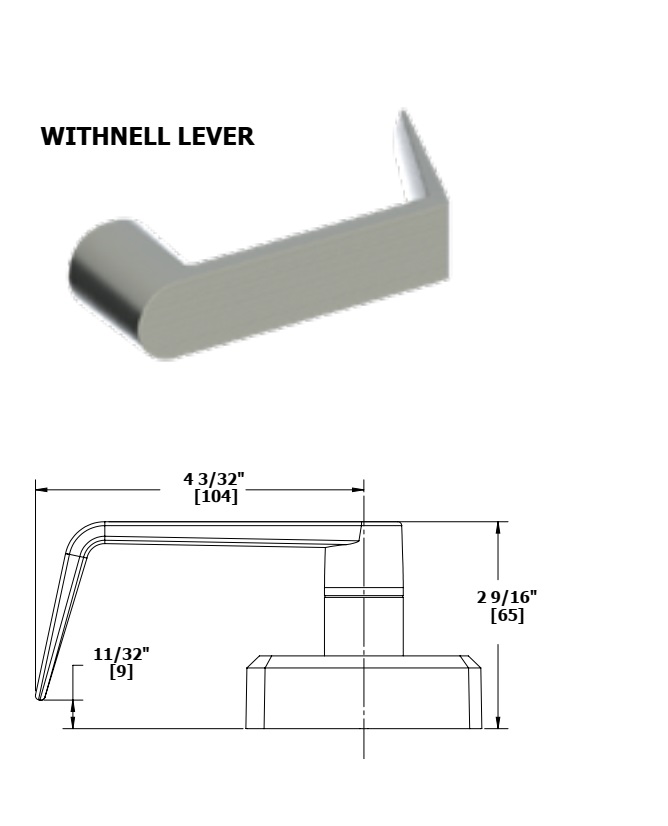

| Lever Style | Withnell (WTN) |
| Material | Zinc-based lever; Stainless steel rose |
| Door Thickness | 1-3/8" to 2" (35 mm - 51 mm) |
| Backset | 2-3/4" (Standard) or 2-3/8" (Optional) |
| Strike | 1-1/4" x 4-7/8" ASA Strike (Standard) |
| Fire Rating | UL/cUL Listed up to 3 hours |
| Accessibility | ADA Compliant (ANSI A117.1) |

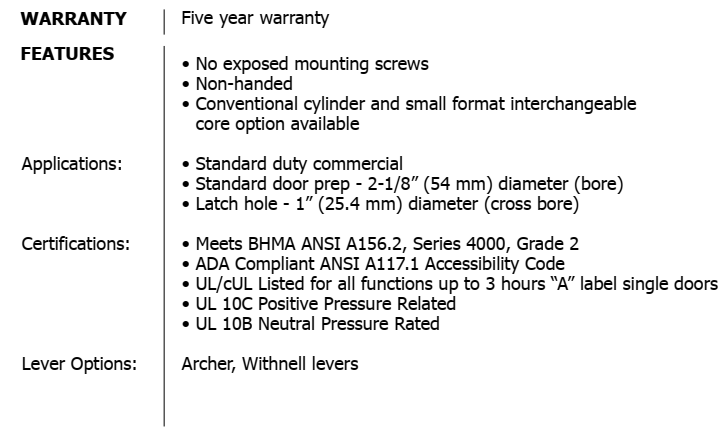

| Warranty | 5-Year Limited Warranty |
Key Product Highlights
- Universal Handing: Non-handed levers allow for easy installation on any door swing.
- Tamper-Resistant: Concealed mounting screws provide a cleaner look and extra protection against unauthorized removal.
- Fire Rated Safety: Certified for use on fire-rated doors, providing essential safety for commercial building codes.
- Architectural Finish: Available in professional finishes like US26D Satin Chrome to match existing building hardware.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass |
| Backset | 2-3/4" Backset |
| Brand | Hager |
| ANSI Cyl Lock Function | F75 - Passage |
| Trim Design | WTN - Withnell |
| Series | Hager - 2500 Series |
