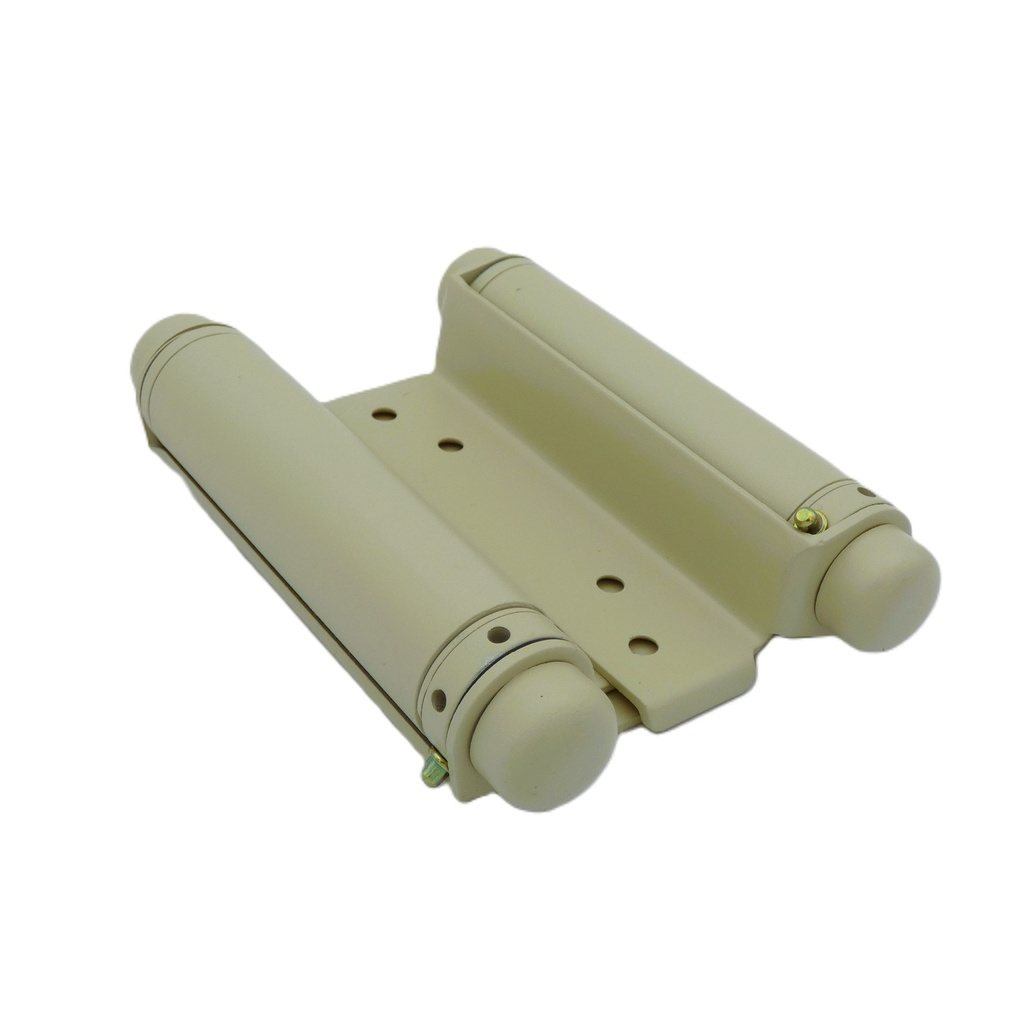

Hager 1303 4" Double Acting Spring Hinge – Adjustable Steel Saloon Door Hinge
![Hager 1303 4" Double Acting Spring Hinge – Adjustable Steel Saloon Door Hinge](/web/image/50917-36608c3e/image.png?access_token=c90eabc2-00d3-41b8-bbe2-0aa4fea85711 "Hager 1303 4" Double Acting Spring Hinge – Adjustable Steel Saloon Door Hinge")
![Hager 1303 4" Double Acting Spring Hinge – Adjustable Steel Saloon Door Hinge](/web/image/50919-164ff999/image.png?access_token=7ce6c9d0-c298-4a7b-8afe-39e25793ce0d "Hager 1303 4" Double Acting Spring Hinge – Adjustable Steel Saloon Door Hinge")
The Hager 1303 4" Double Acting Hinge is the premier hardware solution for doors that require a 180-degree range of motion. Engineered for convenience and durability, this "swing-through" hinge allows doors to open in both directions and automatically return to the center closed position. It is the industry standard for cafe doors, saloon doors, and commercial kitchen doors where hands-free access is essential.
Constructed from high-strength steel, the Hager 1303 features an adjustable spring tension system. This allows you to customize the closing speed and force based on the specific weight and requirements of your door, ensuring a safe and reliable operation every time.
Key Features & Benefits
- Double Acting Functionality: Permits doors to swing a full 90 degrees in each direction, totaling a 180-degree arc.
- Adjustable Tension: Easily fine-tune the spring power to ensure the door returns to the center without excessive force.
- Versatile Application: Designed for use on wood doors ranging from 3/4" to 2" thick (check sizing chart for specific fastener compatibility).
- Non-Handed Design: Simplifies installation by working on both left-hand and right-hand door configurations.
- High Load Capacity: Supports doors weighing up to 75 lbs and widths up to 3 feet when using the appropriate number of hinges.
Technical Specifications
| Feature | Specification |
| Model | Hager 1303 |
| Hinge Size | 4" (Height) |
| Material | Heavy-Duty Steel |
| Certification | ANSI K81041 |
| Door Thickness | 3/4" to 2" |
| Max Door Weight | 75 lbs |
| Max Door Width | 3' 0" (36 inches) |
| Handing | Non-Handed |
| Required Per Door | 2 to 3 Hinges |
| Stock Finishes | USP (Primed), US3 (Bright Brass), US4 (Satin Brass), US26D (Satin Chrome) |
Fastener Information (4" Model)
The Hager 1303 4" model is furnished with high-quality wood screws to ensure a secure mount:
- Fasteners Included: 8 each #6 x 3/4" FPH WS (Flat Head Wood Screws)
Important Installation Notes
- Door Compatibility: These hinges are designed specifically for square-edge wood doors. They are not for use on doors with beveled edges, half-doors, or hollow metal steel doors.
- Quantity Recommendation: For standard residential applications, 2 hinges are typically sufficient. For taller or heavier commercial doors, 3 hinges are recommended to maintain alignment and spring longevity.
| General - US Finishes | US26D - Satin Chrome or USP - Prime Painted |
| Brand | Hager |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Double Acting |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
| Hinge Height | 4.0" Hi |
