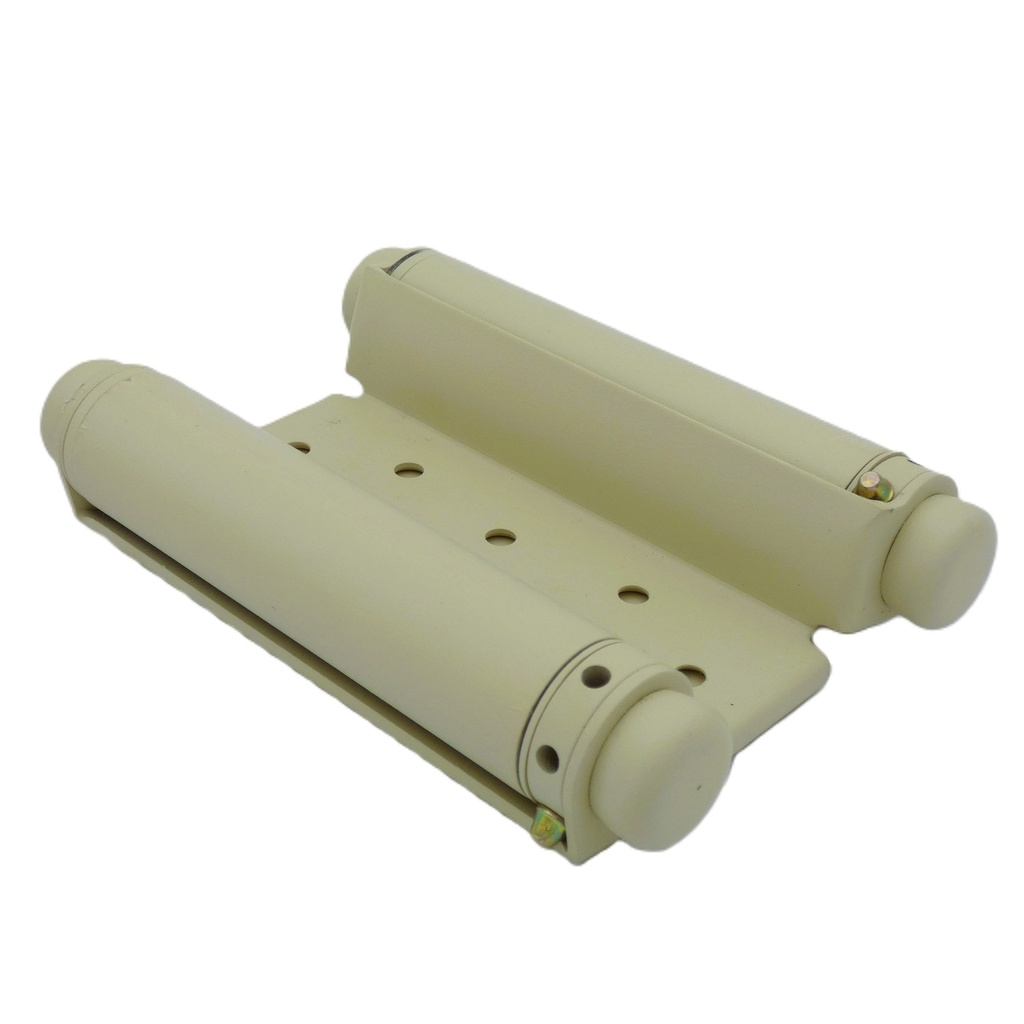

Hager 1303 5" Double Acting Spring Hinge – Adjustable Steel Saloon Door Hinge
The Hager 1303 5" Double Acting Hinge is a robust hardware solution designed for doors that require a 180-degree range of motion. Frequently utilized for cafe doors, saloon doors, and commercial kitchen swing doors, this hinge allows for effortless "swing-through" access in both directions. Once the door is released, the integrated spring mechanism automatically returns it to the center closed position.
Crafted from durable steel, the Hager 1303 features an adjustable spring tension system. This allows installers to fine-tune the closing speed and force to match the specific weight and dimensions of the door, ensuring reliable performance in both residential and commercial environments.
Key Features & Benefits
- Double Acting Operation: Provides a full 90-degree swing in both directions (totaling a 180-degree arc).
- Adjustable Spring Tension: Easily customize the spring power to ensure the door returns to center without excessive "hunting" or swinging.
- Versatile Door Compatibility: Engineered for wood doors ranging from 3/4" to 2" thick (refer to technical specifications for fastener details).
- Non-Handed: The universal design simplifies installation, as the hinges work on both left-hand and right-hand door setups.
- Commercial Grade Strength: Supports doors weighing up to 75 lbs and widths up to 36 inches when installed in a 2 or 3 hinge configuration.
Technical Specifications
| Feature | Specification |
| Model | Hager 1303 |
| Hinge Size (Height) | 5" |
| Material | Heavy-Duty Steel |
| Certification | ANSI K81041 |
| Door Thickness Range | 3/4" – 2" |
| Maximum Door Weight | 75 lbs |
| Maximum Door Width | 3' 0" (36 inches) |
| Handing | Non-Handed |
| Standard Finishes | USP (Primed), US3 (Bright Brass), US4 (Satin Brass), US26D (Satin Chrome) |
| Hinges Required | 2 to 3 per door |
Fastener Information (5" Model)
The Hager 1303 5" model is supplied with heavy-duty wood screws to ensure a secure, long-lasting mount:
- Included Fasteners: 10 each #8 x 1-1/4" FPH WS (Flat Head Wood Screws)
Important Installation Notes
- Door Edge Requirements: These hinges are designed for square-edged wood doors. They are not suitable for use on doors with beveled edges, half-doors, or hollow metal steel doors.
- Hinge Quantity: For standard heights, 2 hinges are generally sufficient; however, for doors at the maximum weight or height limit, using 3 hinges is recommended to maintain alignment and spring life.
| General - US Finishes | US26D - Satin Chrome or USP - Prime Painted |
| Brand | Hager |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Double Acting |
| Hinge Options | Ball Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
| Hinge Height | 5.0" Hi |
