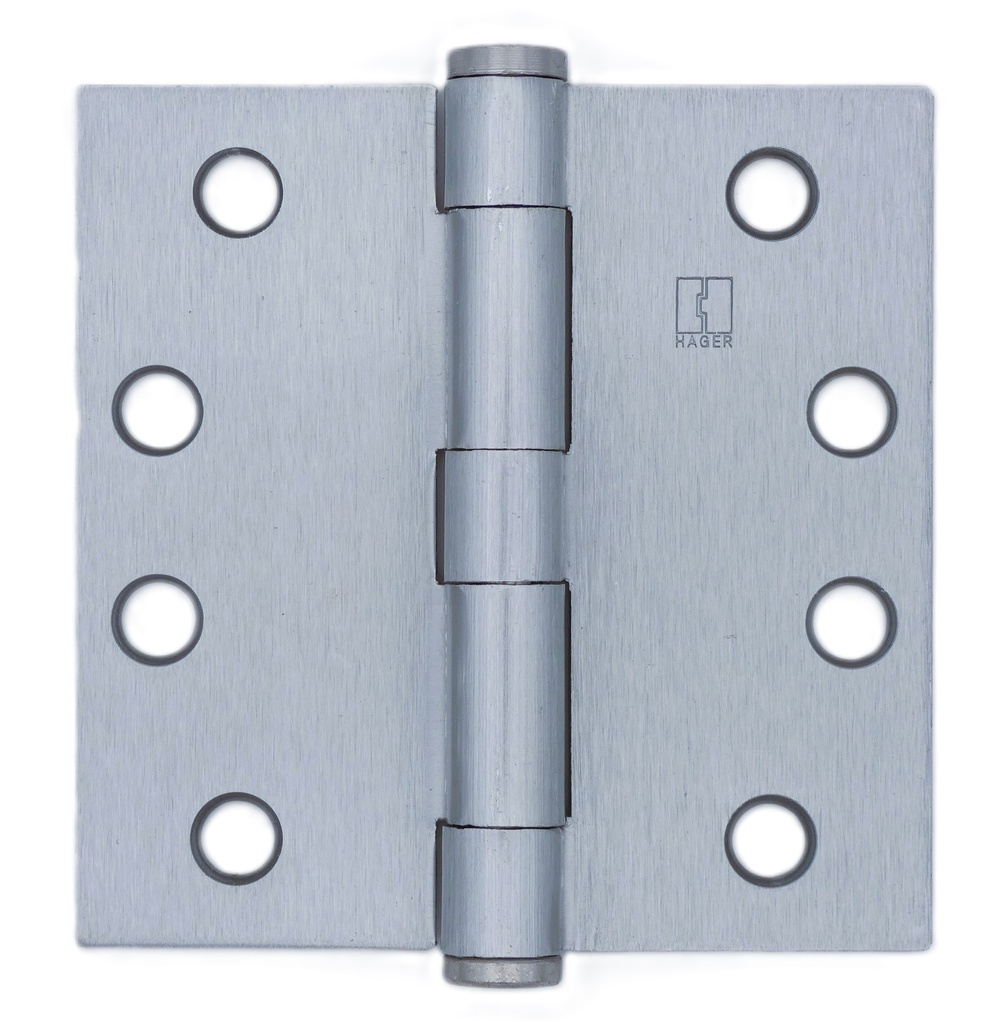

Hager 1279 4.0 x 4.0 Full Mortise - Plain Bearing Hinge, Steel with plated finish
For use on medium weight doors or doors requiring low frequency service. These hinges are ideal when you don't need the heavy-duty performance but still require reliable support. Perfect for doors that are opened and closed a moderate number of times each day.
Additionally, keep in mind that these hinges come conveniently packaged in packs of 3, making it easy to plan and execute your project with precision and ease.
Whether you're outfitting a residential setting or a light commercial space, these hinges offer the perfect balance of functionality and convenience.
- Furnished standard with All wood screws (1 1/4" x 12 FPHW) and All machine screws (1/2" 12-24 FPHM)
- Hinges are .129 thickness, For 1 3/4" door thickness. For use on medium weight doors or doors requiring low frequency service.
Material:
- Steel with Steel pin
- Square Corners
- Non-rising removable pin with button tip and plug
- Doors with closers and UL Fire Rated Doors should use ball bearing hinges
ANSI A8133
Hinge Specifications
The hinge in question boasts a robust construction suitable for various applications. Here's a detailed breakdown of its features:
- Duty Weight/Class: This is a standard duty hinge, engineered to provide reliable support for moderate use.
- Material: Constructed from durable steel, ensuring longevity and strength.
- Country of Origin: Proudly made in the USA, guaranteeing adherence to high manufacturing standards.
- Bearing Type: Utilizes a plain bearing design, which offers smooth operation with fewer maintenance concerns.
- Corner Type: Features a square corner, catering to specific design needs and installations.
- Hinge Type: A full mortise hinge, which is ideal for doors requiring a flush fit.
- Knuckles: Comprises five knuckles, contributing to enhanced hinge stability and performance.
- Pack Size: Available in convenient packs of three, delivering value and readiness for multiple installations.
- Standards Compliance: Meets ANSI A8133 standards, ensuring quality and compatibility in various settings.
These specifications collectively highlight the hinge's excellent design and construction for reliable, everyday use.
| General - US Finishes | US26D - Satin Chrome or US26 - Polished Chrome or US15 - Satin Nickel or US3 - Polished Brass or US10B - Oil Rubbed Bronze or USP - Prime Painted |
| Brand | Hager |
| Hinge Height | 4.0" Hi |
| Hinge Width | 4.0" Wi |
| Hinge Grade/Thickness | Standard Wt .119 to .146 |
| Hinge Type | Full Mortise |
| Hinge Options | Plain Bearing |
| Base Material | Steel |
| Hinge Corners | Square |
