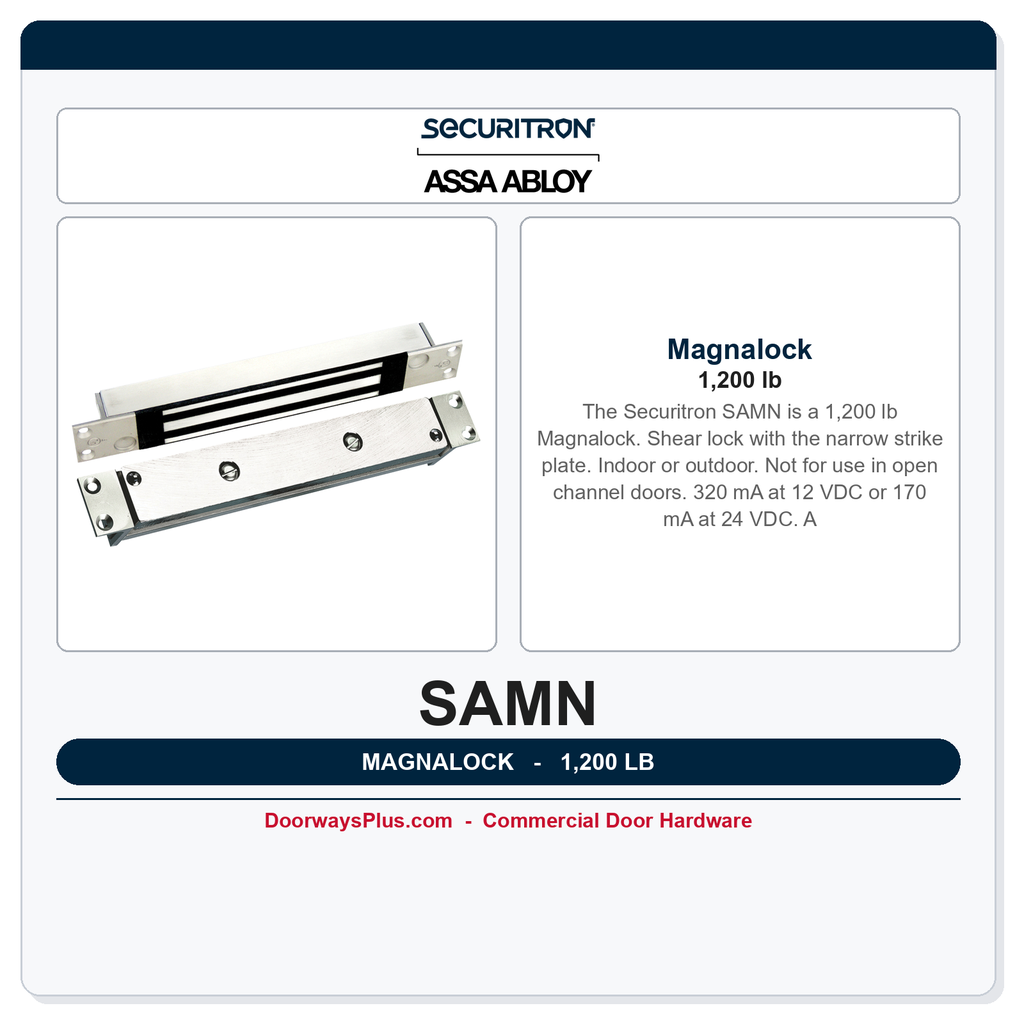

Securitron SAMN Magnalock | 1,200 lb
The Securitron SAMN is a 1,200 lb Magnalock. Shear lock with the narrow strike plate. Indoor or outdoor. Not for use in open channel doors. 320 mA at 12 VDC or 170 mA at 24 VDC. A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. The lock body is 10-7/8 in long, 1-3/16 in high, and 1-1/2 in deep. Mounts in wood, steel, or aluminum at the header, door edge, or threshold. Sliding, in-swing, out-swing, or swing-through. Single door, or each leaf of a pair. UL 10C, CAN4-S104, CAN/ULC-S533, ANSI/UL 294, ANSI/BHMA A156.23 Grade 2, CSFM, and CE.
Institutional Grade Features & Benefits
- 1,200 lb holding force.
- Shear lock with the narrow strike plate.
- Indoor or outdoor. Not for use in open channel doors.
Applications
- Header, door edge, or threshold
- Sliding, in-swing, out-swing, or swing-through
Technical Details
| Feature | Details |
|---|---|
| Model Number | SAMN |
| Holding force | 1,200 lb |
| Body | 10-7/8 in L x 1-3/16 in H x 1-1/2 in D |
| Electrical | 320 mA at 12 VDC or 170 mA at 24 VDC. |
| Temperature | -40 F to 140 F |
| Use | Indoor or outdoor. Not for use in open channel doors. |
| Listings | UL 10C, CAN4-S104, CAN/ULC-S533, ANSI/UL 294, ANSI/BHMA A156.23 Grade 2, CSFM, CE |
| Code note | A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. |
| Brand | Securitron |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
