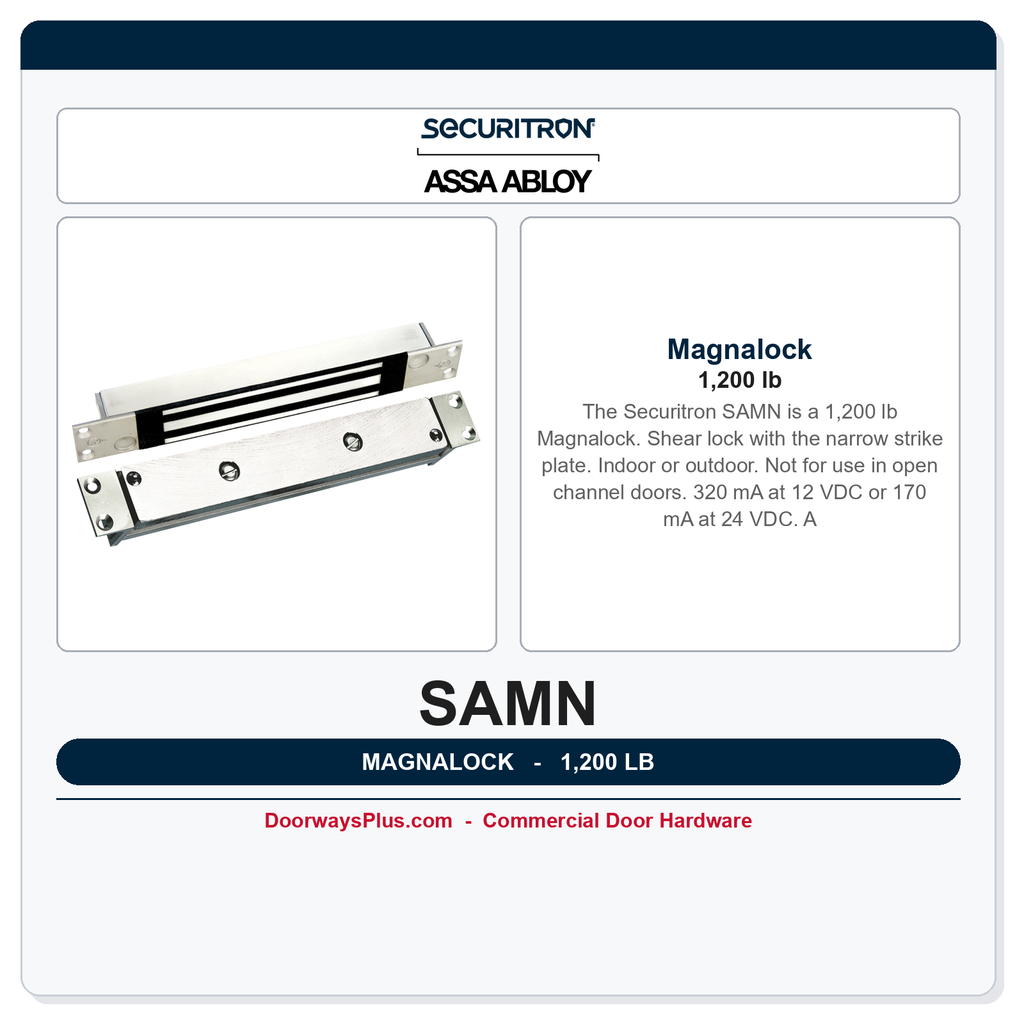

Securitron SAMN
The Securitron SAMN is a 1,200 lb Magnalock. Shear lock with the narrow strike plate. Indoor or outdoor. Not for use in open channel doors. 320 mA at 12 VDC or 170 mA at 24 VDC. A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release.
Institutional Grade Features & Benefits
- 1,200 lb holding force.
- Shear lock with the narrow strike plate.
Technical Details
| Feature | Details |
|---|---|
| Model Number | SAMN |
| Holding force | 1,200 lb |
| Electrical | 320 mA at 12 VDC or 170 mA at 24 VDC. |
| Use | Indoor or outdoor. Not for use in open channel doors. |
| Code note | A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. |
| Brand | Securitron |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
