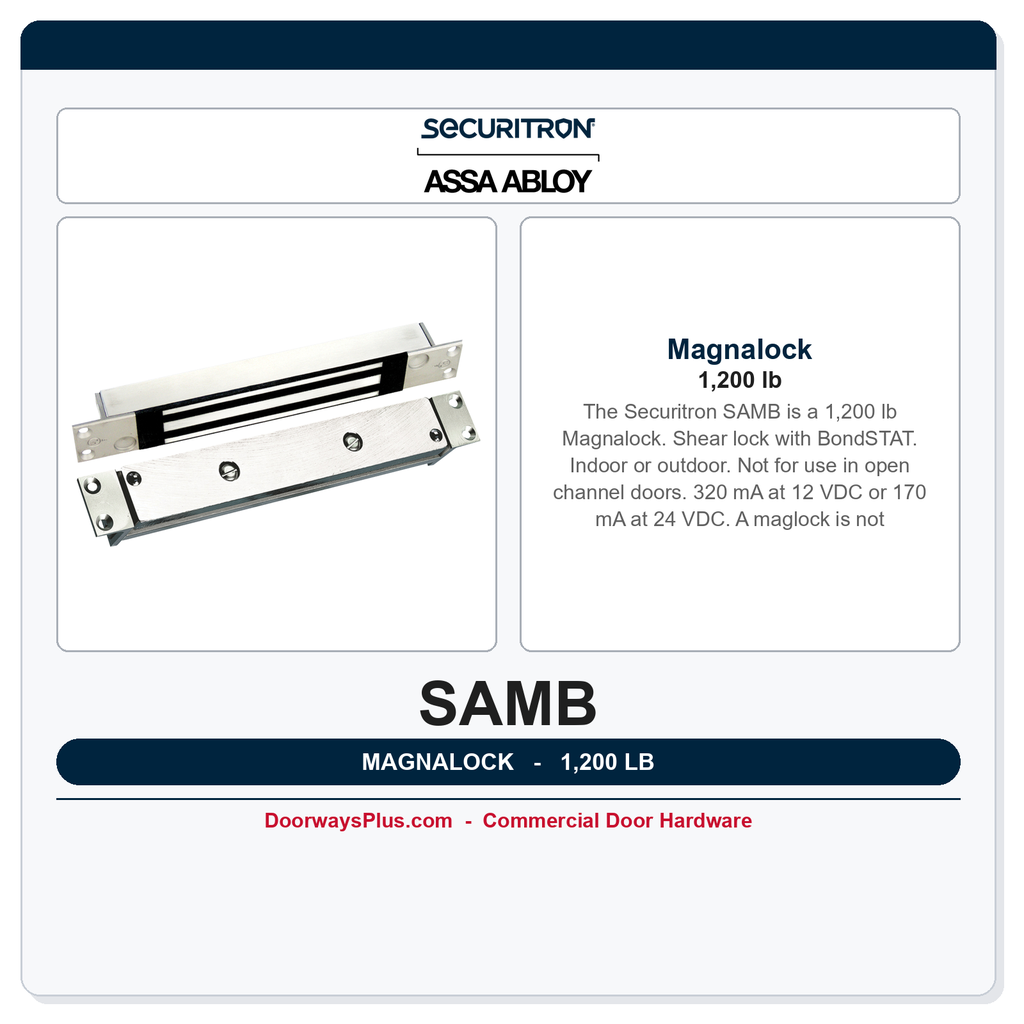

Securitron SAMB Magnalock | 1,200 lb
The Securitron SAMB is a 1,200 lb Magnalock. Shear lock with BondSTAT. Indoor or outdoor. Not for use in open channel doors. 320 mA at 12 VDC or 170 mA at 24 VDC. A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. The lock body is 10-7/8 in long, 1-3/16 in high, and 1-1/2 in deep. Mounts in wood, steel, or aluminum at the header, door edge, or threshold. Sliding, in-swing, out-swing, or swing-through. Single door, or each leaf of a pair. UL 10C, CAN4-S104, CAN/ULC-S533, ANSI/UL 294, ANSI/BHMA A156.23 Grade 2, CSFM, and CE.
Institutional Grade Features & Benefits
- 1,200 lb holding force.
- Shear lock with BondSTAT.
- Indoor or outdoor. Not for use in open channel doors.
Applications
- Header, door edge, or threshold
- Sliding, in-swing, out-swing, or swing-through
Technical Details
| Feature | Details |
|---|---|
| Model Number | SAMB |
| Holding force | 1,200 lb |
| Body | 10-7/8 in L x 1-3/16 in H x 1-1/2 in D |
| Electrical | 320 mA at 12 VDC or 170 mA at 24 VDC. |
| Temperature | -40 F to 140 F |
| Use | Indoor or outdoor. Not for use in open channel doors. |
| Listings | UL 10C, CAN4-S104, CAN/ULC-S533, ANSI/UL 294, ANSI/BHMA A156.23 Grade 2, CSFM, CE |
| Code note | A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. |
| Brand | Securitron |
| Magnetic Lock Options | Bond Sensor |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
