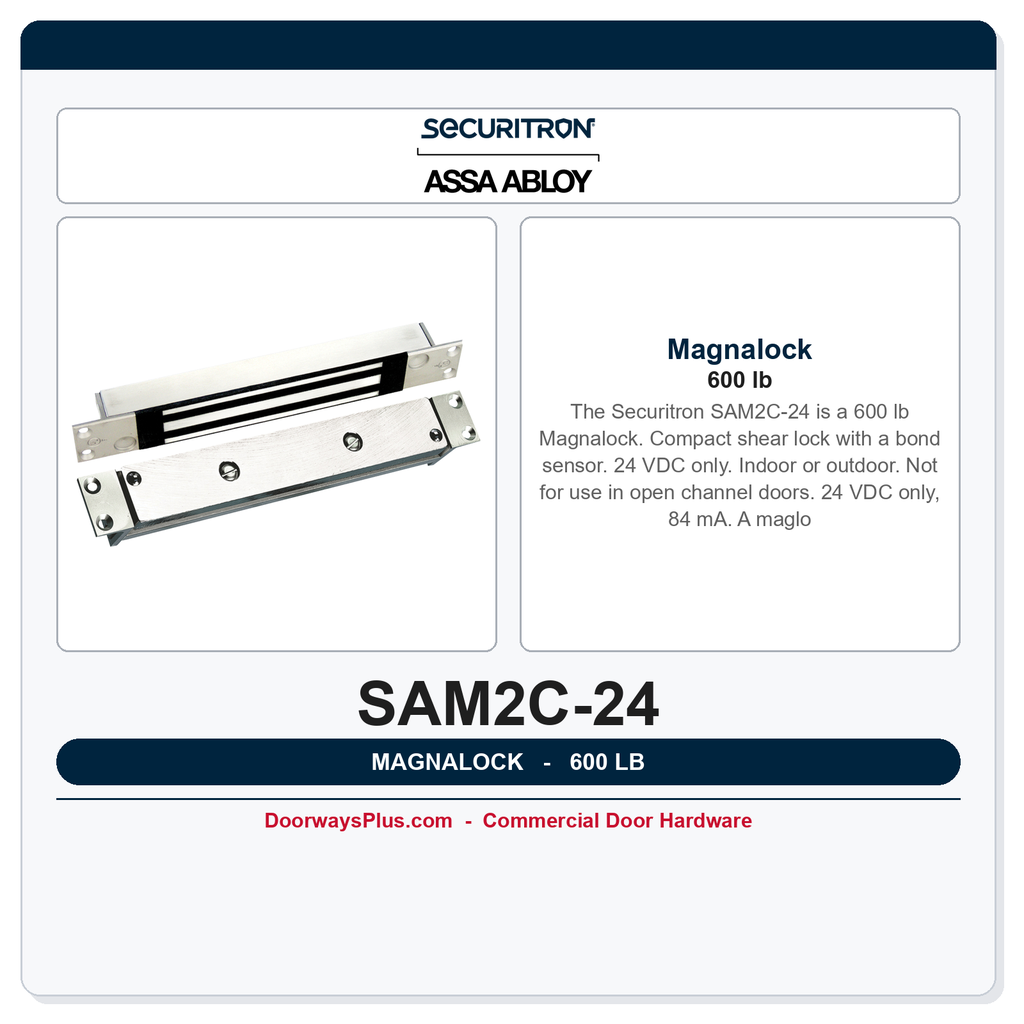

Securitron SAM2C-24 Magnalock | 600 lb
The Securitron SAM2C-24 is a 600 lb Magnalock. Compact shear lock with a bond sensor. 24 VDC only. Indoor or outdoor. Not for use in open channel doors. 24 VDC only, 84 mA. A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. The lock body is 7-3/16 in long, 1-1/8 in high, and 1-1/8 in deep. Mounts in wood, steel, aluminum, or Herculite at the header, door edge, or threshold. UL 10C, CAN4-S104, CAN/ULC-S533, ANSI/UL 294, ANSI/BHMA A156.23 Grade 3, and CSFM.
Institutional Grade Features & Benefits
- 600 lb holding force.
- Compact shear lock with a bond sensor. 24 VDC only.
- Indoor or outdoor. Not for use in open channel doors.
Applications
- Sliding closet doors and smaller openings
- Header, door edge, or threshold
Technical Details
| Feature | Details |
|---|---|
| Model Number | SAM2C-24 |
| Holding force | 600 lb |
| Body | 7-3/16 in L x 1-1/8 in H x 1-1/8 in D |
| Electrical | 24 VDC only, 84 mA. |
| Temperature | -40 F to 140 F |
| Use | Indoor or outdoor. Not for use in open channel doors. |
| Listings | UL 10C, CAN4-S104, CAN/ULC-S533, ANSI/UL 294, ANSI/BHMA A156.23 Grade 3, CSFM |
| Code note | A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. |
| Brand | Securitron |
| Magnetic Lock Options | Bond Sensor |
| Voltage | 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 600 lbs. |
