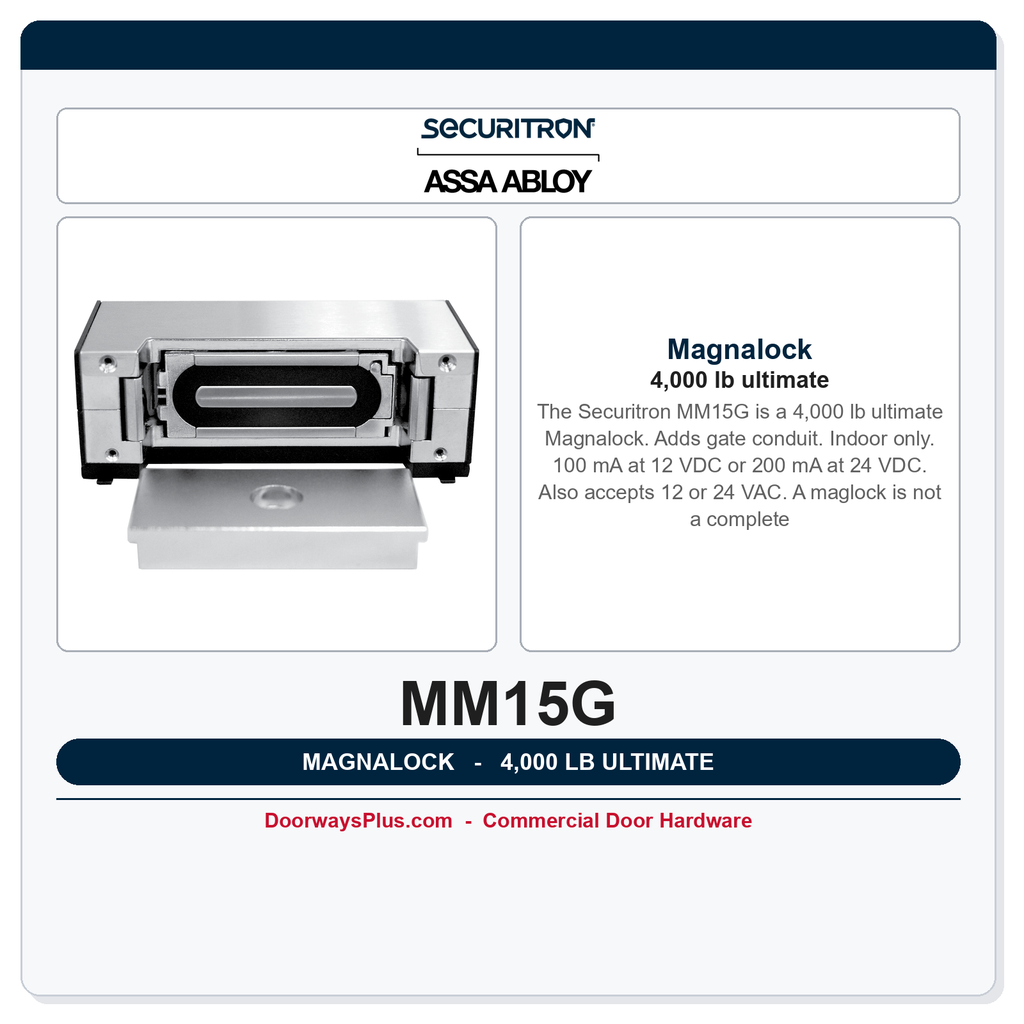

Securitron MM15G Magnalock | 4,000 lb ultimate
The Securitron MM15G is a 4,000 lb ultimate Magnalock. Adds gate conduit. Indoor only. 100 mA at 12 VDC or 200 mA at 24 VDC. Also accepts 12 or 24 VAC. A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. The body is 5-1/8 in long, 3-7/8 in high, and 2-3/4 in deep. The armature is 6 in long by 1-7/8 in high, with 1/4 in protrusion. Fail safe. UL 294, UL 10C 1-hour, and CAN/ULC-S104. High-security interior use. A behavioral-health or detention specification needs the facility security consultant and the AHJ.
Institutional Grade Features & Benefits
- 4,000 lb ultimate holding force.
- Adds gate conduit.
- Indoor only.
Applications
- High-security interior openings
- Bracket mount, direct mount standard
Technical Details
| Feature | Details |
|---|---|
| Model Number | MM15G |
| Holding force | 4,000 lb ultimate |
| Body | 5-1/8 in L x 3-7/8 in H x 2-3/4 in D |
| Electrical | 100 mA at 12 VDC or 200 mA at 24 VDC. Also accepts 12 or 24 VAC. |
| Temperature | -40 F to 140 F |
| Use | Indoor only. |
| Listings | UL 294, UL 10C 1-hour, CAN/ULC-S104 |
| Code note | A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. |
| Brand | Securitron |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 4000 lbs. |
