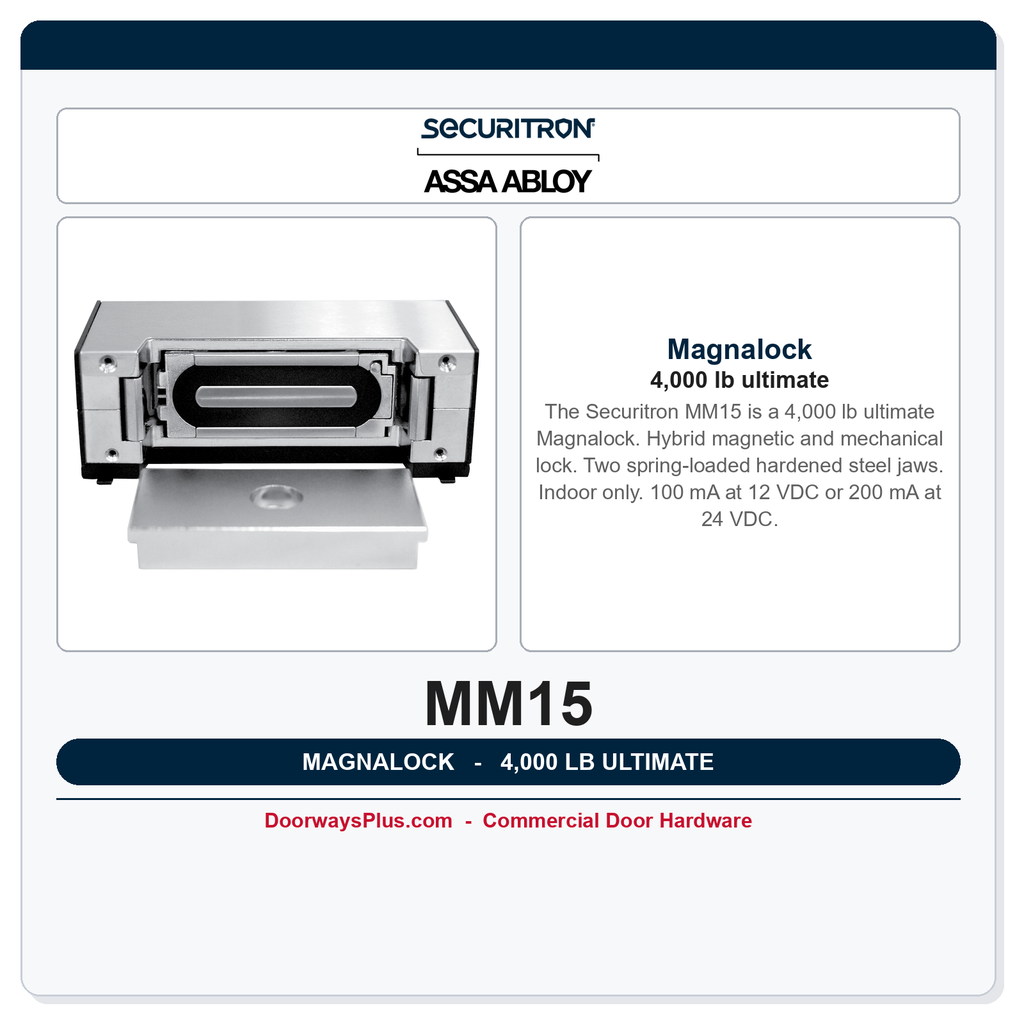

Securitron MM15
The Securitron MM15 is a 4,000 lb ultimate Magnalock. Hybrid magnetic and mechanical lock. Two spring-loaded hardened steel jaws. Indoor only. 100 mA at 12 VDC or 200 mA at 24 VDC. Also accepts 12 or 24 VAC. A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. High-security interior use. A behavioral-health or detention specification needs the facility security consultant and the AHJ.
Institutional Grade Features & Benefits
- 4,000 lb ultimate holding force.
- Hybrid magnetic and mechanical lock. Two spring-loaded hardened steel jaws.
Technical Details
| Feature | Details |
|---|---|
| Model Number | MM15 |
| Holding force | 4,000 lb ultimate |
| Electrical | 100 mA at 12 VDC or 200 mA at 24 VDC. Also accepts 12 or 24 VAC. |
| Use | Indoor only. |
| Code note | A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. |
| Brand | Securitron |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 4000 lbs. |
