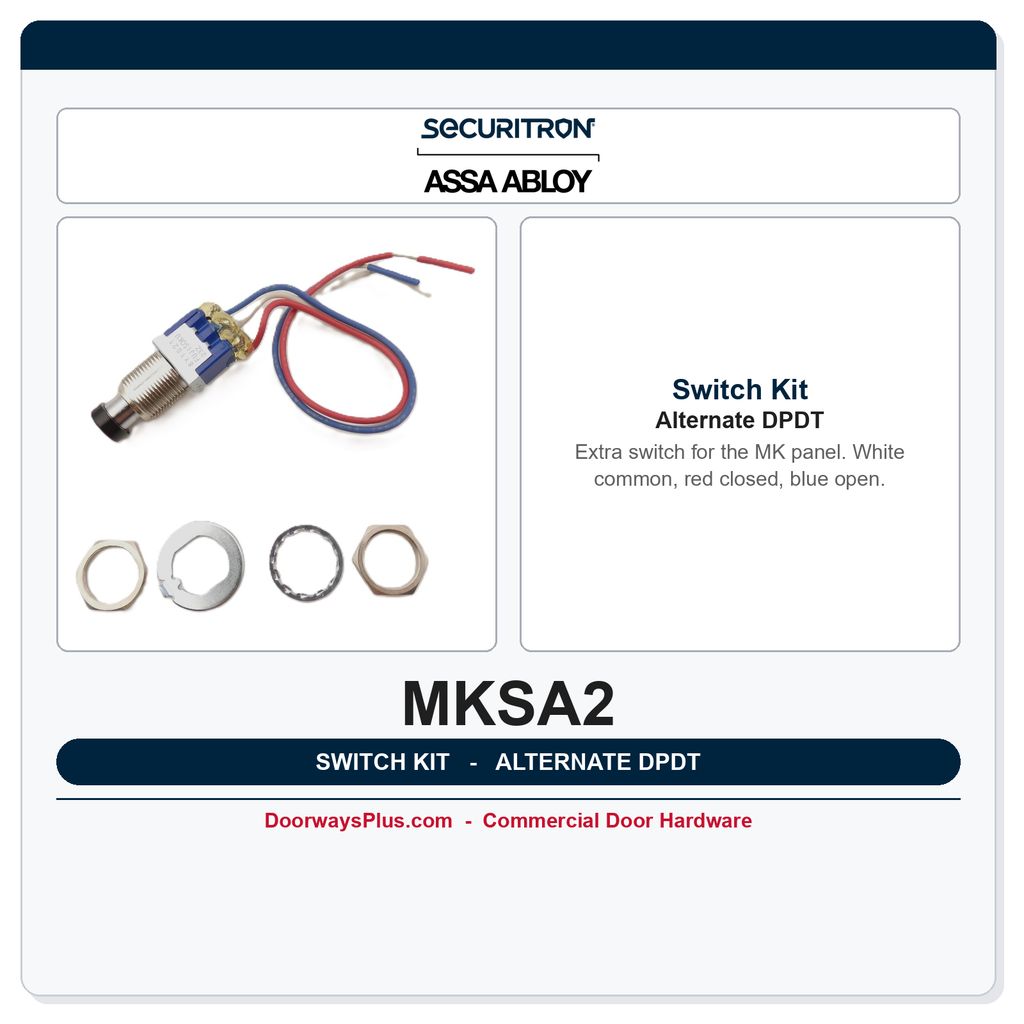

Securitron MKSA2 Mortise Keyswitch - Replacement DPDT Switch Kit, Alternate

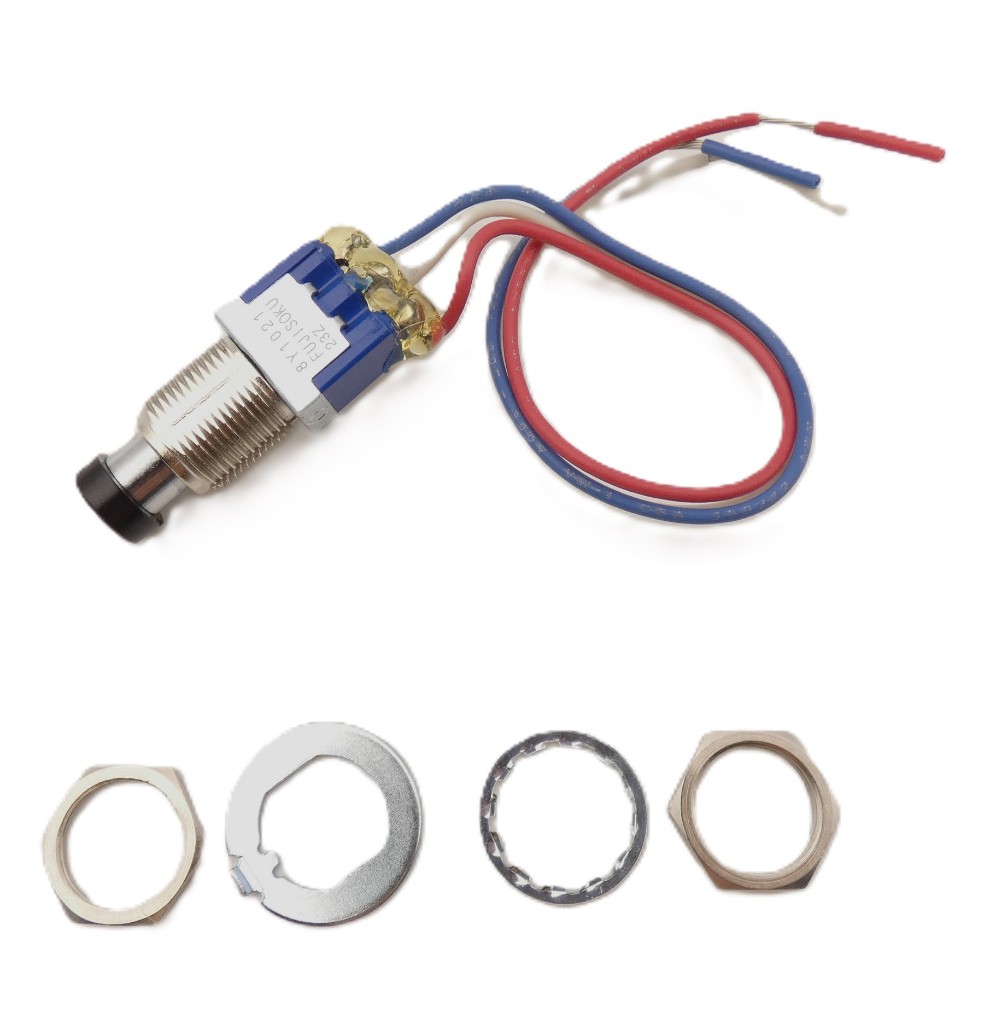

Extra switch for an MK mortise keyswitch panel. This part is the switch only.
Institutional Grade Features & Benefits
- Alternate action. Push on, push off. The switch body is stamped 8Y2011 or 206N.
- DPDT contacts. The contacts handle up to 3 amps.
- White is common, red is normally closed, and blue is normally open.
- Turning the key left operates one switch and turning it right operates the other.
- The actuator has a black nylon cover, with steel under the cover.
- The face plate, LED, bracket, cylinder, and cam are not part of this part number.
Technical Details
| Feature | Details |
|---|---|
| Model | MKSA2 |
| Action | Alternate |
| Contacts | DPDT |
| Switch body | 8Y2011 or 206N |
| Wires | White common, red N.C., blue N.O. |
| Brand | Securitron |
