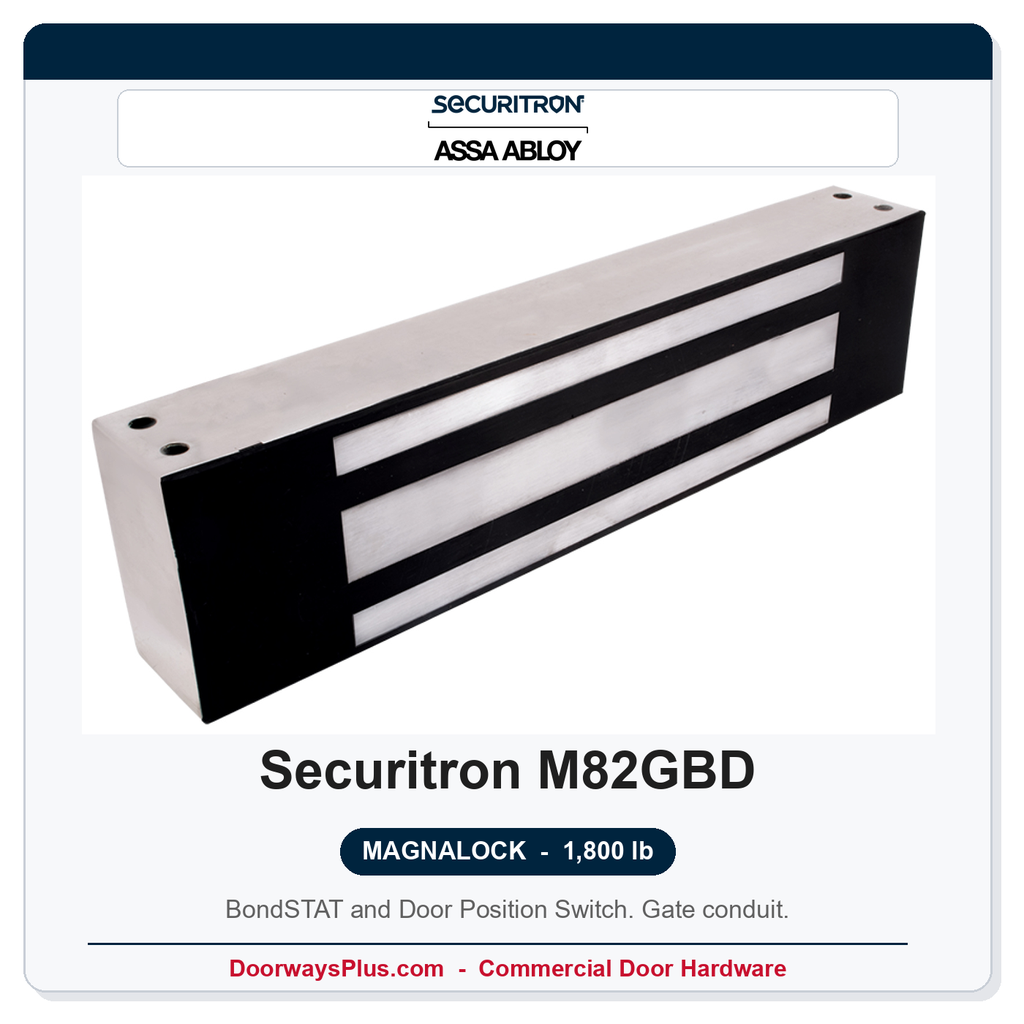

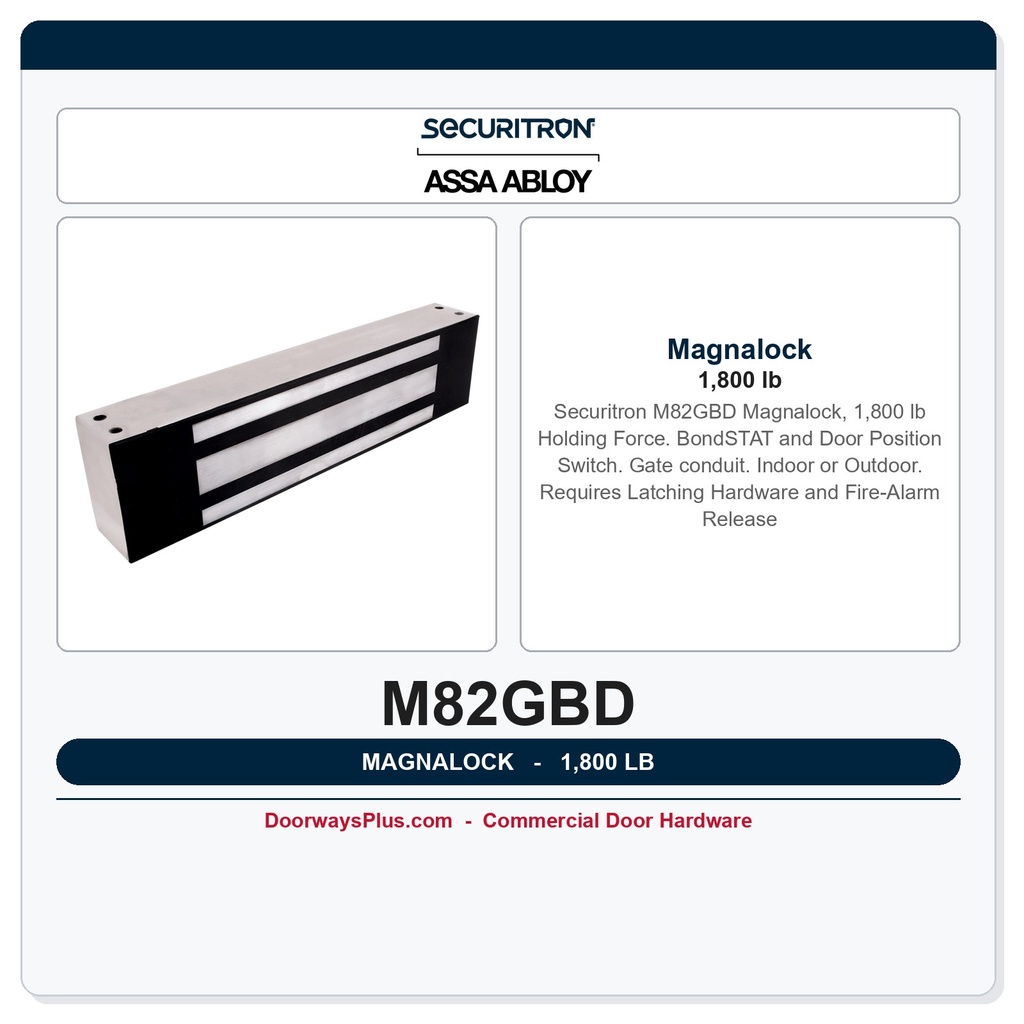

Securitron M82GBD Magnalock — 1,800 lb Electromagnetic Lock with BondSTAT & Door Position Switch (Gate Conduit, Satin Stainless)
The Securitron M82GBD Magnalock is a heavy-duty, 1,800 lb (816 kg) holding-force electromagnetic lock engineered for gate and perimeter door applications where conduit wiring, integrated bond sensing, and built-in door position monitoring are required in a single unit. This listing covers the gate conduit configuration with the BondSTAT bond sensor and integrated door position switch (DPS) — combining three critical access-control functions in one compact maglock body. Finish is 630 Satin Stainless (US32D), ideal for corrosion-prone or high-visibility environments. Manufactured at Securitron's Phoenix factory and backed by the MagnaCare lifetime replacement warranty.
Key Features & Benefits
- 1,800 lb Holding Force: Rated at 1,800 lb (816 kg) — appropriate for high-security perimeter gates, parking garage entries, and controlled-access vestibules.
- BondSTAT Bond Sensor: Continuously monitors magnetic bond integrity between the lock body and armature plate, providing real-time feedback to your access control system and alerting to degraded holding force or tamper attempts.
- Integrated Door Position Switch: Eliminates the need for a separate DPS device; reports door open/closed status directly, simplifying wiring and reducing installation time and cost.
- Gate Conduit Body: Purpose-built conduit entry for gate installations — wiring enters through the body rather than requiring a surface-mount wireway.
- Automatic 12/24 VDC Operation: Draws 350 mA at 12 VDC or 200 mA at 24 VDC with automatic voltage sensing — no field voltage adjustment needed, simplifying commissioning.
- Fully Sealed & All-Weather Rated: Operates from −40 °F to 140 °F; fully sealed housing makes this unit suitable for both indoor and outdoor applications including exposed gate posts.
- Instant Release, No Residual Magnetism: Drops instantly upon power cut with no magnetic memory — critical for life-safety egress compliance.
- Built-in MOV: Metal oxide varistor protects against power-supply voltage transients, extending product life and protecting connected control equipment.
- Collapsing Blind Nuts: Simplify mounting to hollow sections and gate frames without requiring rear access.
- 10 ft Jacketed Cable: Pre-installed jacketed lead cable provides ample reach for gate-post wiring runs.
- MagnaCare Lifetime Replacement: Securitron's MagnaCare program provides lifetime replacement coverage on the lock body.
Certifications & Standards
- UL 10C Listed — Positive-pressure fire door assemblies
- ANSI/BHMA A156.23 Grade 1 (E08501-1500) — Highest grade for electromagnetic locks
- ANSI/UL 294 — Access control system units
- CAN4-S104 / CAN/ULC-S533 — Canadian fire door and access control standards
- CSA C22.2 No. 205 — Signal equipment
- CSFM — California State Fire Marshal listed
- CE — European conformity
Important Application Notes
An electromagnetic lock is not a complete egress solution on its own. It must be integrated with approved latching hardware and a fire-alarm release (power-fail or shunt) in accordance with applicable building and fire codes. A standalone push button does not qualify as the sole means of egress release. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately as required. This is not a PoE (Power over Ethernet) model; use a dedicated 12 VDC or 24 VDC power supply. Do not use lithium or NiMH batteries with AQD or AQS power supplies.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M82GBD |
| Manufacturer | Securitron (Phoenix, AZ) |
| Holding Force | 1,800 lb (816 kg) |
| Configuration | Gate conduit, BondSTAT bond sensor, integrated door position switch |
| Finish | 630 Satin Stainless (US32D) |
| Voltage / Current | 350 mA @ 12 VDC | 200 mA @ 24 VDC; automatic 12/24 VDC sensing |
| Body Dimensions | 12 in L × 3 in H × 2-3/4 in D |
| Operating Temperature | −40 °F to 140 °F |
| Mounting | Collapsing blind nuts |
| Cable | 10 ft jacketed lead cable, pre-installed |
| PoE Compatible | No |
| Strike Included | No (offset, split, or shock-absorbing strike sold separately) |
| Warranty | MagnaCare lifetime replacement |
| Standards / Listings | UL 10C, ANSI/BHMA A156.23 Grade 1, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, CE |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1800 lbs. |
