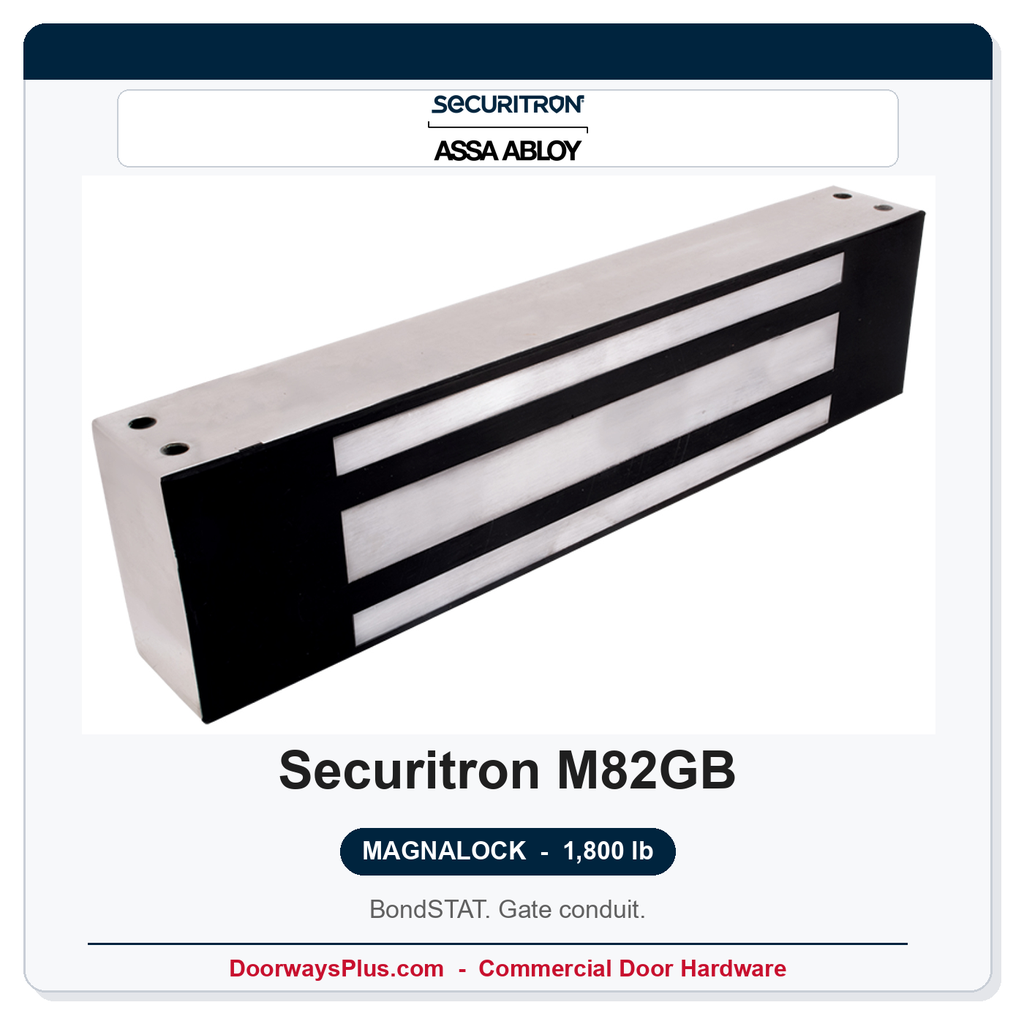

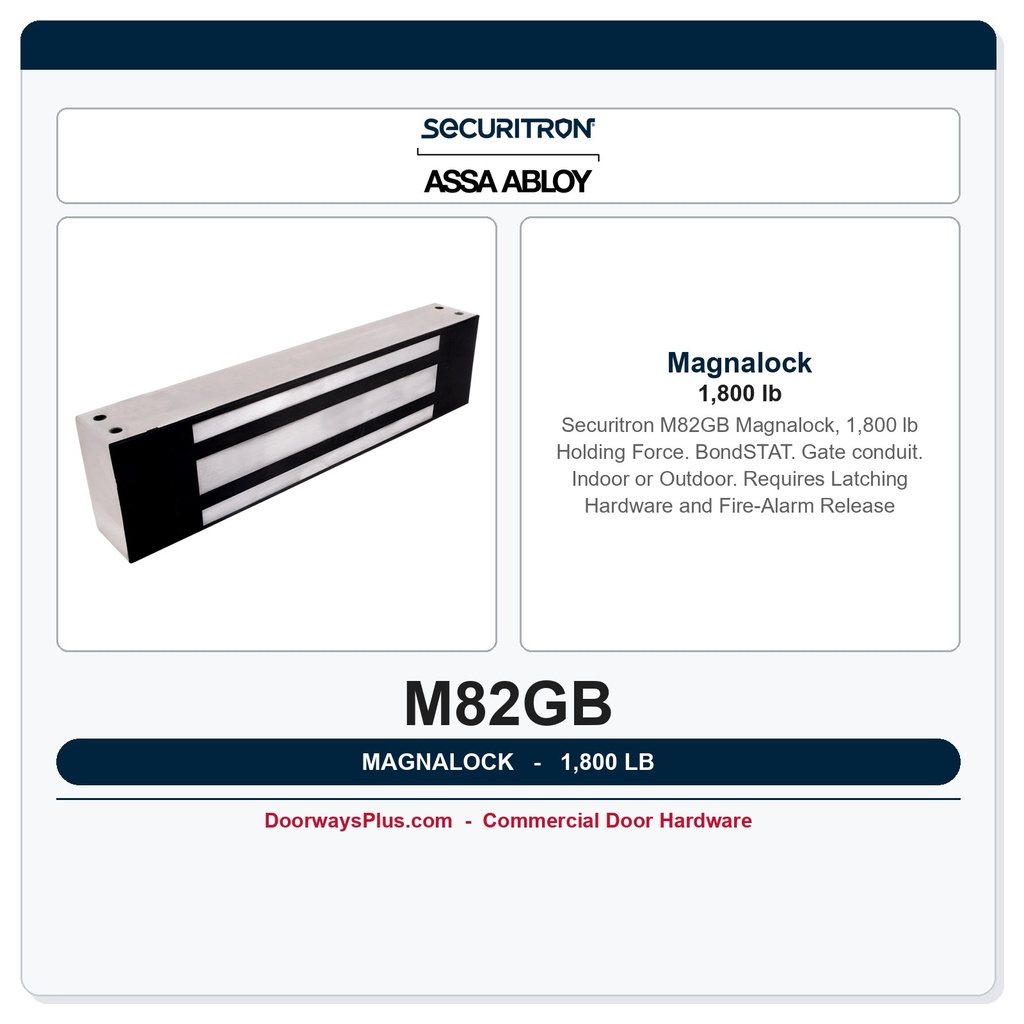

Securitron M82GB Magnalock 1,800 lb Electromagnetic Lock — Gate Conduit with BondSTAT Bond Sensor, Satin Stainless (630)
The Securitron M82GB Magnalock is a heavy-duty, 1,800 lb (816 kg) holding-force electromagnetic lock engineered for gate conduit installations and equipped with the integrated BondSTAT bond sensor for real-time door-position and bond-status monitoring. Manufactured at Securitron's Phoenix facility, this fully sealed unit is rated for both indoor and outdoor use across an operating range of -40 °F to 140 °F, making it well-suited for exterior gates and perimeter access-control points in harsh environments. The M82GB is covered by Securitron's MagnaCare lifetime replacement warranty.
Key Features & Benefits
- Exceptional Holding Force: 1,800 lb (816 kg) shear-strength rating meets the demands of high-security gates and controlled entry points.
- BondSTAT Bond Sensor: Built-in sensor continuously monitors magnet-to-armature bond integrity, enabling positive door-status feedback to access-control systems without a separate door contact.
- Automatic 12/24 VDC Operation: Accepts 12 VDC (350 mA) or 24 VDC (200 mA) automatically — no field voltage adjustment required, simplifying installation and system integration.
- Gate Conduit Configuration: Wiring exits through conduit fittings sized for typical gate and perimeter installations, keeping conductors protected from the elements.
- Fully Sealed, All-Weather Body: Weatherproof construction and -40 °F to 140 °F operating range support outdoor gates, parking structures, and exposed entryways.
- Instant Release, No Residual Magnetism: Power-off release is immediate with no magnetic remanence delay, critical for life-safety egress compliance.
- Built-in MOV Protection: Metal oxide varistor suppresses voltage transients, protecting the lock and connected access-control hardware.
- 10 ft Jacketed Cable: Pre-installed cable simplifies rough-in and reduces field wiring time.
- Collapsing Blind Nuts: Innovative fastener system secures the lock body without requiring access to the back side of the mounting surface.
- MagnaCare Lifetime Replacement: Securitron's industry-recognized warranty program covers the lock for its service life.
- Finish 630 — Satin Stainless (US32D): Corrosion-resistant finish appropriate for exterior and coastal environments.
Certifications & Standards
- UL 10C Listed — Positive Pressure Fire Door Assemblies
- ANSI/BHMA A156.23 Grade 1 (E08501-1500) — highest commercial-grade classification for electromagnetic locks
- ANSI/UL 294 — Access Control System Units
- CAN4-S104 / CAN/ULC-S533 — Canadian fire and access-control listings
- CSA C22.2 No. 205 — Signal Equipment
- CSFM — California State Fire Marshal
- CE — European conformity mark
Important Installation & Egress Notes
A magnetic lock is not a complete egress solution on its own. This device must be paired with appropriate latching hardware and a fire-alarm release interface per applicable codes. A standalone push button does not satisfy sole-means-of-egress requirements. This model does not include an offset strike, split strike, or shock-absorbing strike — order those accessories separately if required. This is not a PoE (Power over Ethernet) model; a dedicated access-control power supply is required. Do not use lithium or NiMH batteries with Securitron AQD or AQS power supplies.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M82GB |
| Series | Magnalock M82 Series |
| Configuration | Gate Conduit with BondSTAT Bond Sensor |
| Holding Force | 1,800 lb (816 kg) |
| Input Voltage | 12 VDC (350 mA) or 24 VDC (200 mA), automatic — no field adjustment |
| Body Dimensions | 12 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Operating Temperature | -40 °F to 140 °F |
| Enclosure | Fully sealed, indoor/outdoor rated |
| Cable | 10 ft jacketed cable (pre-installed) |
| Release Type | Instant, no residual magnetism |
| Surge Protection | Built-in MOV |
| Fasteners | Collapsing blind nuts |
| PoE Compatible | No |
| Warranty | MagnaCare Lifetime Replacement |
| Origin | Made in Phoenix, AZ, USA |
| Certifications | UL 10C, ANSI/BHMA A156.23 Grade 1, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No.205, CSFM, CE |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1800 lbs. |
