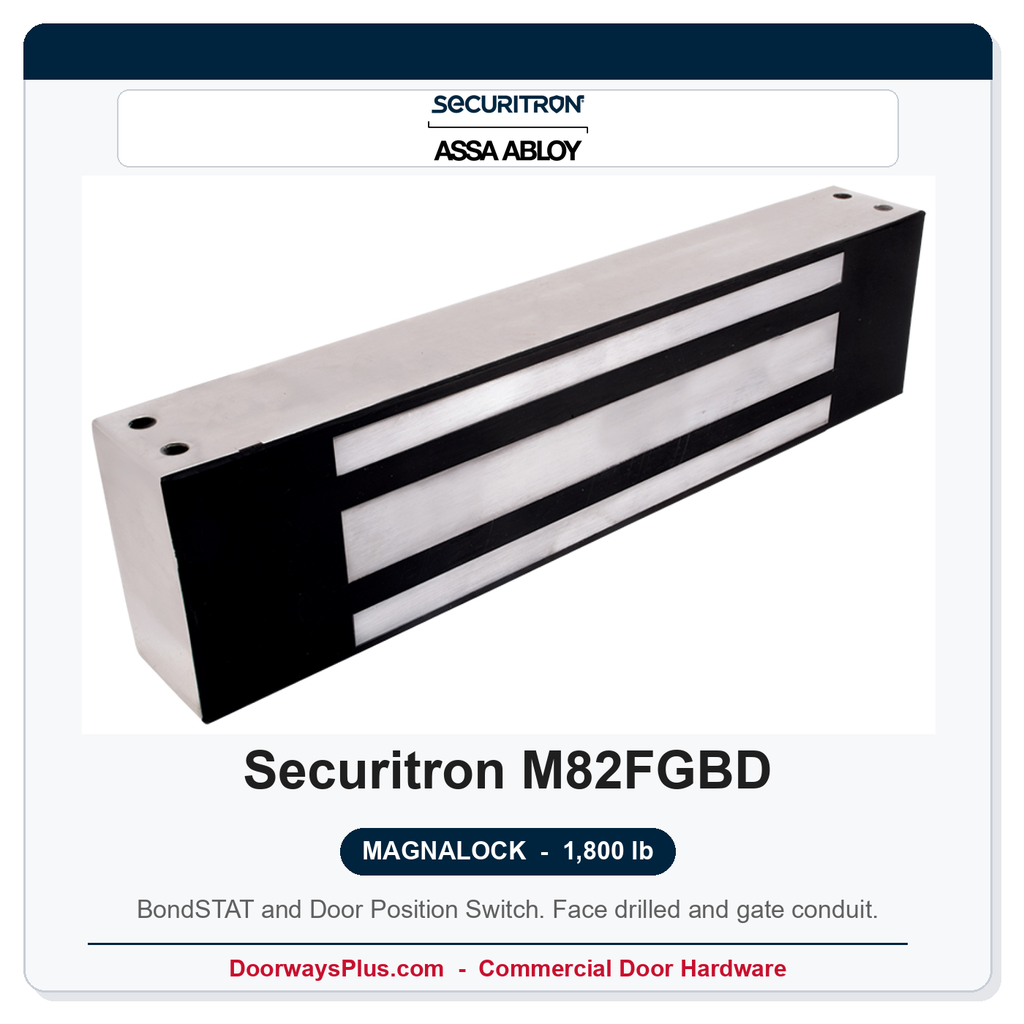

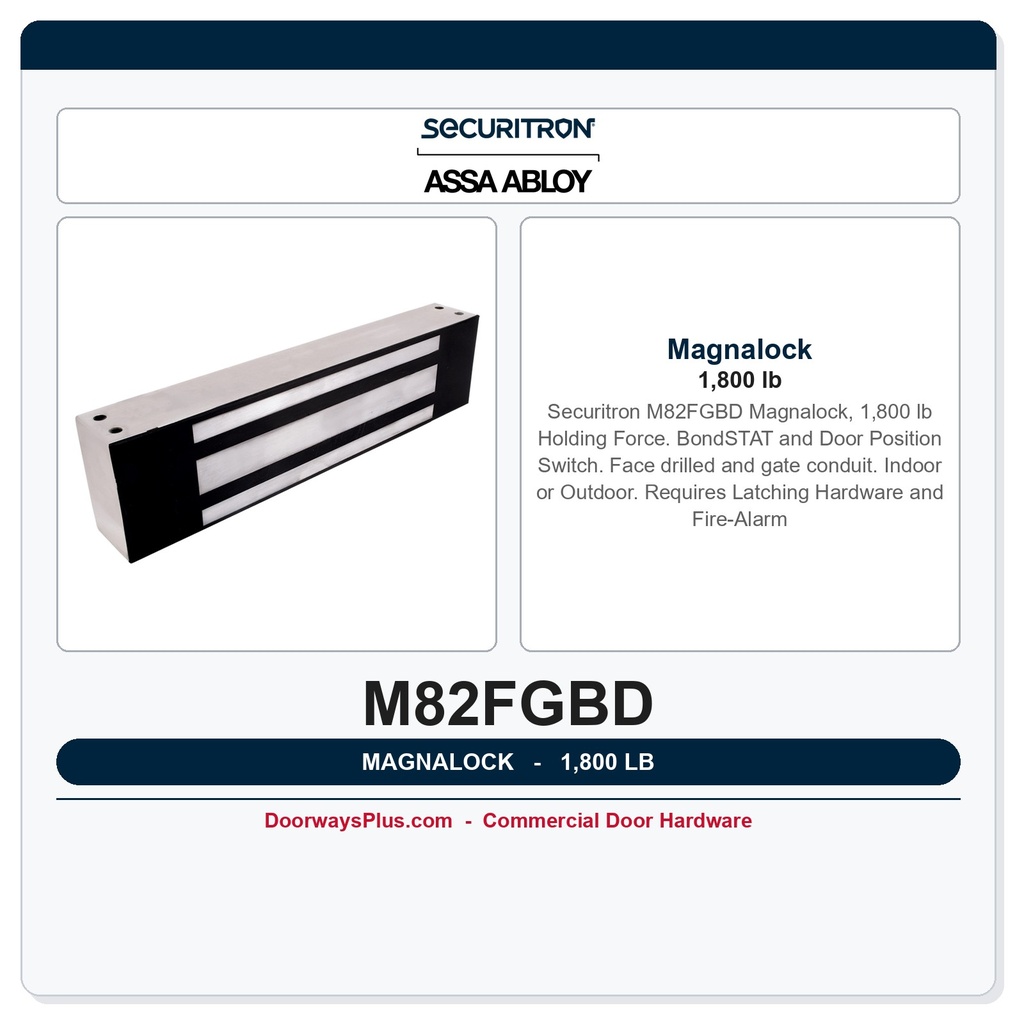

Securitron M82FGBD Magnalock – 1,800 lb Electromagnetic Lock with BondSTAT Bond Sensor and Integrated Door Position Switch
The Securitron M82FGBD Magnalock is a heavy-duty, 1,800 lb (816 kg) holding-force electromagnetic lock engineered for high-security commercial and institutional access control applications. This configuration is face drilled with gate conduit and includes two built-in diagnostic features: the BondSTAT bond sensor — which monitors the electromagnetic bond between the lock body and armature plate — and an integrated door position switch (DPS) that reports true door open/closed status to your access control system. Both sensors eliminate the need for separate add-on hardware, simplifying installation and panel wiring. Finished in 630 Satin Stainless (US32D) for clean, corrosion-resistant aesthetics suited to interior corridors, vestibules, secure perimeters, and outdoor gate applications alike.
Key Features & Benefits
- 1,800 lb Holding Force: ANSI/BHMA A156.23 Grade 1 rated (E08501-1500), delivering institutional-grade security on single doors, gates, and controlled-access openings.
- BondSTAT Bond Sensor: Continuously monitors magnet-to-armature contact quality, providing a supervisory signal to the access control panel — ideal for high-security and monitored egress applications.
- Integrated Door Position Switch: Eliminates a separate DPS device; reports true door status (open vs. closed) independently of lock energization, supporting alarms, audit trails, and propped-door monitoring.
- Automatic 12/24 VDC Operation: Auto-sensing power input — 350 mA at 12 VDC or 200 mA at 24 VDC — with no field voltage adjustment required, simplifying retrofit installations alongside existing power supplies.
- Instant Release, No Residual Magnetism: Drops immediately upon power interruption with zero magnetic remanence, ensuring rapid, compliant egress when integrated with fire-alarm release systems.
- Built-In MOV Protection: Transient voltage suppressor (MOV) protects control circuitry and connected access control equipment from voltage spikes.
- Fully Sealed, All-Environment Rated: Operates from -40°F to 140°F (-40°C to 60°C); fully sealed housing rated for indoor or outdoor use including gate and perimeter applications.
- UL 10C Listed: Compliant with positive-pressure fire-door requirements; also listed to CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No.205, CSFM, and CE.
- Collapsing Blind Nuts: Provide a secure, vibration-resistant mechanical fastening method into door frames and headers without through-bolting.
- MagnaCare Lifetime Replacement: Securitron's MagnaCare program backs this lock with a lifetime replacement warranty, reflecting the reliability of US-manufactured construction from Securitron's Phoenix facility.
- 10 ft Jacketed Cable: Pre-attached 10-foot jacketed lead cable streamlines rough-in and final connection to access control panels.
Important Application Notes
A magnetic lock is not a standalone egress solution. Per code, electromagnetic locks must be integrated with approved fire-alarm release, latching hardware, and compliant egress devices. A standalone push button alone does not constitute a code-compliant sole release. This model does not include an offset strike, split strike, or shock-absorbing strike — order strike accessories separately as required by your installation. This is not a PoE (Power over Ethernet) model; a dedicated 12 or 24 VDC power supply is required.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M82FGBD |
| Manufacturer | Securitron (Phoenix, AZ) |
| Holding Force | 1,800 lb (816 kg) |
| Configuration | Face drilled, gate conduit |
| Integrated Features | BondSTAT bond sensor, door position switch (DPS) |
| Voltage / Current | 12 VDC @ 350 mA or 24 VDC @ 200 mA (auto-sensing) |
| Body Dimensions | 12 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Environment | Indoor or outdoor; fully sealed |
| Lead Cable | 10 ft jacketed cable, pre-attached |
| UL Listing | UL 10C (positive-pressure fire door) |
| Additional Listings | CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No.205, CSFM, CE |
| ANSI/BHMA Grade | A156.23 Grade 1 (E08501-1500) |
| Warranty | MagnaCare Lifetime Replacement |
| Strikes Included | None (offset, split, and shock-absorbing strikes sold separately) |
| PoE Compatible | No |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1800 lbs. |
