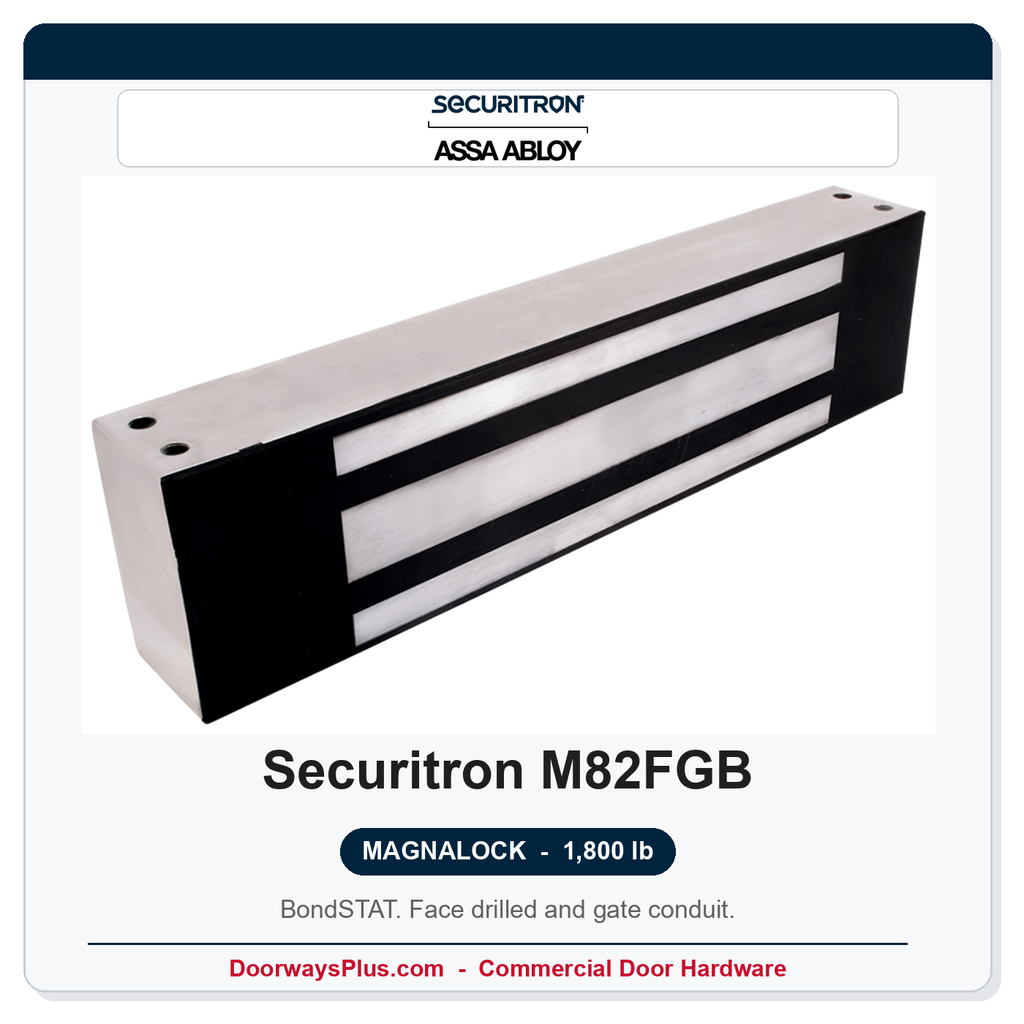

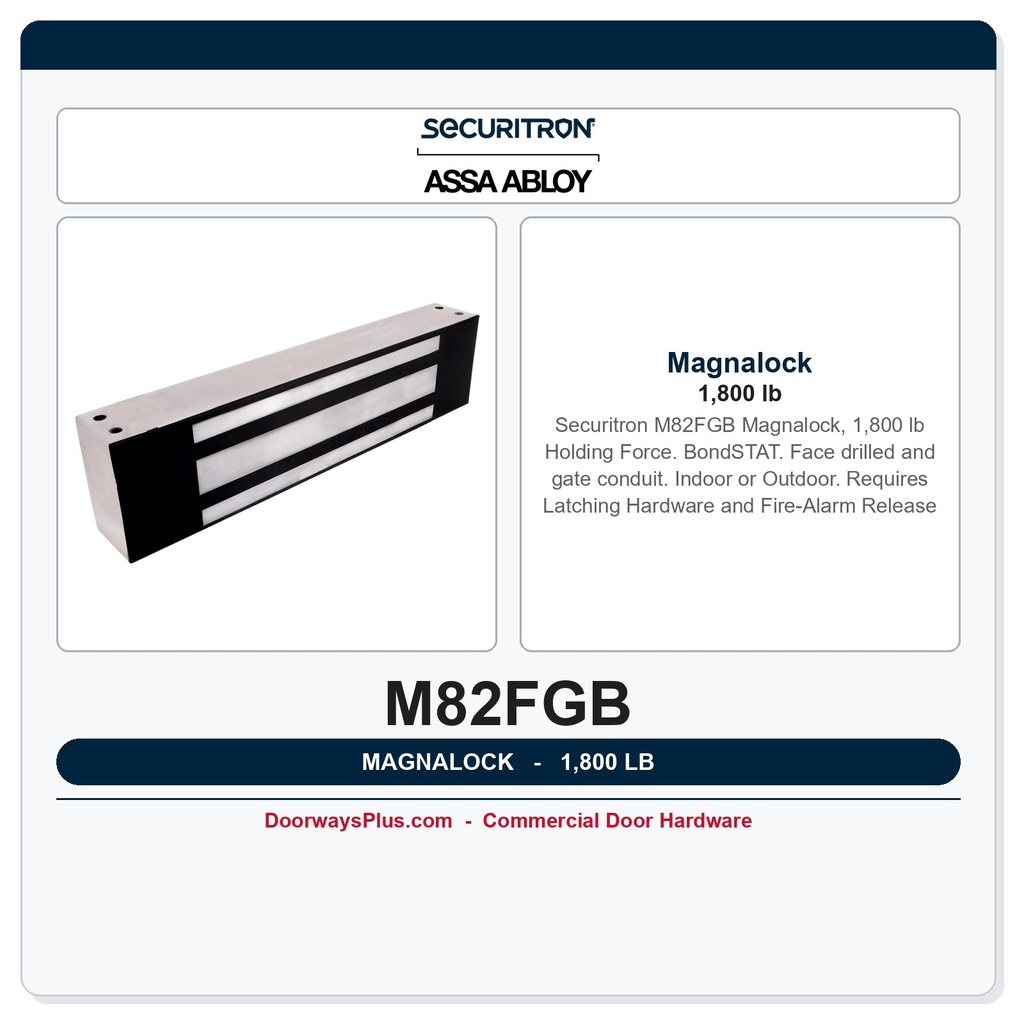

Securitron M82FGB Magnalock — 1,800 lb Electromagnetic Lock with BondSTAT Bond Sensor, Satin Stainless (630)
The Securitron M82FGB Magnalock is a heavy-duty, 1,800 lb (816 kg) holding-force electromagnetic lock engineered for high-security access control on commercial and industrial gates and doors. This listing is configured face drilled with gate conduit and includes the integrated BondSTAT bond sensor — providing real-time confirmation that the maglock armature is fully seated and the door is secure. Finished in 630 Satin Stainless (US32D), the M82FGB is rated for both indoor and outdoor installation across an operating range of -40°F to 140°F, making it one of the most environmentally versatile electromagnetic locks available for perimeter access control. Manufactured at Securitron's Phoenix, Arizona facility.
Key Features & Benefits
- 1,800 lb Holding Force: Industry-leading electromagnetic holding strength ideal for high-traffic or high-security entry points, gates, and perimeter doors.
- BondSTAT Bond Sensor: Built-in bond-status feedback signal confirms magnet-to-armature contact, enabling integration with access control panels for door-ajar monitoring and alarm functions.
- Automatic 12/24 VDC Operation: Accepts 12 VDC (350 mA) or 24 VDC (200 mA) without any field voltage adjustment — simplifies installation and reduces commissioning errors.
- Instant Release, No Residual Magnetism: Door releases immediately upon power interruption or authorized signal with no magnetic memory or stick delay, supporting life-safety egress compliance.
- Built-In MOV Transient Suppression: Metal oxide varistor protects control circuitry and connected electronics from voltage spikes at de-energization.
- Fully Sealed, All-Weather Housing: Operates reliably from -40°F to 140°F; suitable for outdoor gates, covered walkways, and harsh environments.
- Face Drilled & Gate Conduit Ready: Pre-configured mounting pattern and conduit entry simplify gate and swing-frame installations.
- Collapsing Blind Nuts: Self-anchoring fasteners allow secure mounting to hollow-section gate frames and thin substrates without rear access.
- 10 ft Jacketed Lead Cable: Factory-attached cable provides ample reach to junction boxes and control hardware with no field splicing required.
- MagnaCare Lifetime Replacement: Securitron's MagnaCare program covers the maglock for its service life — a strong indicator of long-term reliability.
- Multi-Standard Listed: UL 10C (positive-pressure fire door), ANSI/BHMA A156.23 Grade 1, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No.205, CSFM, and CE — specifiable for fire-rated and access-controlled openings across North America and international projects.
Important Application & Safety Notes
A magnetic lock alone is not a complete egress solution. It must be paired with compliant latching hardware and connected to the fire-alarm release system so the lock fails safe (de-energizes) on alarm. A standalone push button does not constitute the sole means of egress release on a fire-rated or life-safety opening. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately as required by your opening condition. This unit is not a PoE (Power over Ethernet) model; a dedicated low-voltage power supply is required. Do not use lithium or NiMH batteries with AQD or AQS series Securitron power supplies.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M82FGB |
| Brand / Manufacturer | Securitron (Phoenix, AZ) |
| Holding Force | 1,800 lb (816 kg) |
| Mounting Configuration | Face drilled, gate conduit |
| Bond Sensor | BondSTAT (integrated) |
| Input Voltage | 12 VDC or 24 VDC, automatic — no field adjustment |
| Current Draw | 350 mA @ 12 VDC / 200 mA @ 24 VDC |
| Body Dimensions | 12 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Installation Environment | Indoor or outdoor, fully sealed |
| Operating Temperature | -40°F to 140°F |
| Lead Cable | 10 ft jacketed |
| Residual Magnetism | None — instant release |
| Transient Protection | Built-in MOV |
| Fastener System | Collapsing blind nuts |
| PoE Compatible | No |
| Warranty | MagnaCare lifetime replacement |
| Listings & Certifications | UL 10C, ANSI/BHMA A156.23 Grade 1 (E08501-1500), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No.205, CSFM, CE |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1800 lbs. |
