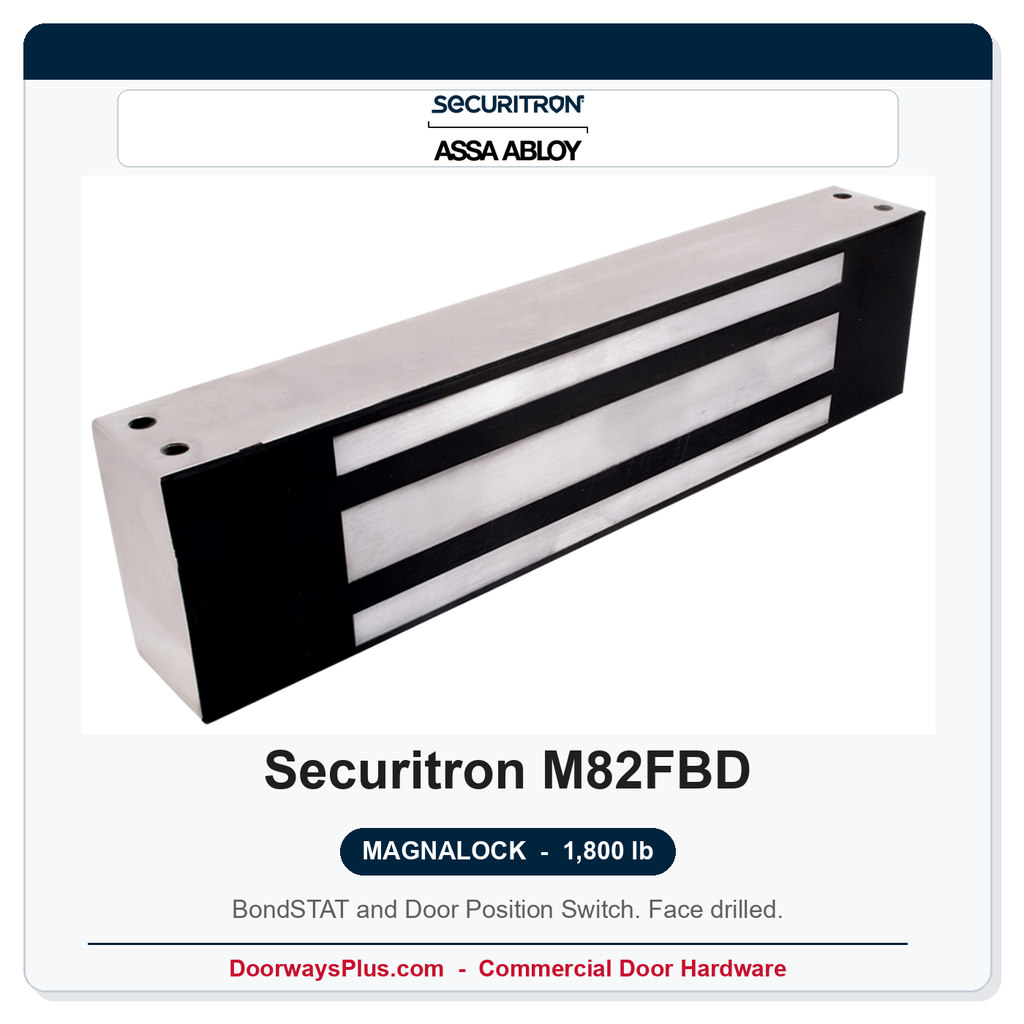

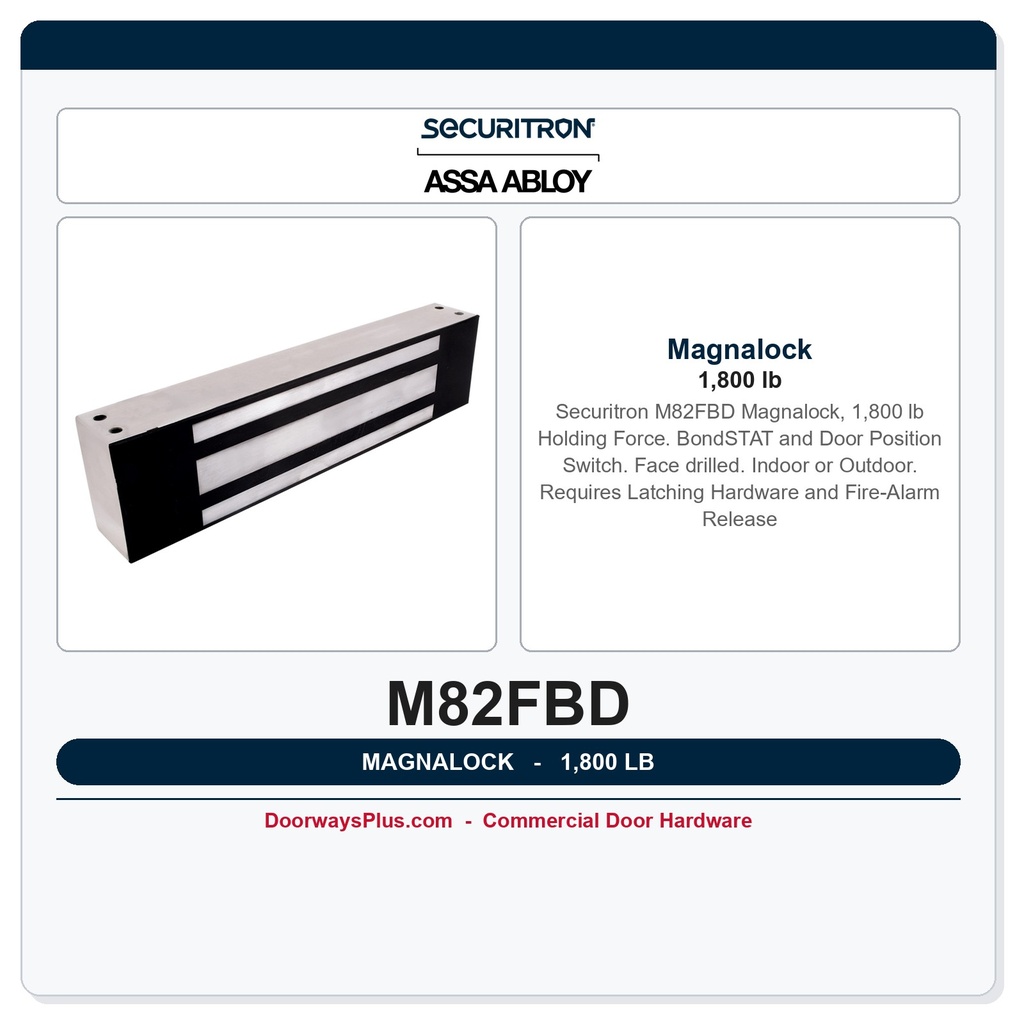

Securitron M82FBD Magnalock – 1,800 lb Electromagnetic Lock with BondSTAT Bond Sensor and Integrated Door Position Switch
The Securitron M82FBD Magnalock is a heavy-duty, 1,800 lb (816 kg) holding-force electromagnetic lock engineered for high-security commercial and institutional access control applications. This listing is the face-drilled configuration, factory-equipped with Securitron's BondSTAT bond sensor and an integrated door position switch (DPS) — two critical supervisory features that confirm both magnet-to-armature bond integrity and door open/closed status, all from a single unit. Built at Securitron's Phoenix, Arizona facility and backed by the MagnaCare lifetime replacement warranty, the M82FBD is a Grade 1 electromagnetic lock suitable for demanding indoor and outdoor installations worldwide.
Key Features & Benefits
- 1,800 lb Holding Force: Provides robust, tamper-resistant door security appropriate for high-traffic commercial entrances, data centers, government facilities, and other access-controlled openings.
- BondSTAT Bond Sensor: Continuously monitors the electromagnetic bond between the maglock body and armature plate, enabling the access control system to detect if the lock is not fully engaged — a critical supervisory layer for life-safety and compliance.
- Integrated Door Position Switch: Reports door open/closed status directly to your access control panel without a separate surface-mounted DPS, reducing installation hardware and wiring complexity.
- Automatic 12/24 VDC Operation: Accepts either 12 VDC (350 mA) or 24 VDC (200 mA) without any field voltage adjustment, simplifying integration with virtually any access control power supply.
- Instant Release, No Residual Magnetism: Door releases immediately upon power interruption — no sticking or delayed egress from residual magnetic flux.
- Fully Sealed Body: Rated for outdoor use; operating temperature range –40 °F to +140 °F makes it suitable for exterior vestibules, parking structures, cold-storage corridors, and harsh environments.
- Built-In MOV Transient Suppression: Metal Oxide Varistor protects electronics and connected control equipment from voltage spikes.
- Collapsing Blind Nuts: Facilitate clean, secure mounting to hollow metal and aluminum frames without backing plates.
- 10 ft Jacketed Cable: Pre-attached, jacketed flying leads simplify wiring to junction boxes and control panels.
- MagnaCare Lifetime Replacement: Industry-leading warranty program covers the electromagnetic lock body for the life of the installation.
Certifications & Standards Compliance
The M82FBD is UL 10C listed (positive-pressure fire door rated) and meets ANSI/BHMA A156.23 Grade 1 (the highest performance classification for electromagnetic locks). Additional listings include ANSI/UL 294 (access control systems), CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, and CE — covering U.S., Canadian, and international markets.
Important Application & Egress Notes
A magnetic lock is not a standalone egress solution. It must be used in combination with approved latching hardware and integrated into a fire-alarm release system to comply with NFPA 101 and applicable building codes. A standalone push button does not constitute a compliant sole-means of egress release. This model does not include an offset strike, split strike, or shock-absorbing strike — order armature and strike accessories separately as required. Not a Power-over-Ethernet (PoE) device.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M82FBD |
| Brand / Manufacturer | Securitron (Phoenix, AZ) |
| Holding Force | 1,800 lb (816 kg) |
| Voltage / Current | 350 mA @ 12 VDC | 200 mA @ 24 VDC (automatic, no field adjustment) |
| Body Dimensions | 12 in L × 3 in H × 2-3/4 in D |
| Finish (This Listing) | 630 Satin Stainless (US32D) |
| Integrated Features | BondSTAT bond sensor; door position switch (DPS); face-drilled |
| Operating Temperature | –40 °F to +140 °F |
| Environment Rating | Fully sealed; indoor or outdoor |
| Cable | 10 ft jacketed flying leads |
| Transient Protection | Built-in MOV |
| Mounting | Collapsing blind nuts |
| Warranty | MagnaCare lifetime replacement |
| UL Fire Listing | UL 10C (positive-pressure fire doors) |
| ANSI/BHMA Grade | Grade 1 — ANSI/BHMA A156.23 (E08501-1500) |
| Additional Listings | ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, CE |
| PoE Compatible | No |
| Strike Included | No (offset, split, or shock-absorbing strike sold separately) |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1800 lbs. |
