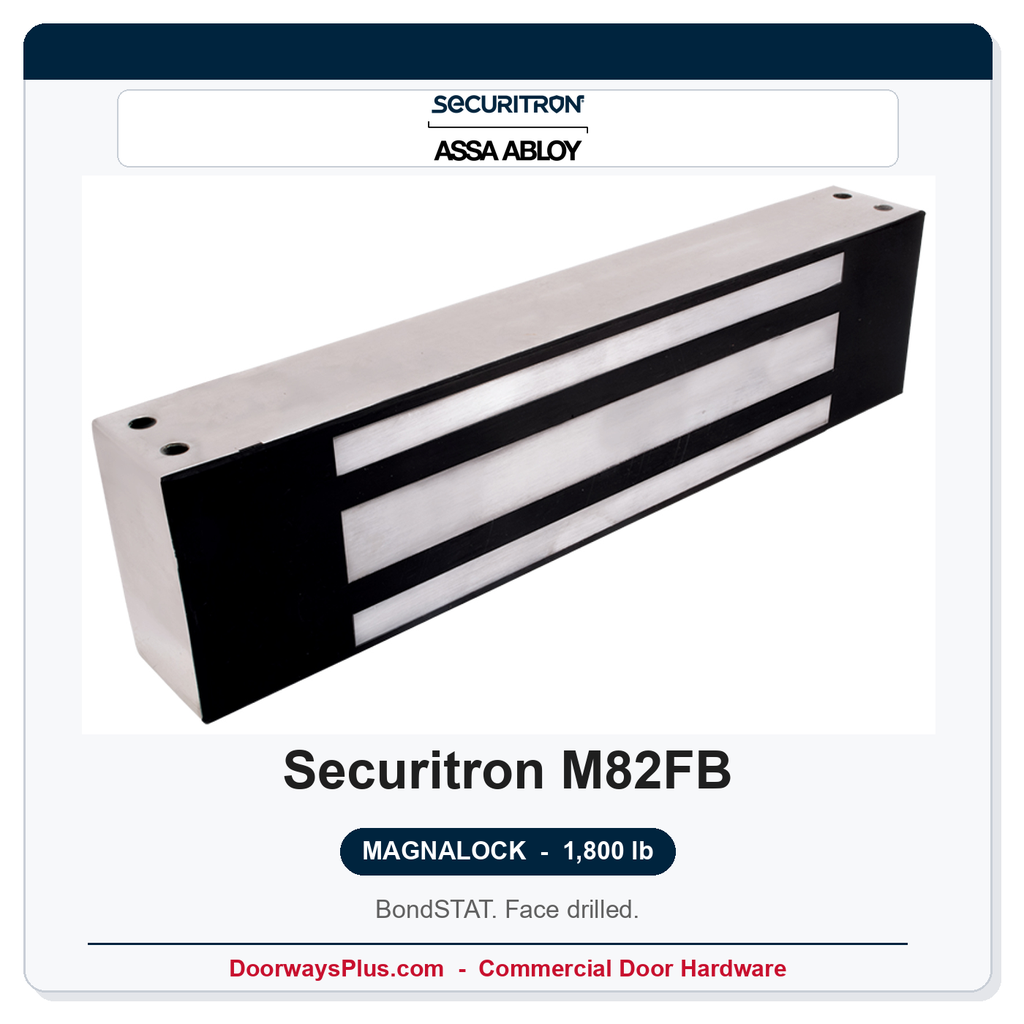

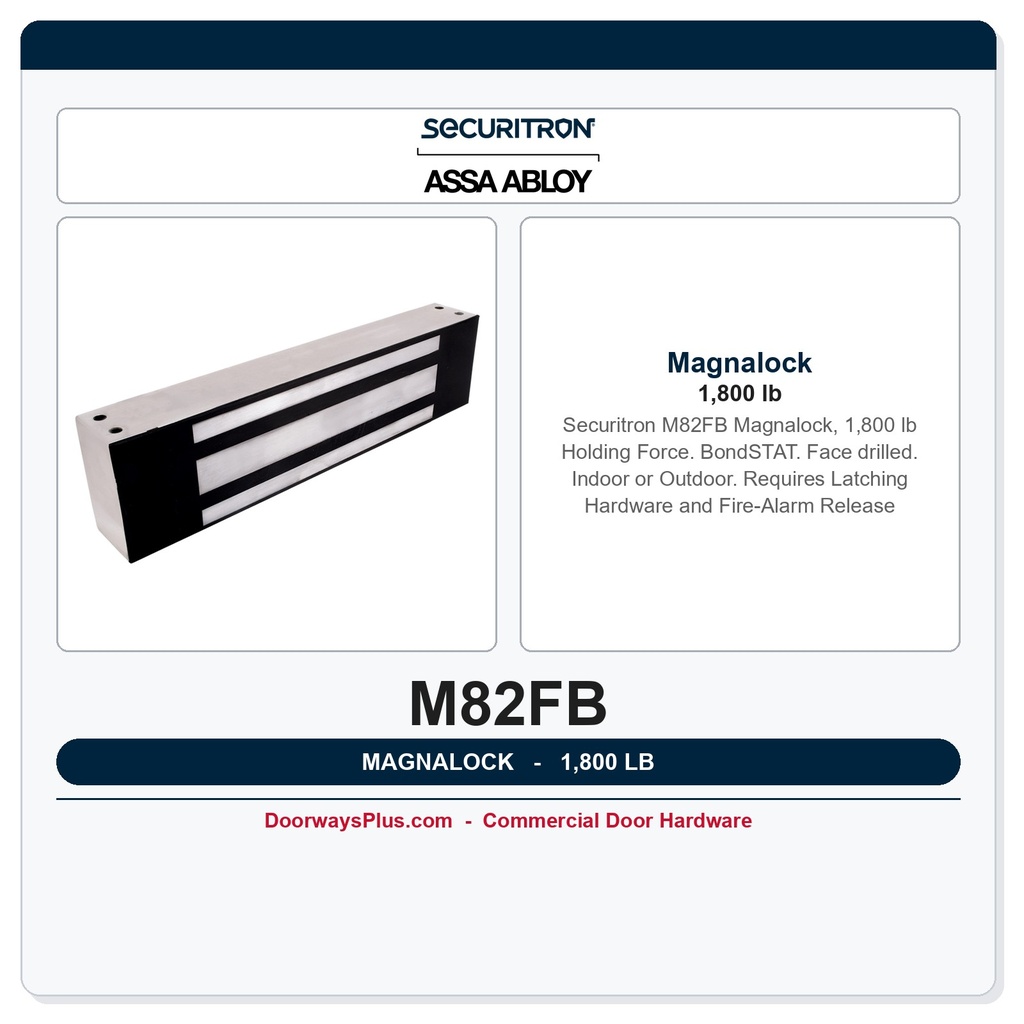

Securitron M82FB Magnalock – 1,800 lb Electromagnetic Lock with BondSTAT Bond Sensor | 630 Satin Stainless

The Securitron M82FB Magnalock is a heavy-duty, 1,800 lb (816 kg) holding-force electromagnetic lock engineered for demanding commercial and institutional access-control applications. This listing is face-drilled and factory-fitted with the BondSTAT bond sensor, which confirms positive door closure and lock engagement — providing a real-time door-status signal to your access-control system without an external door position switch. Finished in 630 Satin Stainless (US32D), the M82FB is equally at home on interior corridors and harsh exterior openings, with a fully sealed body rated for operating temperatures from -40 °F to 140 °F. Built and tested at Securitron's Phoenix, Arizona factory, the M82FB carries the MagnaCare lifetime replacement warranty.

Key Features & Benefits

• 1,800 lb Holding Force: Provides institutional-grade security suitable for high-traffic commercial doors, stairwells, and controlled-access corridors.
• BondSTAT Bond Sensor (Face-Drilled): Integrated door-status feedback confirms the magnet is fully bonded to the armature plate — eliminating the need for a separate door position switch and simplifying system wiring.
• Automatic 12/24 VDC Operation: Draws 350 mA at 12 VDC or 200 mA at 24 VDC; automatically senses supply voltage with no field adjustment required, simplifying retrofit and new-construction installs.
• Instant Release / No Residual Magnetism: Drops the door immediately on signal loss — no delay, no holding force after de-energization, supporting compliant egress sequencing.
• Built-In MOV: Metal-oxide varistor suppresses voltage transients at the coil, protecting both the lock and connected control equipment.
• Fully Sealed Body: Weather-resistant construction rated for indoor and outdoor use across a -40 °F to 140 °F operating range.
• Collapsing Blind Nuts: Simplify mounting to hollow metal doors and frames without special backing hardware.
• 10 ft Jacketed Cable: Pre-attached lead cable provides adequate routing length for most door installations out of the box.
• MagnaCare Lifetime Replacement: Backed by Securitron's industry-recognized lifetime warranty program.
• Made in the USA: Manufactured in Securitron's Phoenix, Arizona factory.

Certifications & Listings

The M82FB is UL 10C listed (positive-pressure fire door), ANSI/BHMA A156.23 Grade 1 (E08501-1500), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, and CE marked — meeting the broadest combination of US, Canadian, and international access-control and fire-door standards in the industry.

Applications

• Commercial office buildings and campus access-control
• Healthcare, education, and government facilities requiring UL 10C fire-door compliance
• Stairwell and exit-corridor doors with access-control integration
• Exterior openings where weather resistance and vandal resistance are required
• Any opening where door-status monitoring (BondSTAT) is mandated by the access-control system

Important Egress & Installation Notes

An electromagnetic lock is not a complete egress solution on its own. The M82FB must be paired with appropriate latching hardware and fire-alarm release per local codes. A standalone push button is not an acceptable sole means of egress release. This model does not include an offset strike, split strike, or shock-absorbing strike — order those components separately as required by your opening. The M82FB is not a PoE (Power over Ethernet) model. Do not use lithium or NiMH batteries with Securitron AQD or AQS power supplies in the same system.
