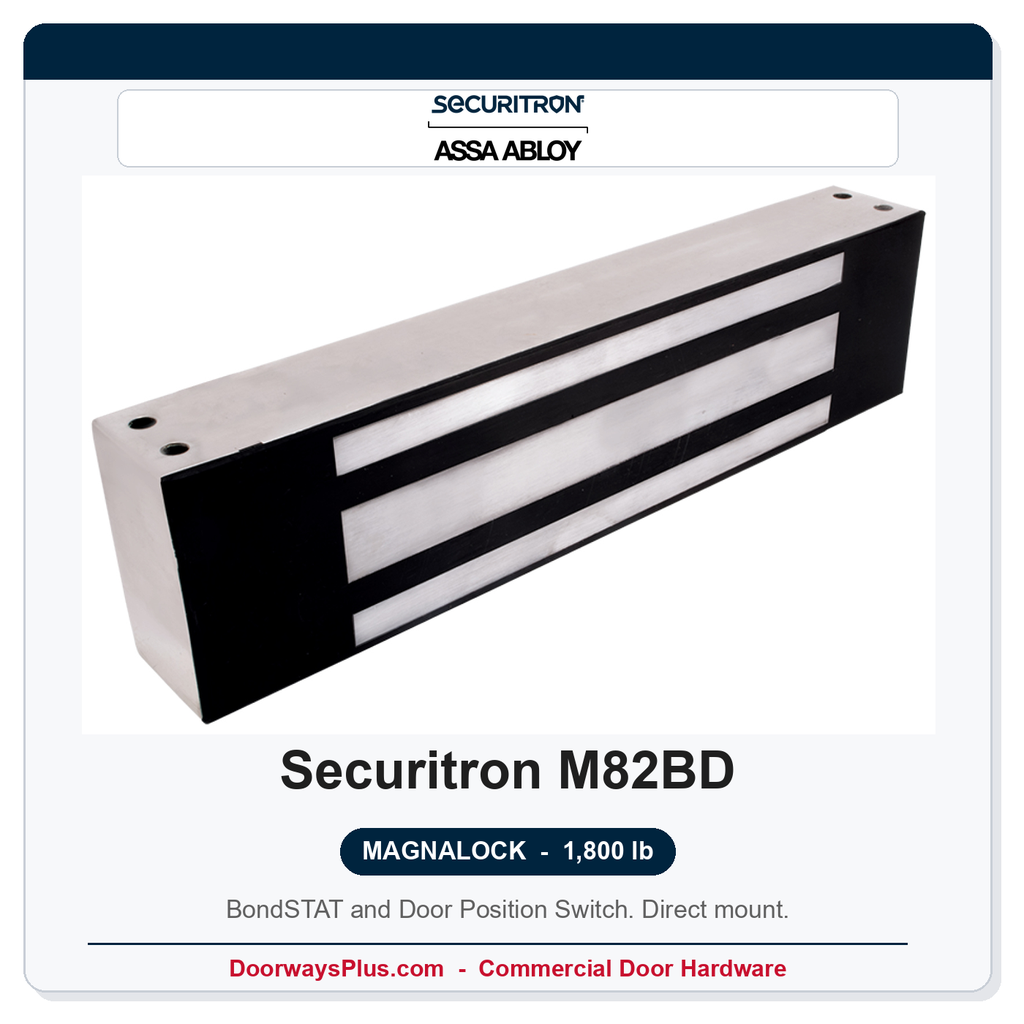

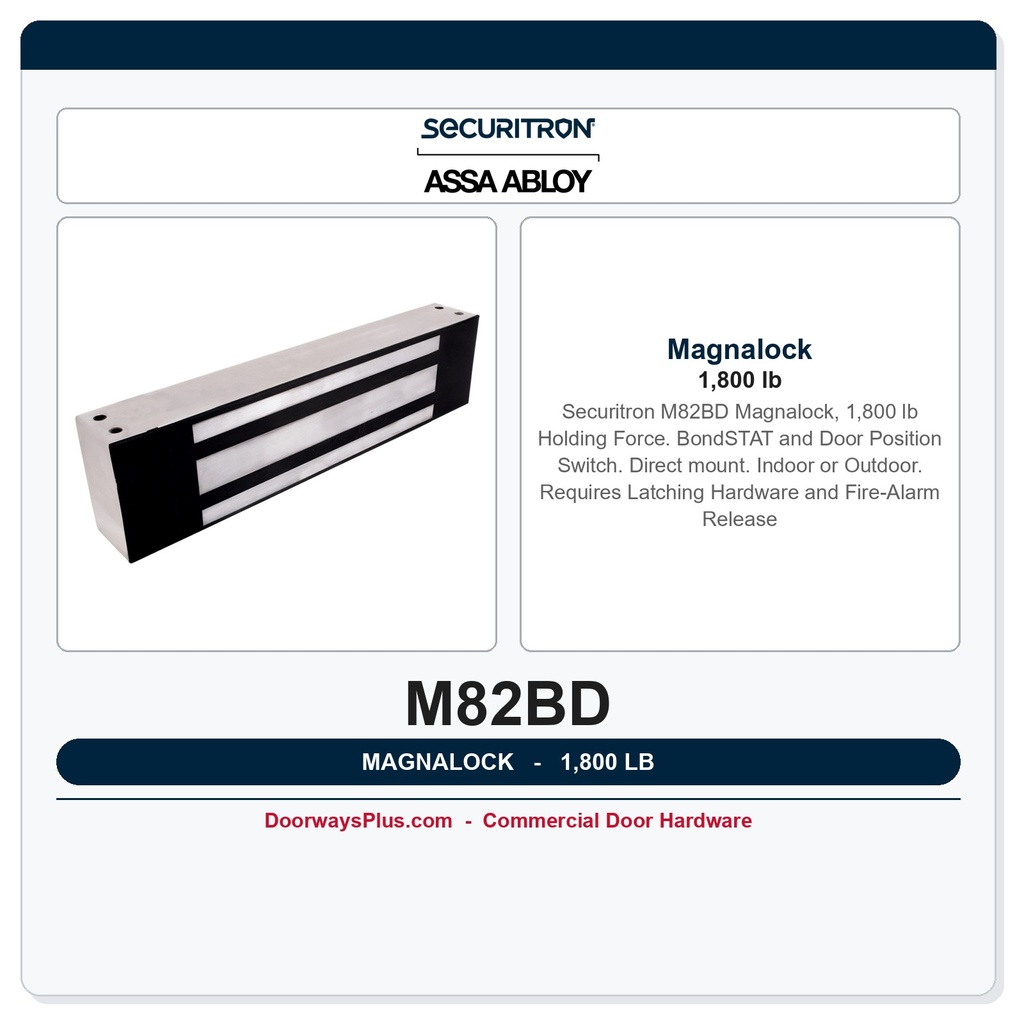

Securitron M82BD Magnalock — 1,800 lb Electromagnetic Lock with BondSTAT & Door Position Switch
The Securitron M82BD is a heavy-duty, direct-mount electromagnetic lock delivering a verified 1,800 lb (816 kg) holding force — one of the most powerful maglocks in the M82 series. This listing includes the standard strike, an integrated BondSTAT bond sensor for continuous bond monitoring, and a built-in door position switch (DPS), giving access control systems real-time status on both magnetic bond integrity and door open/closed state. Finished in 630 Satin Stainless (US32D) and manufactured at Securitron's Phoenix, AZ facility, the M82BD is engineered for demanding commercial, institutional, and high-security applications — indoors or out.
Key Features & Benefits
- 1,800 lb Holding Force: Institutional-grade security for high-traffic or high-risk openings requiring maximum electromagnetic holding strength.
- BondSTAT Bond Sensor: Continuously monitors the electromagnetic bond between lock body and strike plate; signals the access control system if the bond is compromised — critical for alarm and monitoring integration.
- Integrated Door Position Switch: Provides a discrete output indicating door open or closed status, eliminating the need for a separate DPS device and simplifying wiring.
- Automatic 12/24 VDC Operation: Accepts 12 VDC (350 mA) or 24 VDC (200 mA) with no field voltage adjustment required — simplifies installation across mixed-voltage panels.
- Instant Release, No Residual Magnetism: Drops instantly on power loss with no magnetic remanence, supporting clean fail-safe egress.
- Built-In MOV: Metal oxide varistor protects against voltage transients and extends system component life.
- Fully Sealed Enclosure: Rated for -40°F to 140°F (-40°C to 60°C) operating range; suitable for exterior vestibule, parking structure, and harsh-environment applications.
- Collapsing Blind Nuts: Simplify surface mounting and provide secure, vibration-resistant fastening to the door frame or header.
- 10 ft Jacketed Cable: Pre-attached lead wire for clean, protected routing to the control panel.
- MagnaCare Lifetime Replacement Warranty: Securitron's industry-recognized replacement program for the lock body.
- Made in Phoenix, AZ: Domestic manufacture supporting Buy American compliance on applicable projects.
Certifications & Standards
- UL 10C Listed — Positive Pressure Fire Door assemblies
- ANSI/BHMA A156.23 Grade 1 (E08501-1500) — highest electromagnetic lock performance grade
- ANSI/UL 294 — Access Control System Units
- CAN4-S104 / CAN/ULC-S533 — Canadian fire and burglary standards
- CSA C22.2 No. 205 — Signal Equipment
- CSFM — California State Fire Marshal listed
- CE — European conformity
Important Application Notes
An electromagnetic lock is not a complete egress solution on its own. Per applicable fire and life-safety codes, the M82BD must be integrated with latching hardware and a fire-alarm release (power-off on alarm). A standalone push button does not satisfy code as the sole means of egress release. This model does not include offset strike, split strike, or shock-absorbing strike — order separately if required. This is not a PoE (Power over Ethernet) model. Do not use lithium or NiMH batteries with AQD or AQS power supplies in the same system.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M82BD |
| Manufacturer | Securitron (Phoenix, AZ) |
| Holding Force | 1,800 lb (816 kg) |
| Mount Type | Direct Mount, Standard Strike |
| Integrated Features | BondSTAT Bond Sensor, Door Position Switch |
| Voltage / Current | 12 VDC @ 350 mA or 24 VDC @ 200 mA (automatic, no field adjustment) |
| Body Dimensions | 12 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Environment | Indoor or Outdoor; Fully Sealed |
| Lead Cable | 10 ft jacketed cable (pre-attached) |
| PoE Compatible | No |
| Included Strike | Standard strike (no offset, split, or shock-absorbing strike) |
| Warranty | MagnaCare Lifetime Replacement |
| Certifications | UL 10C, ANSI/BHMA A156.23 Grade 1, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No.205, CSFM, CE |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1800 lbs. |
