Securitron M68LS Magnalock 1,200 lb | LED, Senstat

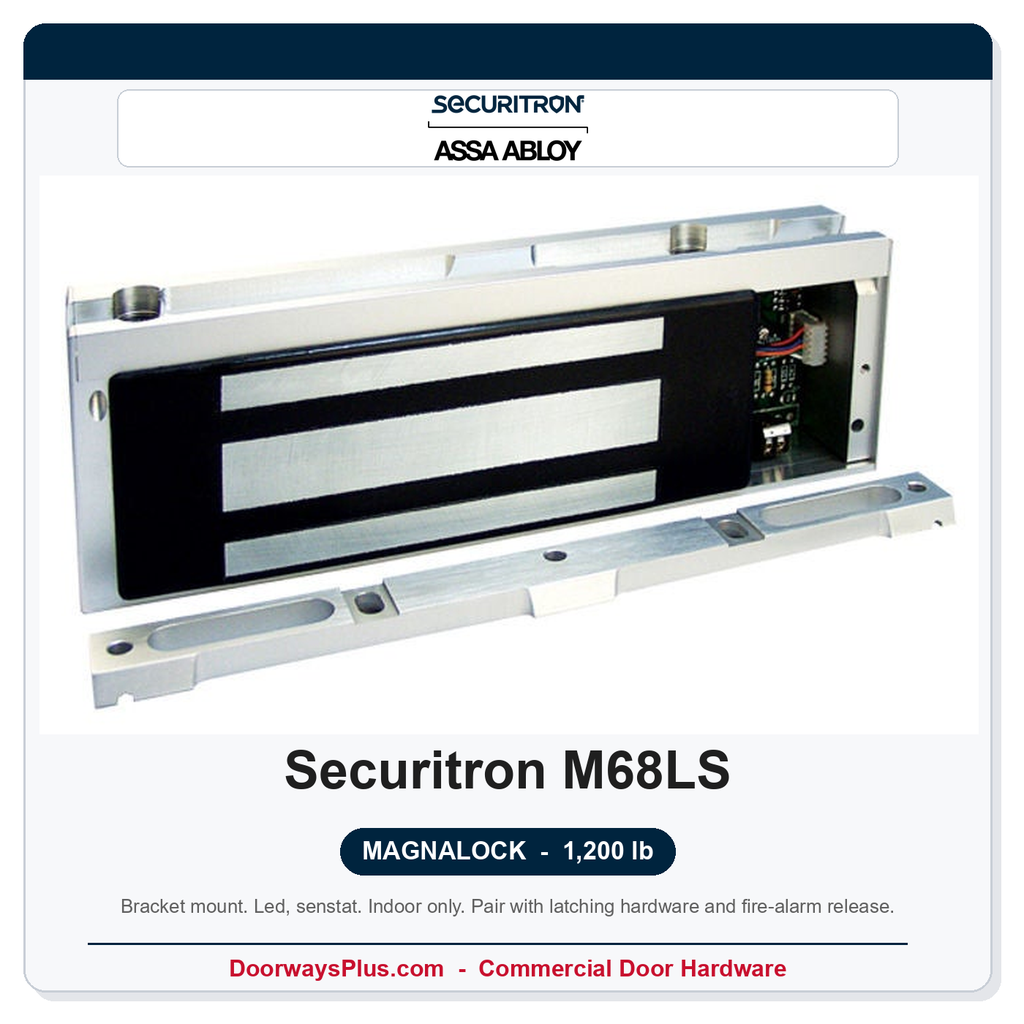

The Securitron M68LS is a heavy-duty, bracket-mount electromagnetic lock delivering 1,200 lb of holding force for commercial and institutional access-control applications. Designed for indoor use only, the M68LS features automatic 12/24 VDC operation, a built-in LED status indicator, and Senstat® door-position sensing — giving access-control panels real-time feedback on door status without a separate sensor. This listing is finished in 630 Satin Stainless and ships as a bracket-mount configuration, suitable for in-swing or angled door installations where a standard surface-mount Magnalock cannot be used. Note: Senstat is distinct from BondSTAT technology; confirm controller compatibility before specifying.
Key Features & Benefits
- 1,200 lb Holding Force: Meets demanding security requirements for high-traffic commercial doors, stairwells, and controlled-access corridors.
- Bracket-Mount Configuration: Accommodates doors where the lock body cannot mount flush to the frame face — ideal for angled frames, narrow stops, or specialized door conditions.
- Automatic 12/24 VDC Operation: Auto-sensing input accepts either 12 VDC (250 mA) or 24 VDC (125 mA), simplifying integration with a wide range of access-control power supplies.
- Built-In LED Indicator: Provides instant visual confirmation of lock energized/de-energized state for installers and service technicians.
- Senstat Door-Position Sensor: Monitors armature plate contact and reports door position to the access-control system — supporting audit trails and alarm functions without an add-on sensor.
- UL 10C Listed – 1-Hour Fire Rating: Suitable for use on 1-hour fire-rated door assemblies when installed per listing requirements.
- ANSI/BHMA A156.23 Grade 2 Compliant: Independently tested and certified to Grade 2 electromagnetic lock performance standards (E18501-1000).
- Wide Operating Temperature Range: Rated 32°F to 110°F for reliable indoor performance across HVAC-controlled commercial environments.
- Compact Body Profile: At 10-1/2 in long × 3-5/8 in high × 2 in deep, the M68LS fits cleanly on standard commercial door frames with minimal visual intrusion.
Applications
The M68LS is well-suited for commercial office buildings, healthcare facilities, schools, government buildings, and multi-tenant access-control systems where a bracket-mount maglock is required. Always pair with code-compliant egress hardware — a maglock is not a standalone egress solution. Integrate with a fire-alarm release (fail-safe) and approved latching hardware to meet local life-safety and building code requirements. A push button alone does not constitute an approved means of egress release; consult local AHJ for egress compliance.
Technical Details
| Feature | Details |
|---|---|
| Model | Securitron M68LS |
| Series | Magnalock |
| Mount Type | Bracket Mount |
| Holding Force | 1,200 lb |
| Voltage Input | Automatic 12/24 VDC |
| Current Draw | 250 mA @ 12 VDC / 125 mA @ 24 VDC |
| Body Dimensions | 10-1/2 in L × 3-5/8 in H × 2 in D |
| Finish | 630 Satin Stainless |
| Features | LED Status Indicator, Senstat Door-Position Sensor |
| Fire Rating | UL 10C – 1-Hour |
| Standard | ANSI/BHMA A156.23 Grade 2 (E18501-1000) |
| Operating Temperature | 32°F to 110°F |
| Indoor/Outdoor | Indoor Only — not weatherproof |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | LED |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
