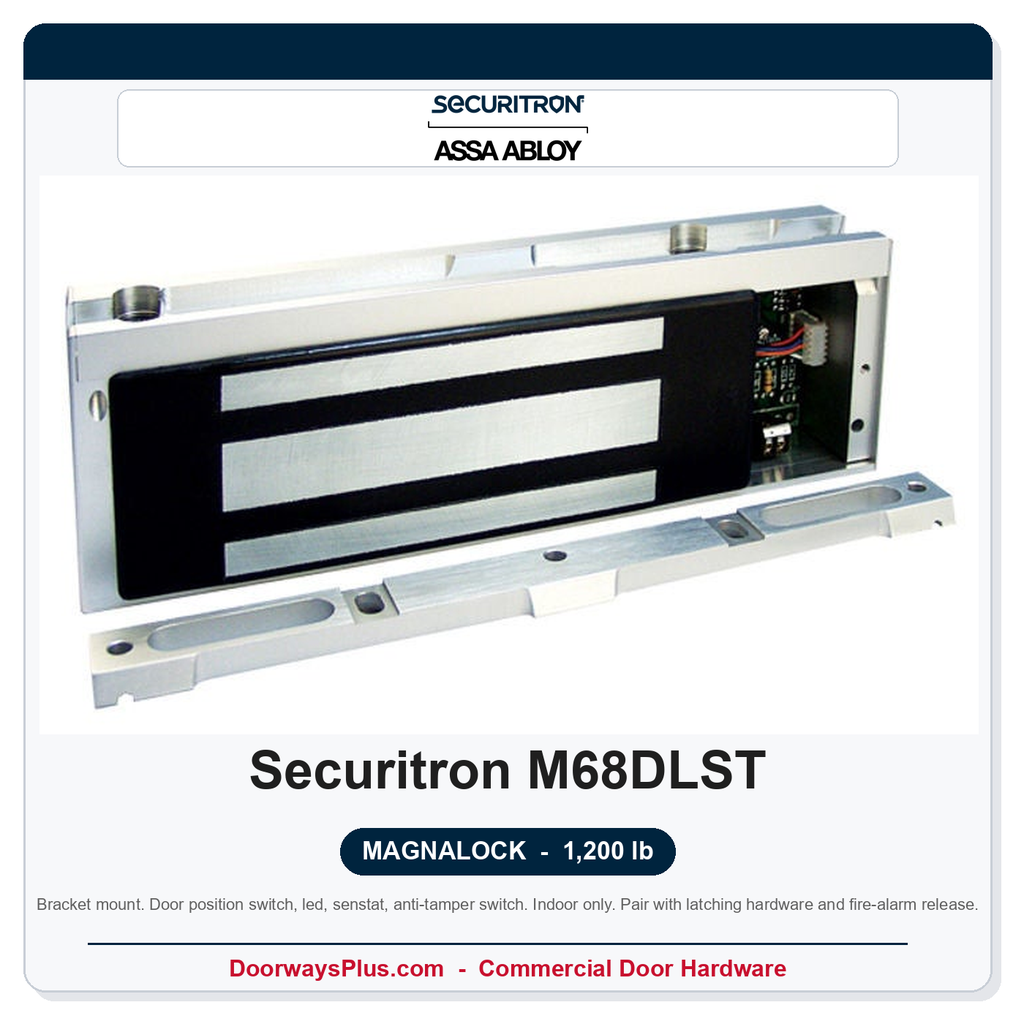

Securitron M68DLST Magnalock 1,200 lb | LED, Door Position Switch, Senstat, Anti-Tamper
Securitron M68DLST Magnalock, 1,200 lb Holding Force, with LED, Door Position Switch, Senstat, and Anti-Tamper. Indoor Bracket Mount. Requires Latching Hardware and Fire-Alarm Release.
**** Lead Time: 1-3 Weeks ****
Securitron M68DLST Magnalock 1,200 lb | LED, Door Position Switch, Senstat, Anti-Tamper
The Securitron M68DLST is a high-security, bracket-mount electromagnetic lock delivering a robust 1,200 lb holding force for commercial and institutional access control applications. Designed for indoor use only, this Magnalock ships in a 630 satin stainless finish and incorporates an integrated suite of monitoring and safety features — including a door position switch, LED status indicator, Senstat sensor technology, and an anti-tamper switch — making it well-suited for high-traffic entryways, secured corridors, and controlled-access areas where real-time door status feedback is essential.
The M68DLST operates on automatic 12/24 VDC sensing (250 mA at 12 VDC; 125 mA at 24 VDC), simplifying integration with both legacy and modern access control panels. Its compact body — 10-1/2 in long × 3-5/8 in high × 2 in deep — makes installation practical in space-constrained head frames, while the bracket-mount configuration accommodates door conditions where inline mounting is not feasible.
Important code and egress note: An electromagnetic lock is not a standalone egress solution. This device must be paired with appropriate latching hardware and a fire-alarm release interface to comply with applicable life-safety codes. A standalone push button does not constitute a code-compliant sole means of egress release. Consult local AHJ requirements and NFPA 101 before specifying.
Key Features & Benefits
- 1,200 lb Holding Force: Provides high-security holding strength suited for commercial-grade access control on single doors.
- Bracket-Mount Configuration: Enables installation on doors where direct inline mounting is not possible, expanding application flexibility.
- Integrated Door Position Switch: Continuously monitors door open/closed status, supporting access control system integration and audit logging.
- LED Status Indicator: Provides at-a-glance visual confirmation of lock engagement for security staff and installers.
- Senstat Technology: Monitors armature-plate contact quality to help ensure reliable lock engagement is reported back to the control system. Note: Senstat is not BondSTAT.
- Anti-Tamper Switch: Detects unauthorized attempts to remove or manipulate the lock body, triggering a supervisory signal to the access control system.
- Automatic 12/24 VDC Sensing: Auto-detects supply voltage, reducing installation errors and simplifying compatibility with varied power supplies.
- UL 10C Listed – 1-Hour Fire Rating: Verified for use on 1-hour fire-rated door assemblies when installed per listing requirements.
- ANSI/BHMA A156.23 Grade 2 Certified: Meets recognized industry performance standards (E18501-1000) for electromagnetic locks.
- 630 Satin Stainless Finish: Corrosion-resistant, professional appearance appropriate for institutional and commercial environments.
Applications
- Secured office entryways and interior access-controlled corridors
- Government, healthcare, and education facilities requiring monitored access
- Data centers and server rooms
- Interior stairwell and utility access doors
- Any indoor application requiring monitored, high-force electromagnetic locking
Technical Details
| Feature | Details |
|---|---|
| Model Number | M68DLST |
| Brand / Series | Securitron Magnalock |
| Holding Force | 1,200 lb |
| Mount Type | Bracket mount |
| Finish | 630 Satin Stainless |
| Voltage | Automatic 12/24 VDC |
| Current Draw | 250 mA at 12 VDC / 125 mA at 24 VDC |
| Body Dimensions | 10-1/2 in L × 3-5/8 in H × 2 in D |
| Integrated Features | Door position switch, LED indicator, Senstat, anti-tamper switch |
| Operating Temperature | 32°F to 110°F (0°C to 43°C) |
| Fire Rating | UL 10C, 1-Hour |
| ANSI/BHMA | A156.23 Grade 2 (E18501-1000) |
| Indoor / Outdoor | Indoor use only — not weatherproof |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Door Status, LED |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
