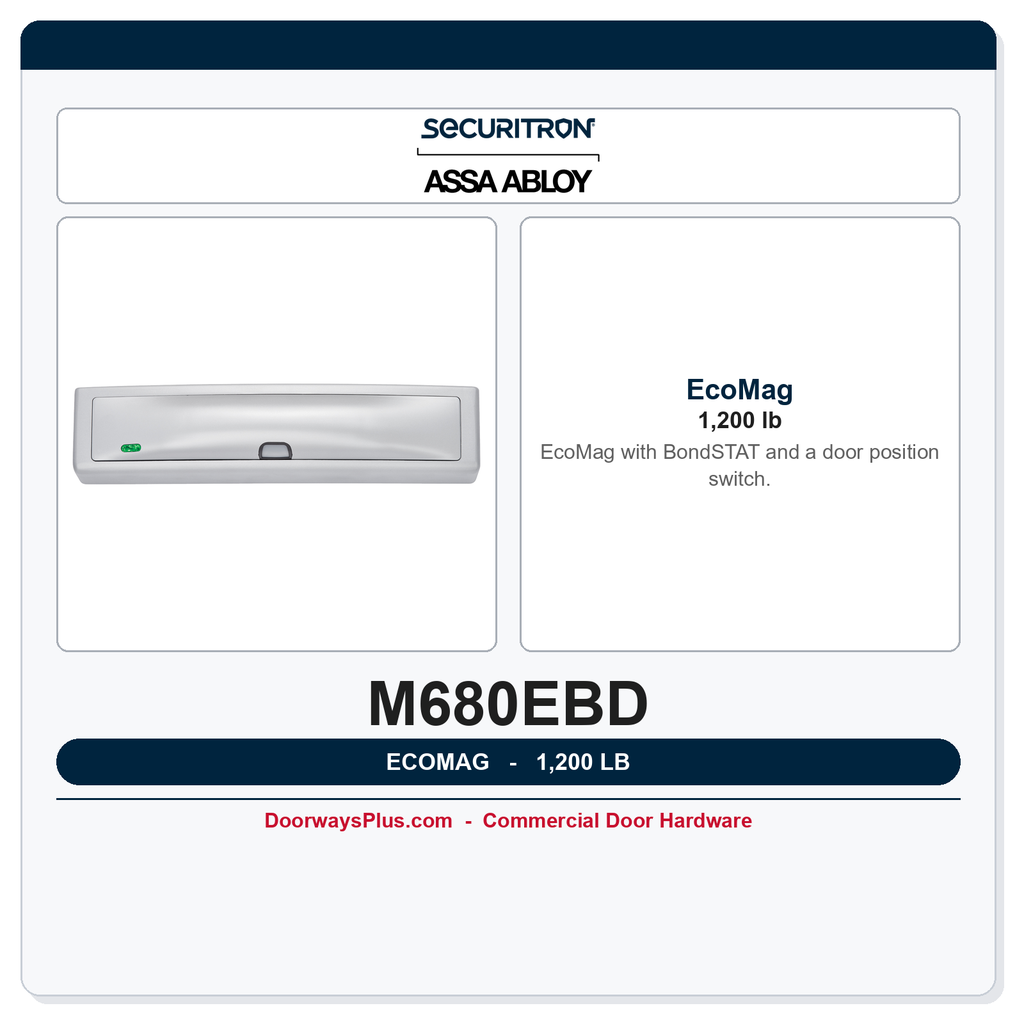

Securitron M680EBD EcoMag | 1,200 lb | Indoor
The Securitron M680EBD is a 1,200 lb bracket-mounted EcoMag for out-swing doors. Indoor only. Not for outdoor use. The body is 11-1/2 in long, 2-1/2 in high, and 2-9/16 in deep. Flat mounting space is 2-1/4 in. Operating range is 32 F to 110 F. Automatic 12 or 24 VDC, with no field voltage change. EcoMag with BondSTAT and a door position switch. Average 113 mA at 12 VDC or 52 mA at 24 VDC. UL 10C, 1-hour. LED shows secure, open, or incomplete bond. Adjustable relock timer, 0 to 30 seconds. Eight finishes: 605, 606, 612, 613E, 628, 629, 630, and BSP. A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release.
Institutional Grade Features & Benefits
- 1,200 lb EcoMag. Indoor only. Not for outdoor use.
- EcoMag with BondSTAT and a door position switch.
- Bracket mount for an out-swing door. Flat mounting space 2-1/4 in.
- UL 10C, 1-hour.
Applications
- Out-swing doors
- Indoor only
- Sized to sit with a door closer
Technical Details
| Feature | Details |
|---|---|
| Model Number | M680EBD |
| Holding force | 1,200 lb |
| Body | 11-1/2 in L x 2-1/2 in H x 2-9/16 in D |
| Flat mounting space | 2-1/4 in |
| Electrical | Average 113 mA at 12 VDC or 52 mA at 24 VDC. |
| Temperature | 32 F to 110 F |
| Use | Indoor only |
| Listings | UL 10C 1-hour, CAN/ULC-S104, UL 1034, UL 294, ANSI/BHMA A156.23 Grade 2, CSFM |
| Finishes | 605, 606, 612, 613E, 628, 629, 630, BSP |
| Code note | A maglock is not a complete egress solution. Pair it with latching hardware and fire-alarm release. A standalone push button is not sole release. |
| Finish with BHMA code | 628 - Clear Anodized Aluminum or 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 629 - US32 Polish Stainless |
| Brand | Securitron |
| Magnetic Lock Options | Bond Sensor, Door Status |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
