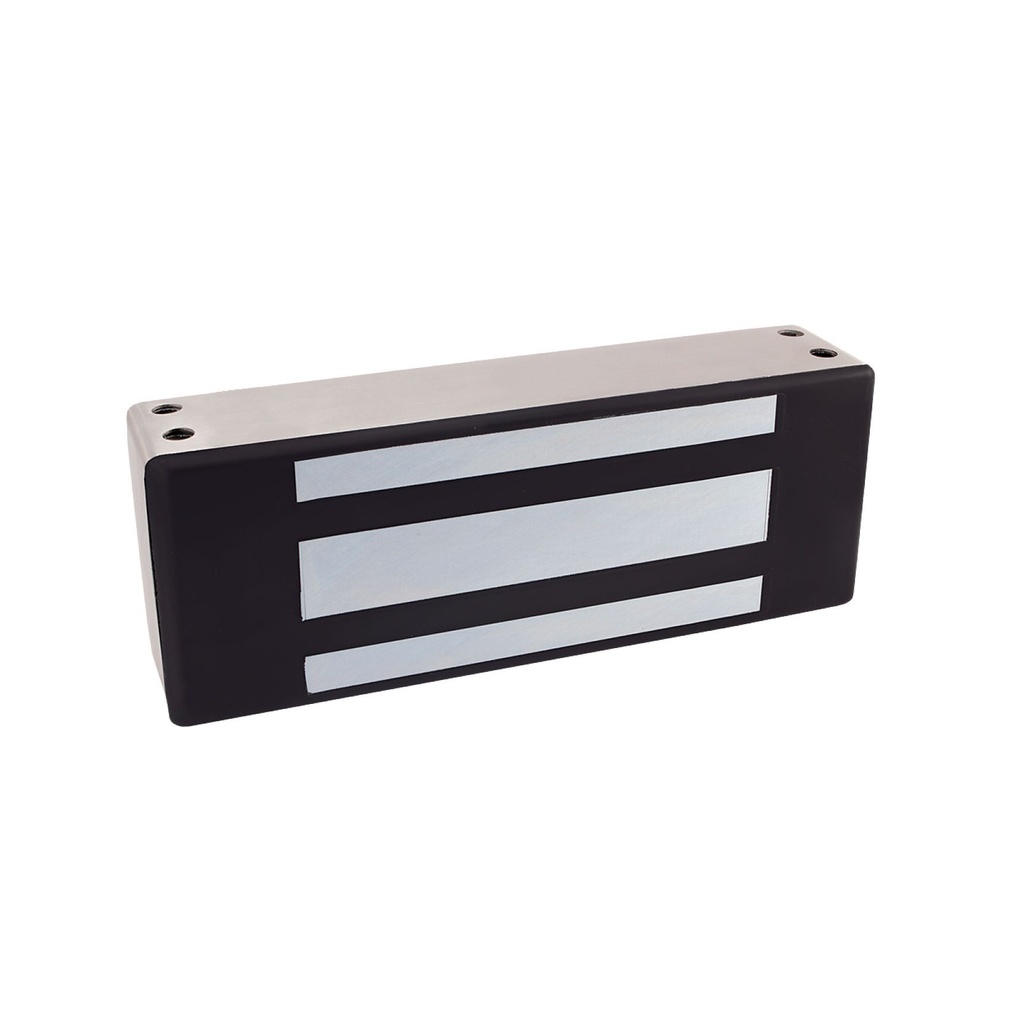

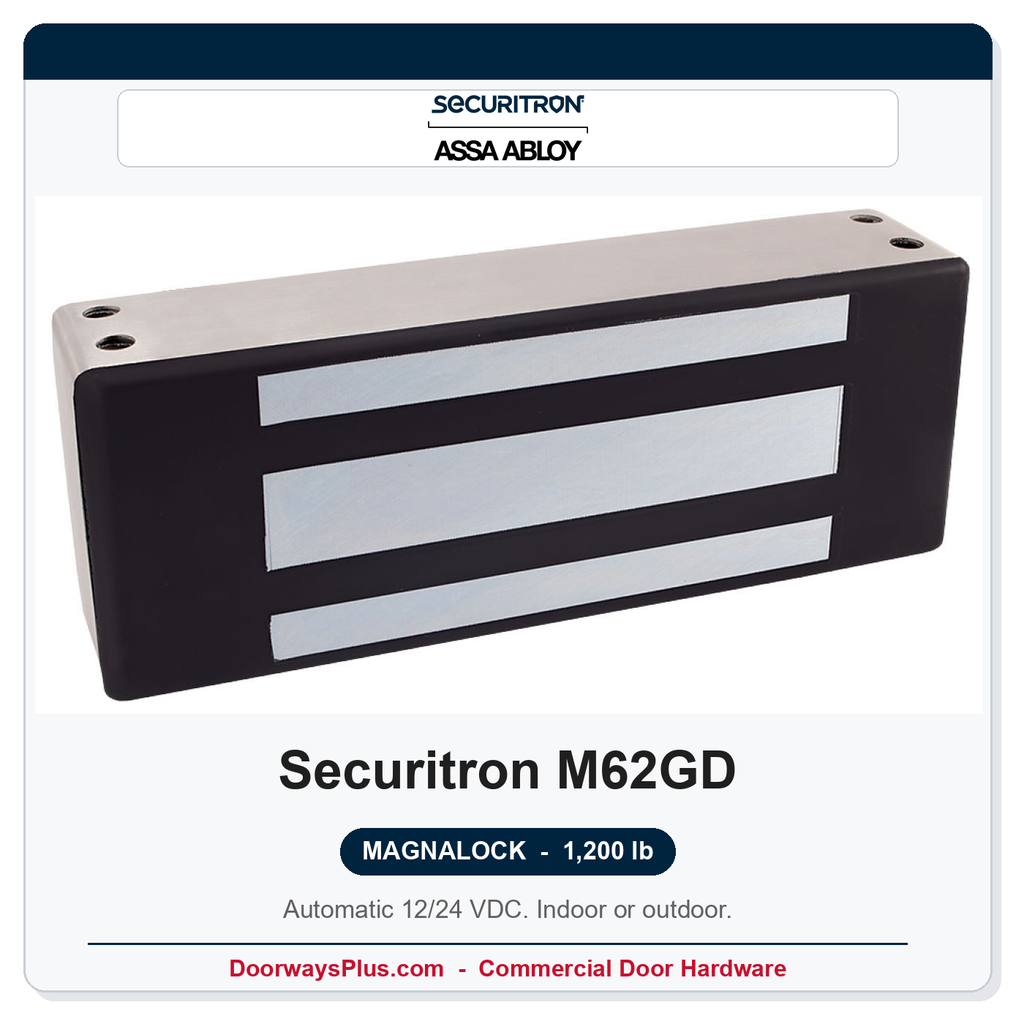

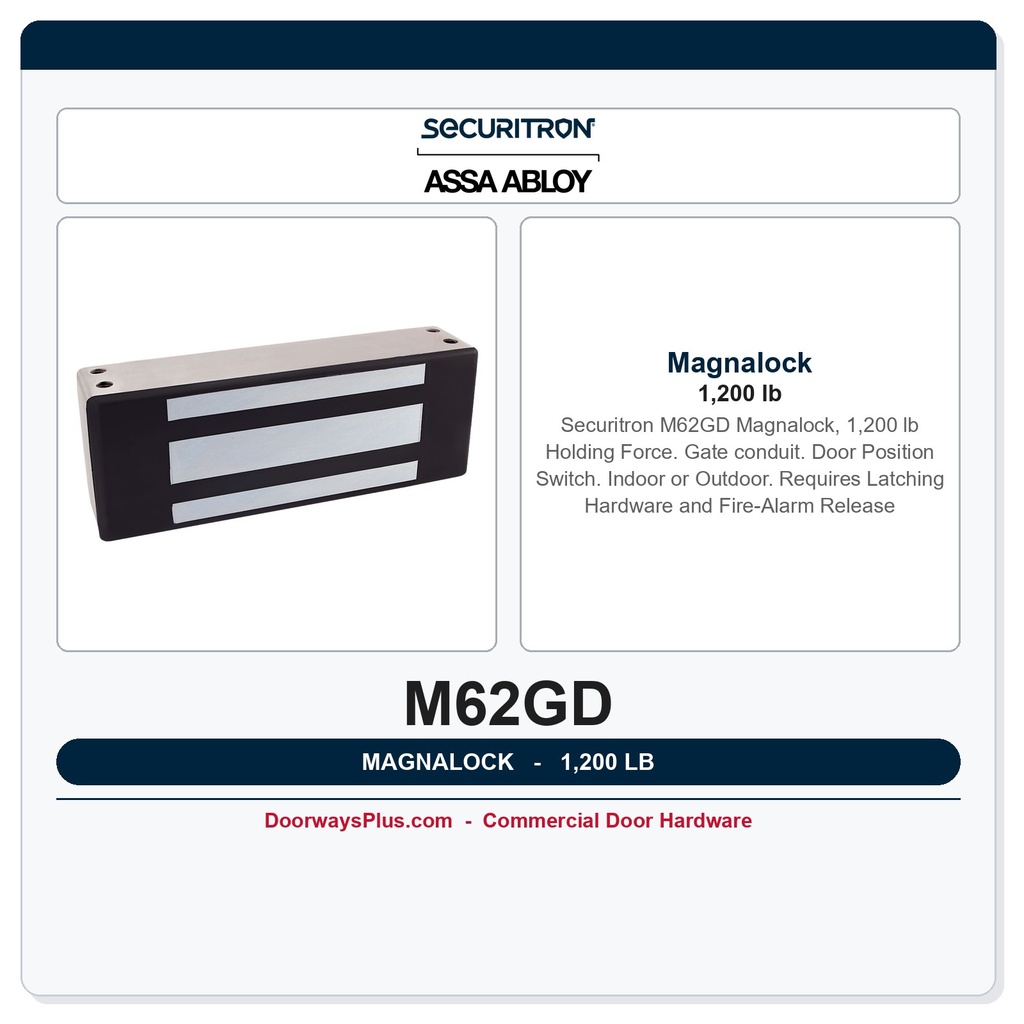

Securitron M62GD Magnalock – 1,200 lb Gate Conduit Electromagnetic Lock, Satin Stainless (630)
The Securitron M62GD is a heavy-duty 1,200 lb (544 kg) holding force electromagnetic lock configured specifically for gate conduit applications with an integrated door position switch. Designed for both indoor and outdoor installations, the M62GD features a fully sealed housing and an operating range of -40°F to 140°F, making it equally at home on a perimeter gate in extreme climates or a secure interior access point. This listing is finished in 630 Satin Stainless (US32D) — a corrosion-resistant, low-glare choice well suited to stainless-frame gates and architectural storefronts.
The M62GD operates on automatic 12/24 VDC (250 mA at 12 VDC / 150 mA at 24 VDC) with no field voltage adjustment required, simplifying installation and integration with access control panels. A built-in MOV protects downstream electronics, and the lock provides instant release with no residual magnetism — critical for fast, clean egress. A 10 ft jacketed cable is included. Mounting uses collapsing blind nuts for a secure, vibration-resistant connection.
Important egress note: A maglock is not a complete egress solution on its own. It must be paired with appropriate latching hardware and a fire-alarm release interface. A standalone push button does not constitute a sole means of egress release — consult local AHJ requirements and NFPA 101 Life Safety Code.
Key Features & Benefits
- 1,200 lb Holding Force: Institutional-grade security for high-traffic commercial gates and access points.
- Gate Conduit Configuration: Purpose-built conduit entry geometry for clean, code-compliant wiring on gate applications.
- Integrated Door Position Switch: Confirms lock/door status at the panel — reduces service calls and supports audit logging in access control systems.
- Automatic 12/24 VDC: Self-selects operating voltage; no field adjustment needed, lowering installation time and error risk.
- Fully Sealed & All-Weather Rated: -40°F to 140°F operating range; suitable for exterior gates, covered walkways, and harsh environments.
- Instant Release / No Residual Magnetism: Lock drops immediately on power loss or release signal — meets fail-safe egress requirements.
- Built-In MOV: Transient voltage suppression protects the lock and connected access control hardware.
- PoE Friendly: Compatible with Power-over-Ethernet access control architectures for simplified low-voltage runs.
- MagnaCare Lifetime Replacement: Securitron's industry-recognized warranty program backs this lock for the life of the installation.
- Made in Phoenix, AZ: Manufactured domestically at Securitron's Arizona facility.
Certifications & Standards
- UL 10C – 3-Hour Positive Pressure Fire Door
- ANSI/BHMA A156.23 Grade 2 (E08501-1000)
- ANSI/UL 294 – Access Control System Units
- CAN4-S104 / CAN/ULC-S533
- CSA C22.2 No. 205
- CSFM Listed
- CE Marked
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62GD |
| Manufacturer | Securitron |
| Configuration | Gate conduit with integrated door position switch |
| Holding Force | 1,200 lb (544 kg) |
| Voltage / Current | 12 VDC @ 250 mA / 24 VDC @ 150 mA; automatic dual-voltage |
| Body Dimensions | 8 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Operating Range | -40°F to 140°F |
| Environment | Indoor or outdoor; fully sealed |
| Cable | 10 ft jacketed cable included |
| Mounting | Collapsing blind nuts |
| Warranty | MagnaCare Lifetime Replacement |
| Fire Rating | UL 10C – 3-Hour Positive Pressure |
| ANSI/BHMA Grade | Grade 2 – A156.23 (E08501-1000) |
| Additional Listings | ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No.205, CSFM, CE |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
