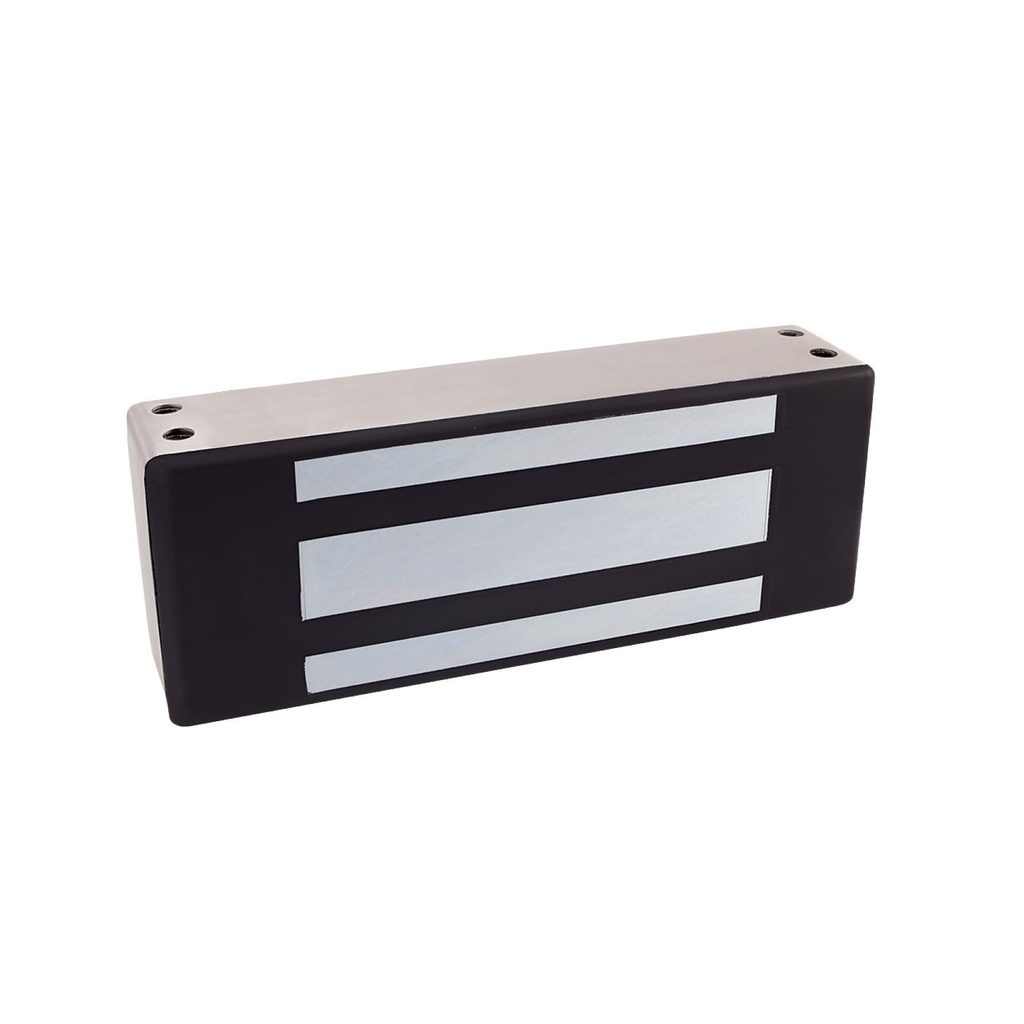

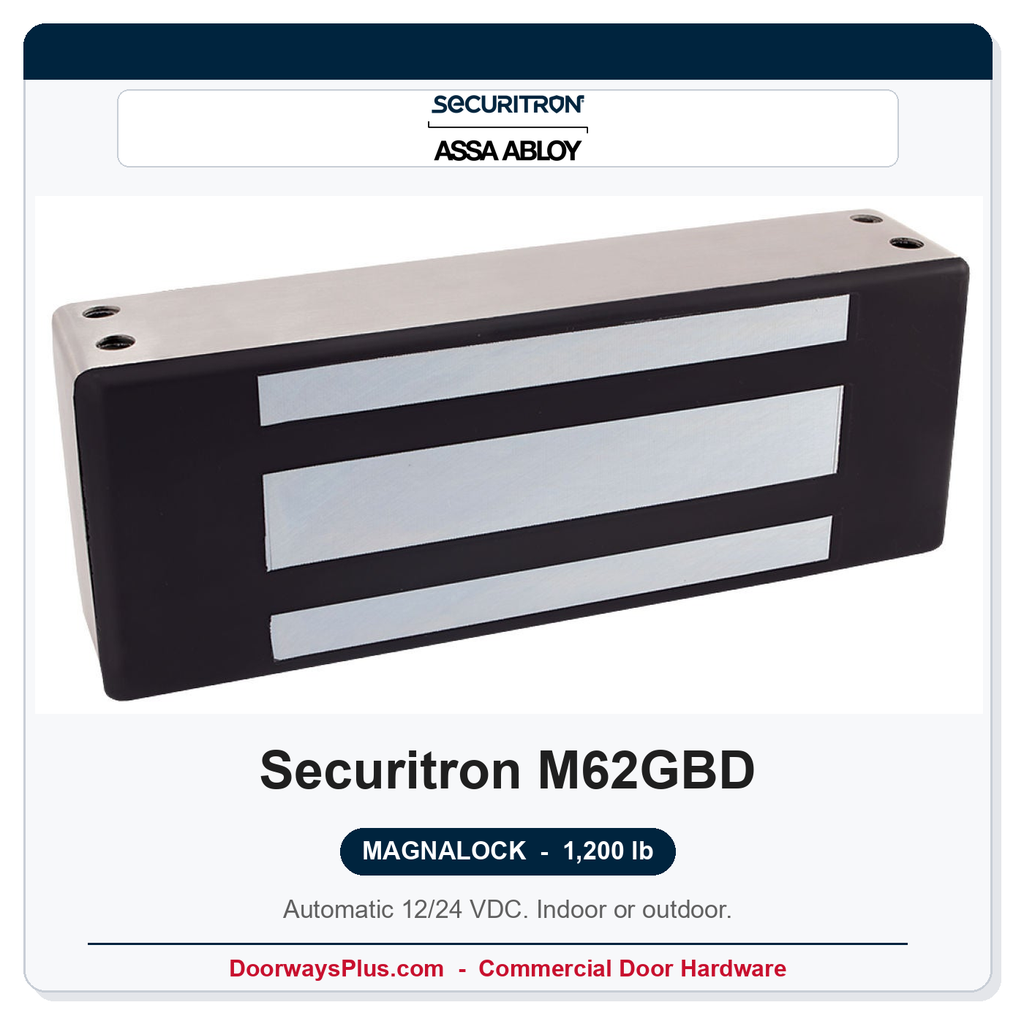

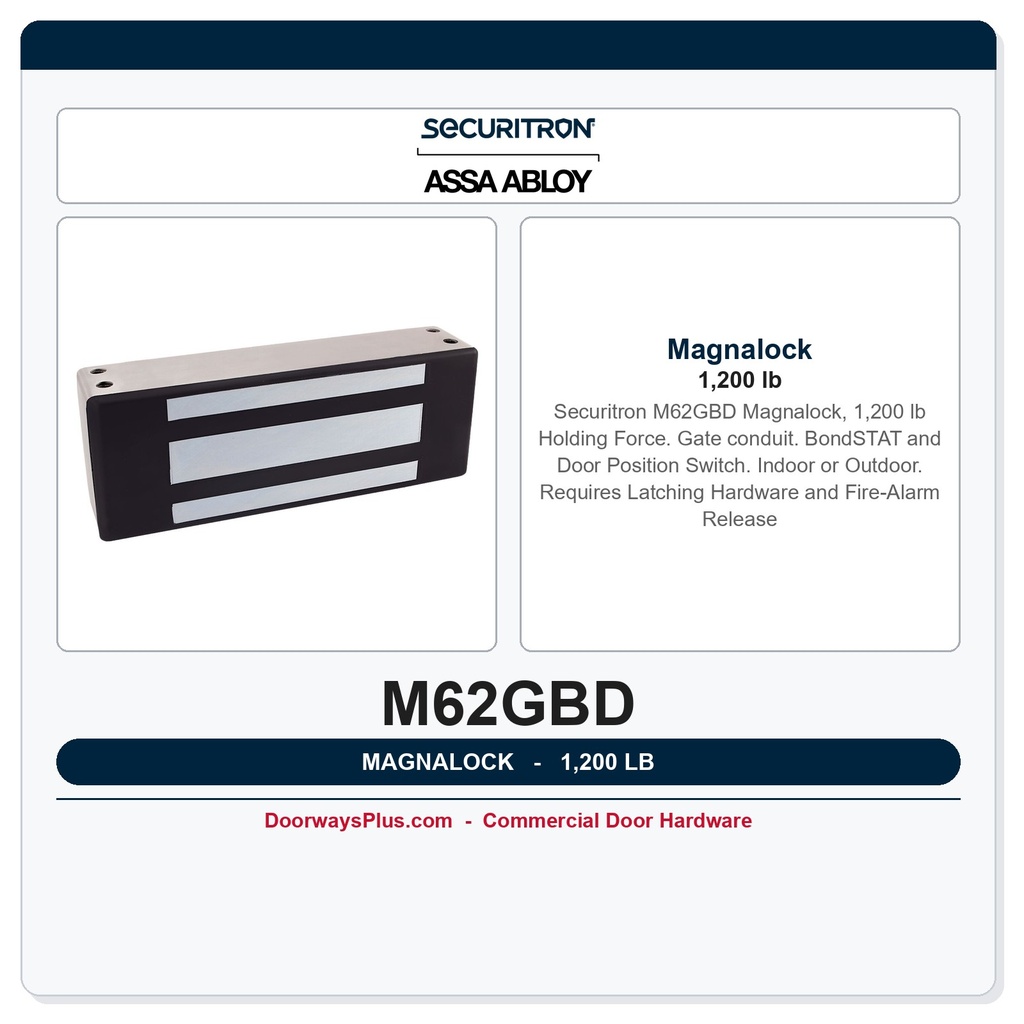

Securitron M62GBD Magnalock 1,200 lb Electromagnetic Lock — Gate Conduit, Satin Stainless (630)
The Securitron M62GBD Magnalock is a heavy-duty, 1,200 lb (544 kg) holding-force electromagnetic lock configured for gate conduit applications. This listing ships in 630 satin stainless (US32D) finish and includes the integrated BondSTAT bond sensor and a built-in door position switch — eliminating the need for a separate monitor strike or external door status device. Manufactured at Securitron's Phoenix factory, the M62GBD is engineered for demanding access-control installations where corrosion resistance, code compliance, and long service life are non-negotiable.
Key Features & Benefits
- 1,200 lb Holding Force: Provides institutional-grade security suitable for high-traffic gates and perimeter access points.
- Gate Conduit Configuration: Wiring enters through the conduit-ready body, keeping cable runs clean and protected — ideal for outdoor gate posts and aluminum frame installations.
- BondSTAT Bond Sensor: Monitors magnet-to-armature contact quality in real time; integrates directly with access control panels for verified lock status feedback.
- Integrated Door Position Switch: Confirms door/gate open or closed state without a separate accessory, simplifying wiring and reducing installed cost.
- Automatic 12/24 VDC Operation: Draws 250 mA at 12 VDC or 150 mA at 24 VDC; auto-selects voltage with no field adjustment required — PoE-friendly power budget.
- Fully Sealed, Outdoor-Rated Body: Rated for indoor or outdoor use across an operating range of -40°F to 140°F, making it suitable for harsh climates.
- Instant Release, No Residual Magnetism: Drops immediately on power loss or release signal; built-in MOV protects control circuits from inductive voltage spikes.
- Collapsing Blind Nuts: Simplify surface mounting to hollow or thin-wall gate frames without through-bolts.
- 10 ft Jacketed Cable: Pre-attached for straightforward field termination.
- MagnaCare Lifetime Replacement: Securitron's industry-recognized warranty program covers the electromagnet for the life of the installation.
- Multi-Standard Listed: UL 10C (3-hour fire), ANSI/BHMA A156.23 Grade 2, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No.205, CSFM, and CE — supports specification on fire-rated openings and Canadian projects.
Applications
- Outdoor perimeter gates and pedestrian access control
- Conduit-wired gate posts (aluminum, steel, or hollow-metal frames)
- Access-controlled entries requiring verified bond status feedback
- Fire-alarm integrated egress systems (must be paired with appropriate latching hardware and fire-alarm release)
- Facilities requiring multi-jurisdiction code compliance (US, Canada, California)
Important Egress Note: A maglock is not a complete egress solution on its own. This lock must be paired with approved latching hardware and a fire-alarm release interface. A standalone push button does not satisfy sole-release code requirements. Consult your local AHJ and applicable codes before specifying.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62GBD |
| Configuration | Gate conduit with BondSTAT bond sensor and door position switch |
| Holding Force | 1,200 lb (544 kg) |
| Voltage / Current | 12 VDC @ 250 mA / 24 VDC @ 150 mA; automatic dual-voltage, no field adjustment |
| Body Dimensions | 8 in long × 3 in high × 2-3/4 in deep |
| Finish | 630 Satin Stainless (US32D) |
| Environment | Indoor or outdoor; fully sealed; -40°F to 140°F operating range |
| Cable | 10 ft jacketed cable, pre-attached |
| Listings / Standards | UL 10C 3-hr fire; ANSI/BHMA A156.23 Grade 2 (E08501-1000); ANSI/UL 294; CAN4-S104; CAN/ULC-S533; CSA C22.2 No.205; CSFM; CE |
| Warranty | MagnaCare lifetime replacement |
| Origin | Made in Phoenix, AZ, USA |
| Strike Included | No offset, split, or shock-absorbing strike included |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
