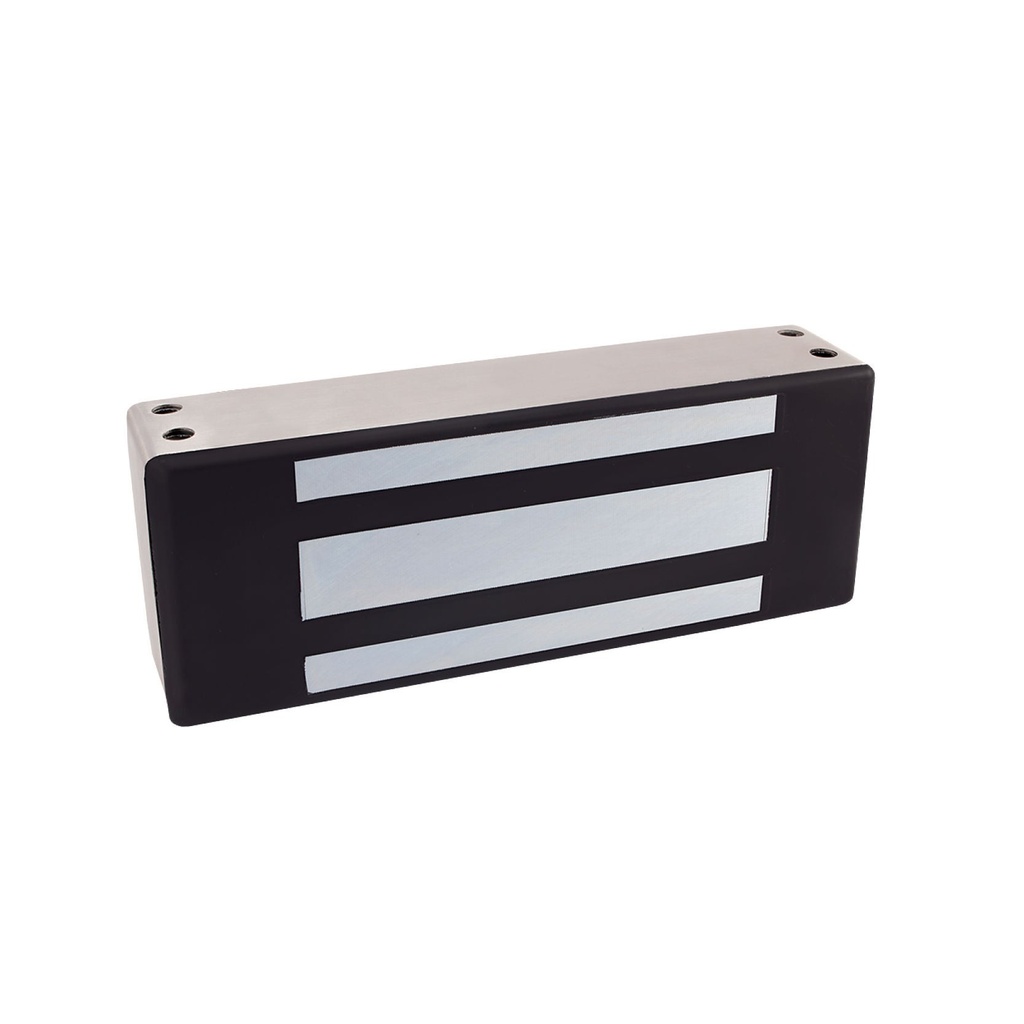

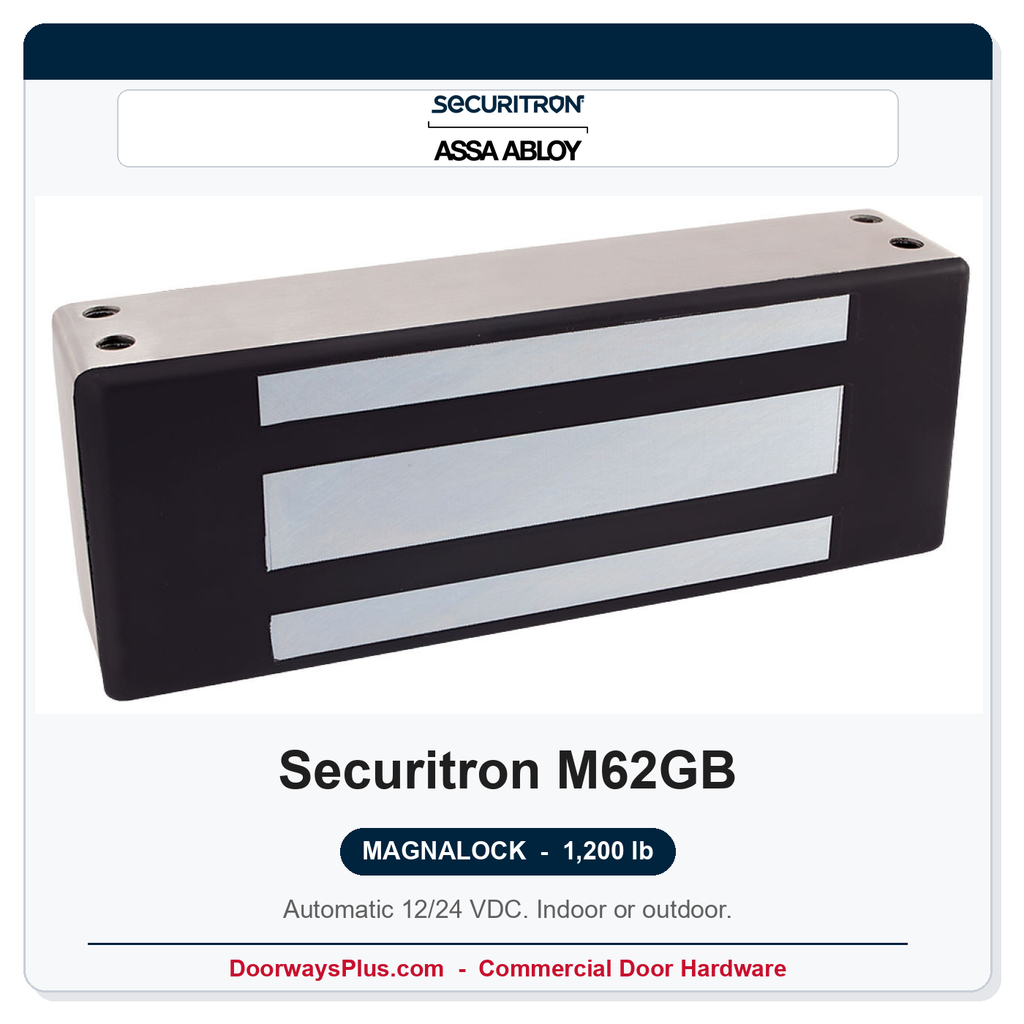

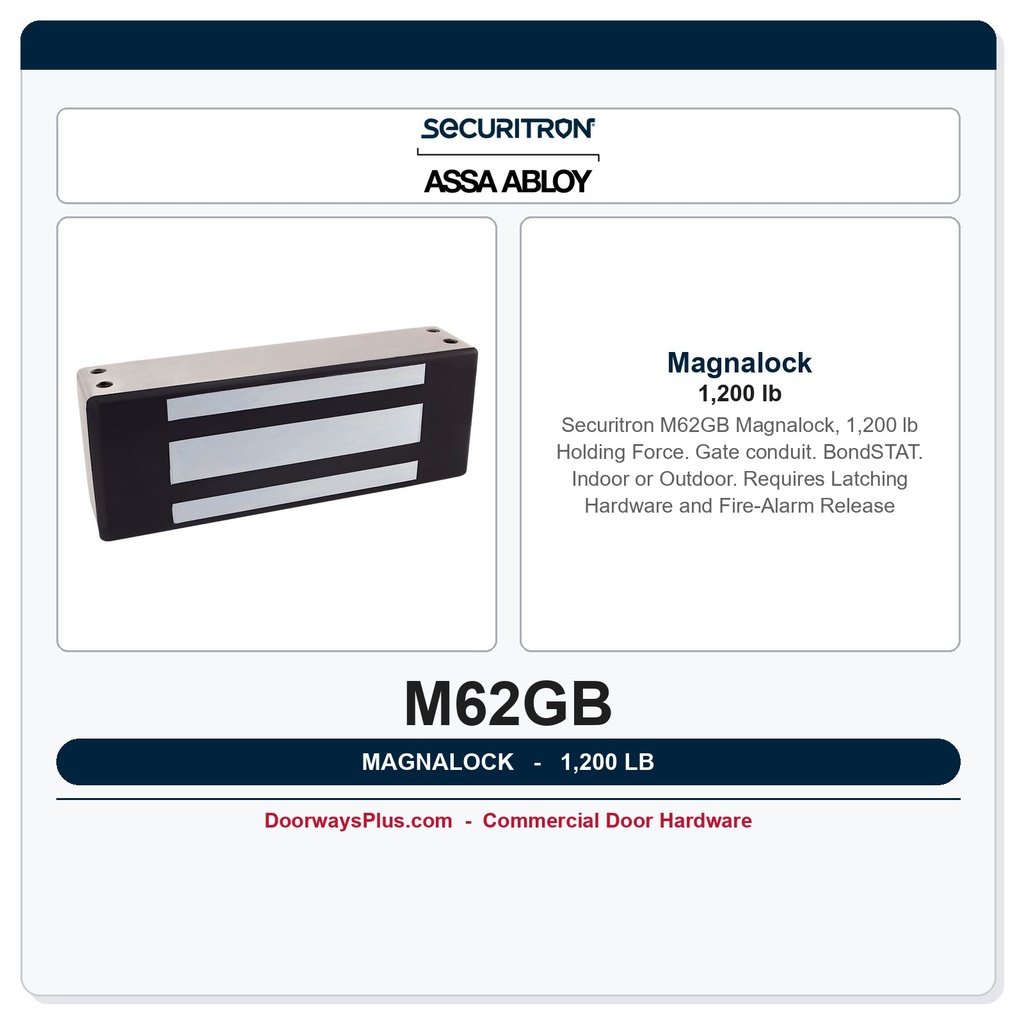

Securitron M62GB Magnalock – 1,200 lb Gate Conduit Electromagnetic Lock, Satin Stainless (630)
The Securitron M62GB Magnalock is a heavy-duty, fully sealed electromagnetic lock engineered specifically for gate applications, featuring a built-in BondSTAT bond sensor and gate conduit configuration. Delivering a rated holding force of 1,200 lb (544 kg), it is suited for high-traffic or high-security access-controlled entry points where reliable, residual-magnetism-free locking is essential. This listing is finished in 630 satin stainless (US32D) and is approved for both indoor and outdoor installations across an operating range of -40°F to 140°F — making it an ideal choice for exterior perimeter gates, parking structures, and secure facility entrances. Backed by MagnaCare lifetime replacement and manufactured at Securitron's Phoenix, Arizona facility.
Key Features & Benefits
- 1,200 lb Holding Force: Provides robust, high-security electromagnetic holding power (544 kg) suitable for commercial gate applications and perimeter access control.
- BondSTAT Bond Sensor: Integrated door/gate position monitoring confirms secure lock engagement for access control system feedback and alarm integration.
- Automatic 12/24 VDC Operation: Draws 250 mA at 12 VDC or 150 mA at 24 VDC; auto-selects voltage with no field adjustment required — simplifying installation and reducing commissioning time.
- PoE-Friendly Power Profile: Low current draw at 24 VDC is compatible with Power over Ethernet–based access control power supplies.
- Fully Sealed, All-Weather Body: Rated for operation from -40°F to 140°F; fully sealed construction makes it suitable for exposed outdoor gate mounting.
- Instant Release, No Residual Magnetism: Provides immediate, clean release upon power interruption — supporting reliable egress and access control response times.
- Built-In MOV: Metal oxide varistor protects connected control circuits from voltage spikes generated at lock release.
- Collapsing Blind Nuts: Simplify mounting to hollow gate sections and aluminum extrusions without requiring through-bolts.
- 10 ft Jacketed Cable: Pre-attached lead wire accommodates conduit routing through gate frames and posts.
- UL 10C 3-Hour Fire Rated: Listed for use on fire-rated assemblies requiring positive-pressure fire door compliance.
- MagnaCare Lifetime Replacement: Industry-leading warranty program provides long-term ownership confidence.
Certifications & Standards
The M62GB is listed to ANSI/BHMA A156.23 Grade 2 (E08501-1000), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, and CE. Suitable for projects requiring UL 10C 3-hour fire-rated door assembly compliance.
Important Application Notes
A maglock is not a standalone egress solution. This device must be paired with appropriate latching hardware and a code-compliant fire-alarm release. A push button alone does not satisfy egress requirements under applicable codes. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately if required. Do not use lithium or NiMH batteries with AQD or AQS power supplies in this system.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62GB |
| Manufacturer | Securitron |
| Configuration | Gate conduit with BondSTAT bond sensor |
| Holding Force | 1,200 lb (544 kg) |
| Voltage | Automatic 12/24 VDC (no field adjustment) |
| Current Draw | 250 mA @ 12 VDC / 150 mA @ 24 VDC |
| Body Dimensions | 8 in L x 3 in H x 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Installation | Indoor or outdoor; fully sealed |
| Operating Temperature | -40°F to 140°F |
| Lead Wire | 10 ft jacketed cable |
| Mounting | Collapsing blind nuts |
| Fire Rating | UL 10C 3-hour |
| Standards | ANSI/BHMA A156.23 Grade 2 (E08501-1000), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, CE |
| Warranty | MagnaCare lifetime replacement |
| Origin | Made in USA (Phoenix, AZ) |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
