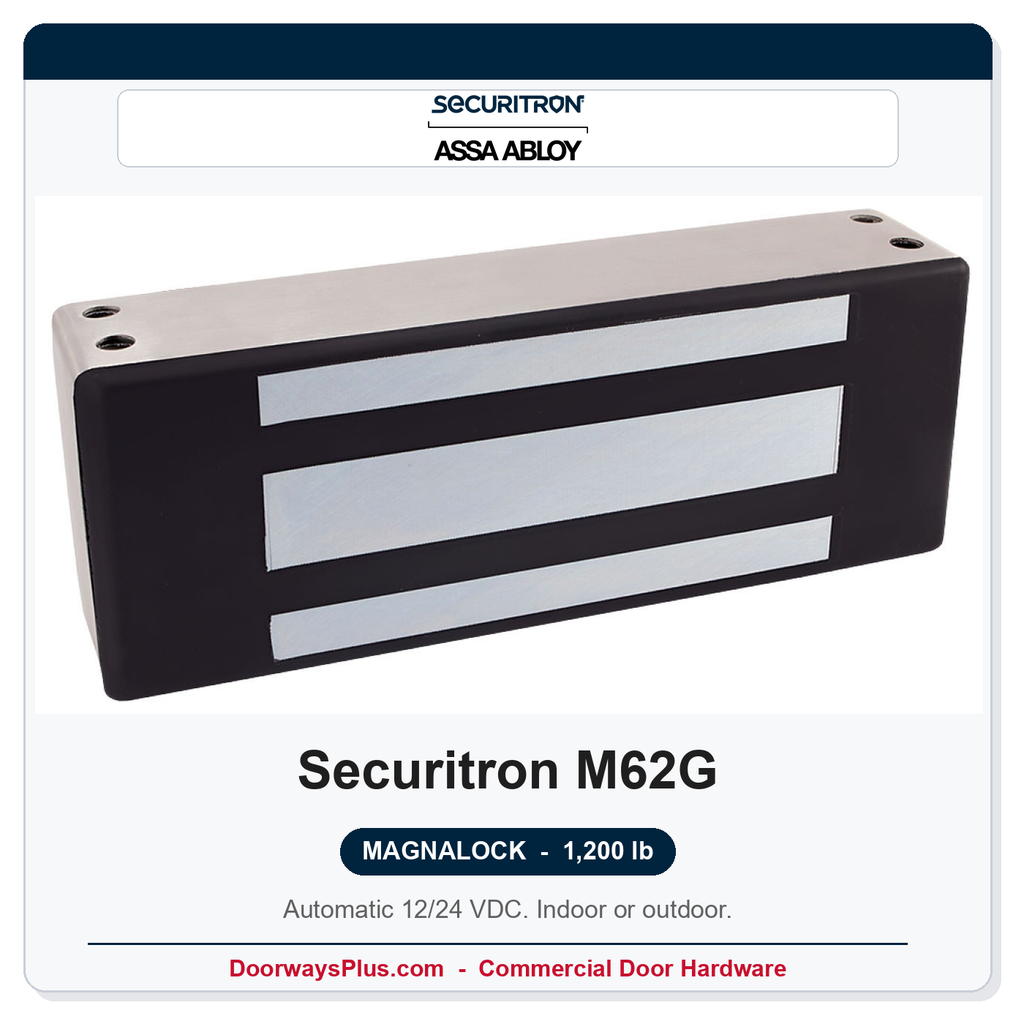

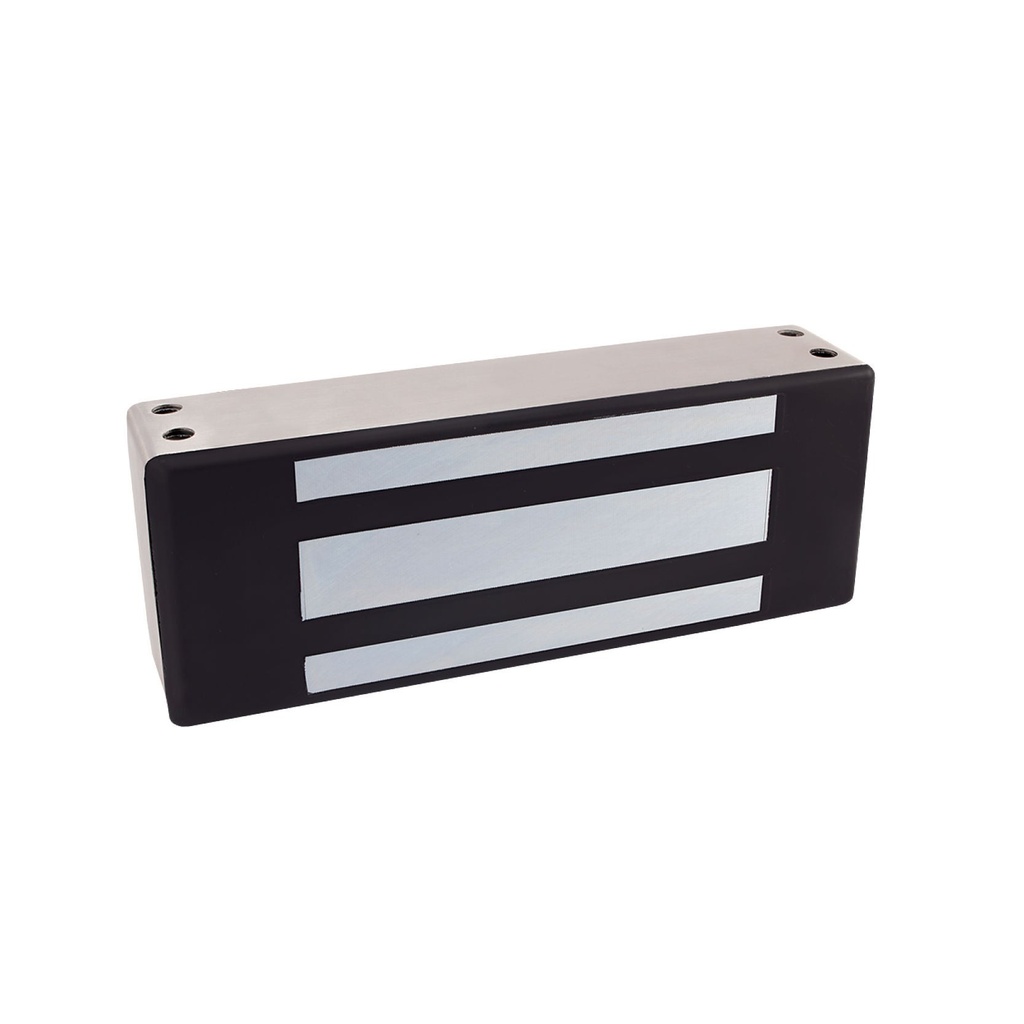

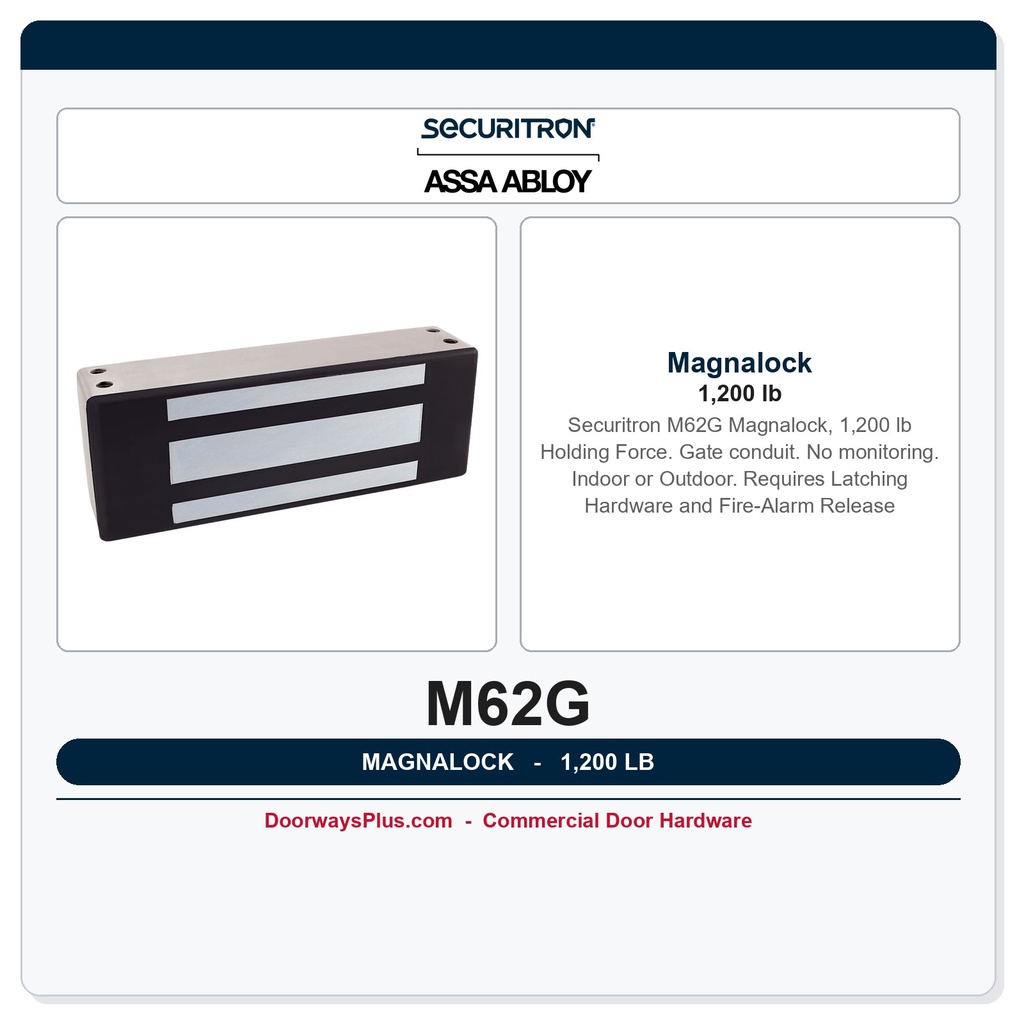

Securitron M62G Magnalock – 1,200 lb Gate Conduit Electromagnetic Lock, Satin Stainless (630)
The Securitron M62G Magnalock is a heavy-duty 1,200 lb (544 kg) holding force electromagnetic lock configured for gate conduit applications. This listing is the gate conduit version — it does not include a bond sensor or door position switch. Finished in 630 satin stainless (US32D), the M62G is fully sealed for indoor or outdoor use across an operating range of -40°F to 140°F, making it a proven choice for perimeter access control, parking gates, and exterior secured openings. Manufactured in Securitron's Phoenix factory, every M62G carries the MagnaCare lifetime replacement warranty.
Key Features & Benefits
- 1,200 lb Holding Force: Delivers institutional-grade security for high-traffic commercial gates and exterior access points requiring dependable electromagnetic locking.
- Automatic 12/24 VDC Operation: Accepts 250 mA at 12 VDC or 150 mA at 24 VDC with automatic voltage sensing — no field voltage adjustment required, simplifying installation and integration with existing power supplies.
- PoE Friendly: Compatible with Power over Ethernet infrastructure for flexible, low-voltage access control system design.
- Fully Sealed Weatherproof Body: Operates reliably from -40°F to 140°F; suitable for harsh outdoor environments without additional enclosures.
- Instant Release, No Residual Magnetism: Drops immediately on power loss or access command — critical for life-safety and fire-alarm release integration.
- Built-in MOV Protection: Transient voltage suppression protects the lock and connected electronics from electrical spikes.
- 10 ft Jacketed Cable: Pre-attached cable simplifies field wiring in conduit-fed gate applications.
- Collapsing Blind Nuts: Facilitate secure mounting to a variety of gate frames and surfaces without back-access drilling.
- MagnaCare Lifetime Replacement: Industry-leading warranty provides long-term peace of mind for facility managers and building owners.
- Multi-Listing Certifications: UL 10C (3-hour fire rated), ANSI/BHMA A156.23 Grade 2 (E08501-1000), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No.205, CSFM, and CE — covering U.S., Canadian, and European compliance requirements.
Important Application & Safety Notes
A maglock is not a standalone egress solution. The M62G must be paired with appropriate latching hardware and a fire-alarm release interface to meet code requirements. A standalone push button does not constitute the sole means of egress release. Do not use lithium or NiMH batteries with AQD or AQS power supplies. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately as required by your installation.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62G |
| Series | Magnalock |
| Configuration | Gate conduit, no bond sensor, no door position switch |
| Holding Force | 1,200 lb (544 kg) |
| Voltage / Current | 250 mA @ 12 VDC / 150 mA @ 24 VDC; automatic 12/24 VDC |
| Body Dimensions | 8 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Environment | Indoor / Outdoor; fully sealed |
| Operating Temperature | -40°F to 140°F |
| Cable | 10 ft jacketed cable (pre-attached) |
| Fire Rating | UL 10C, 3-hour |
| Standards & Listings | ANSI/BHMA A156.23 Grade 2 (E08501-1000), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No.205, CSFM, CE |
| Warranty | MagnaCare lifetime replacement |
| Origin | Made in Phoenix, AZ (USA) |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
