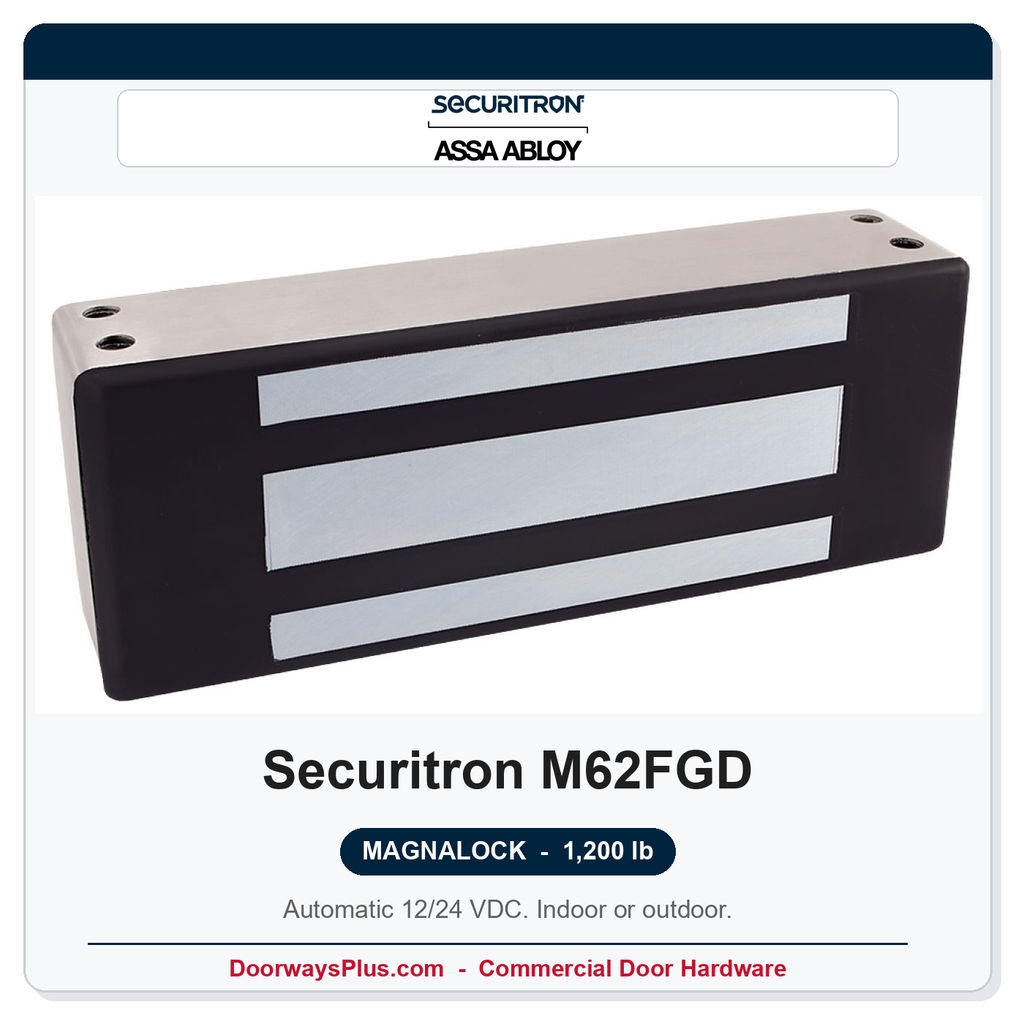

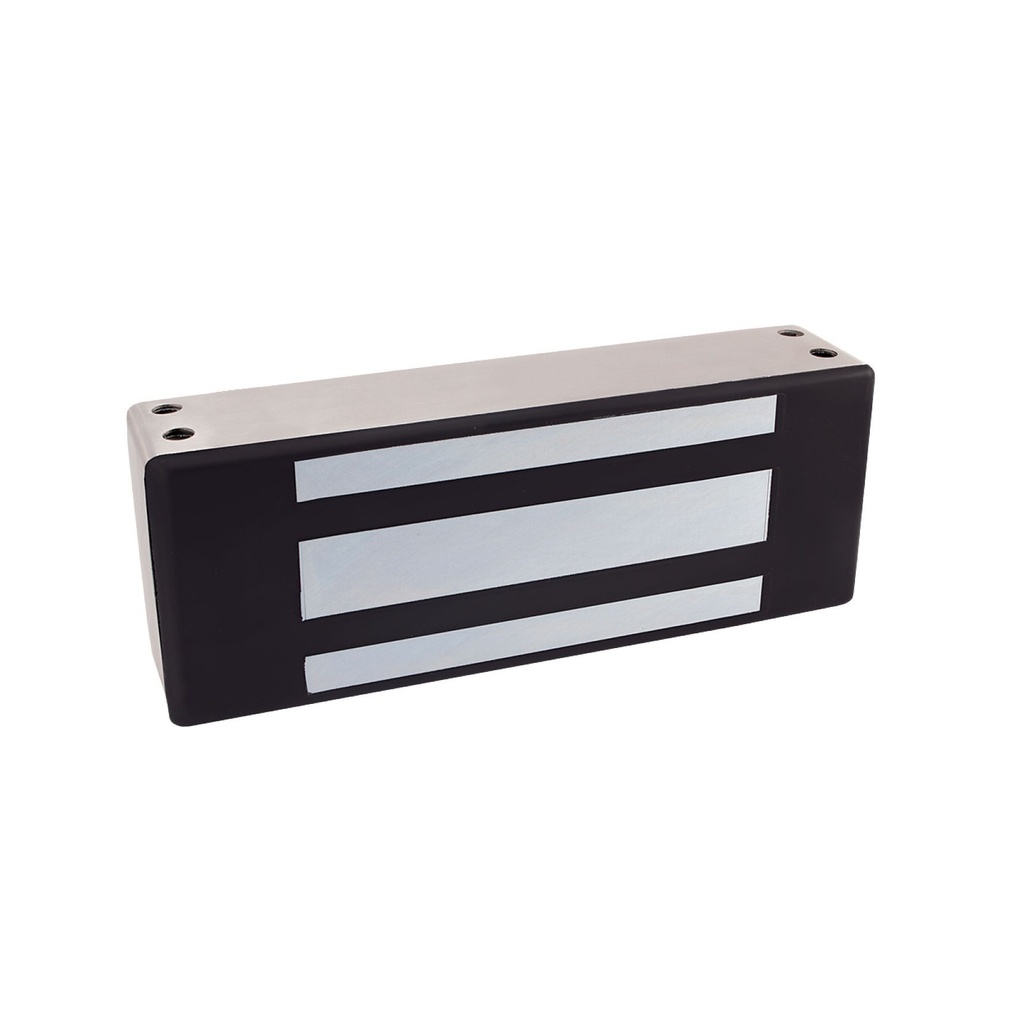

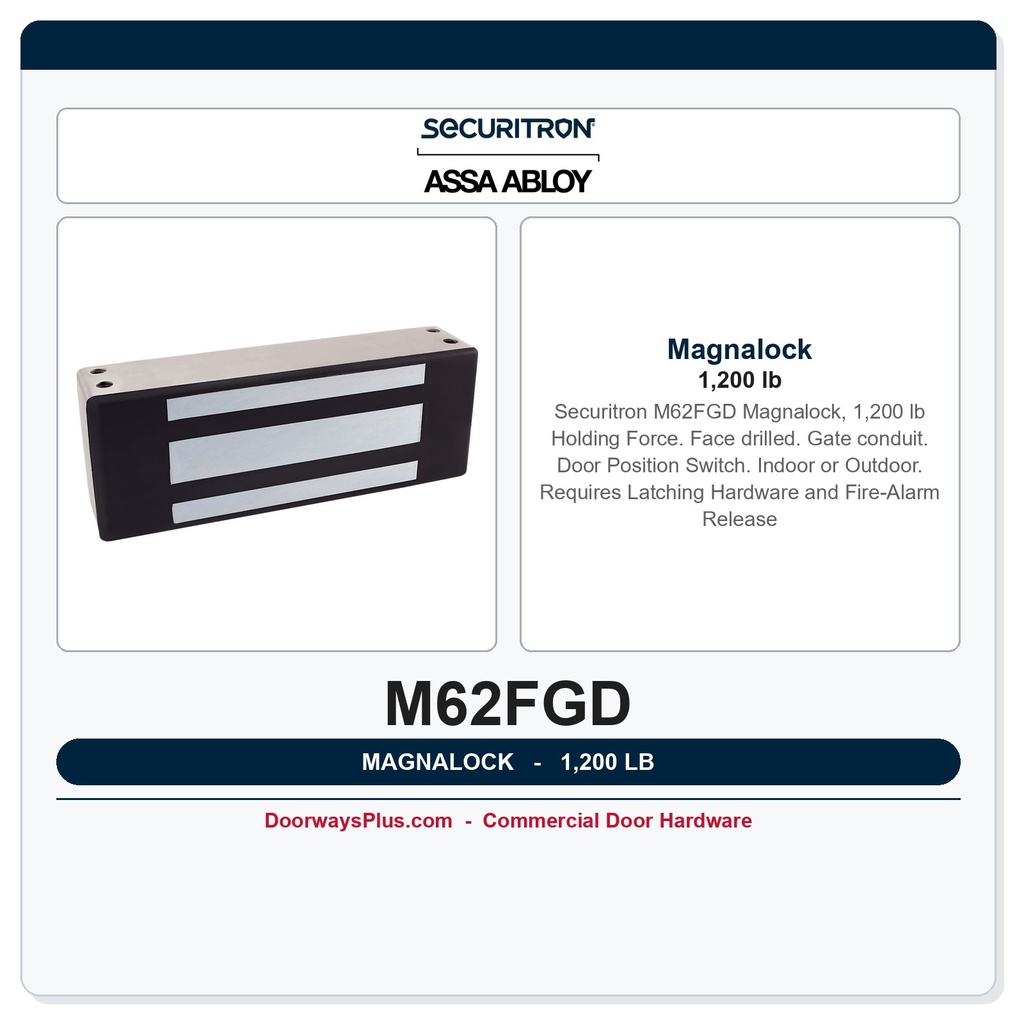

Securitron M62FGD Magnalock – 1,200 lb Electromagnetic Lock, Face Drilled & Gate Conduit, Satin Stainless
The Securitron M62FGD Magnalock is a heavy-duty, 1,200 lb (544 kg) holding-force electromagnetic lock engineered for high-security gate and door applications. This specific configuration is face drilled with gate conduit and includes an integrated door position switch — eliminating the need for a separate DPS sensor. Finished in 630 Satin Stainless (US32D), this maglock is fully sealed for both indoor and outdoor use, with a wide operating range of -40°F to 140°F. It is manufactured at Securitron's Phoenix, Arizona facility and backed by the MagnaCare lifetime replacement warranty.
Key Features & Benefits
- 1,200 lb Holding Force: Delivers institutional-grade security suitable for perimeter gates, high-traffic commercial doors, and access-controlled entry points.
- Face Drilled & Gate Conduit: Pre-drilled for face-mount installation with gate conduit routing, simplifying field wiring on swing gates and similar applications.
- Integrated Door Position Switch: Built-in DPS monitors door/gate status in real time — confirms secure closure without a separate accessory.
- Automatic 12/24 VDC Operation: Accepts 12 VDC (250 mA) or 24 VDC (150 mA) with automatic voltage sensing — no field voltage adjustment required. PoE-friendly power draw supports modern access control systems.
- Instant Release, No Residual Magnetism: Drops immediately on power loss; built-in MOV protects circuits from voltage spikes at de-energization.
- Fully Sealed Construction: NEMA-rated sealing and collapsing blind nuts make this unit resistant to weather, dust, and corrosion — ideal for exterior gate duty.
- 10 ft Jacketed Cable: Pre-attached, jacketed lead wire simplifies installation and protects conductors in conduit-fed gate installations.
- MagnaCare Lifetime Replacement: Industry-leading warranty coverage provides long-term value and reduced lifecycle cost.
- UL 10C 3-Hour Fire Rated: Listed for use on fire-rated door assemblies requiring electromagnetic hold-open/release devices.
Compliance & Listings
The M62FGD carries a comprehensive set of certifications for commercial, institutional, and international projects: UL 10C (3-hour fire), ANSI/BHMA A156.23 Grade 2 (E08501-1000), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, and CE. These listings satisfy most North American and international AHJ requirements for electromagnetic locking devices.
Important Installation Note: A maglock is not a standalone egress solution. It must be paired with appropriate latching hardware and fire-alarm release per applicable codes. A standalone push button alone does not constitute a compliant means of egress release. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately if required. Do not use lithium or NiMH batteries with AQD or AQS power supplies.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62FGD |
| Part Type | Electromagnetic Lock (Maglock) |
| Configuration | Face Drilled, Gate Conduit, Integrated Door Position Switch |
| Holding Force | 1,200 lb (544 kg) |
| Voltage / Current | 12 VDC / 250 mA or 24 VDC / 150 mA (automatic, no field adjustment) |
| Body Dimensions | 8 in L x 3 in H x 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Lead Wire | 10 ft jacketed cable |
| Operating Temperature | -40°F to 140°F |
| Environment | Indoor or Outdoor (fully sealed) |
| Fire Rating | UL 10C, 3-Hour |
| ANSI/BHMA Grade | A156.23 Grade 2 (E08501-1000) |
| Additional Listings | CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No. 205, CSFM, CE |
| Warranty | MagnaCare Lifetime Replacement |
| Origin | Made in Phoenix, AZ, USA |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
