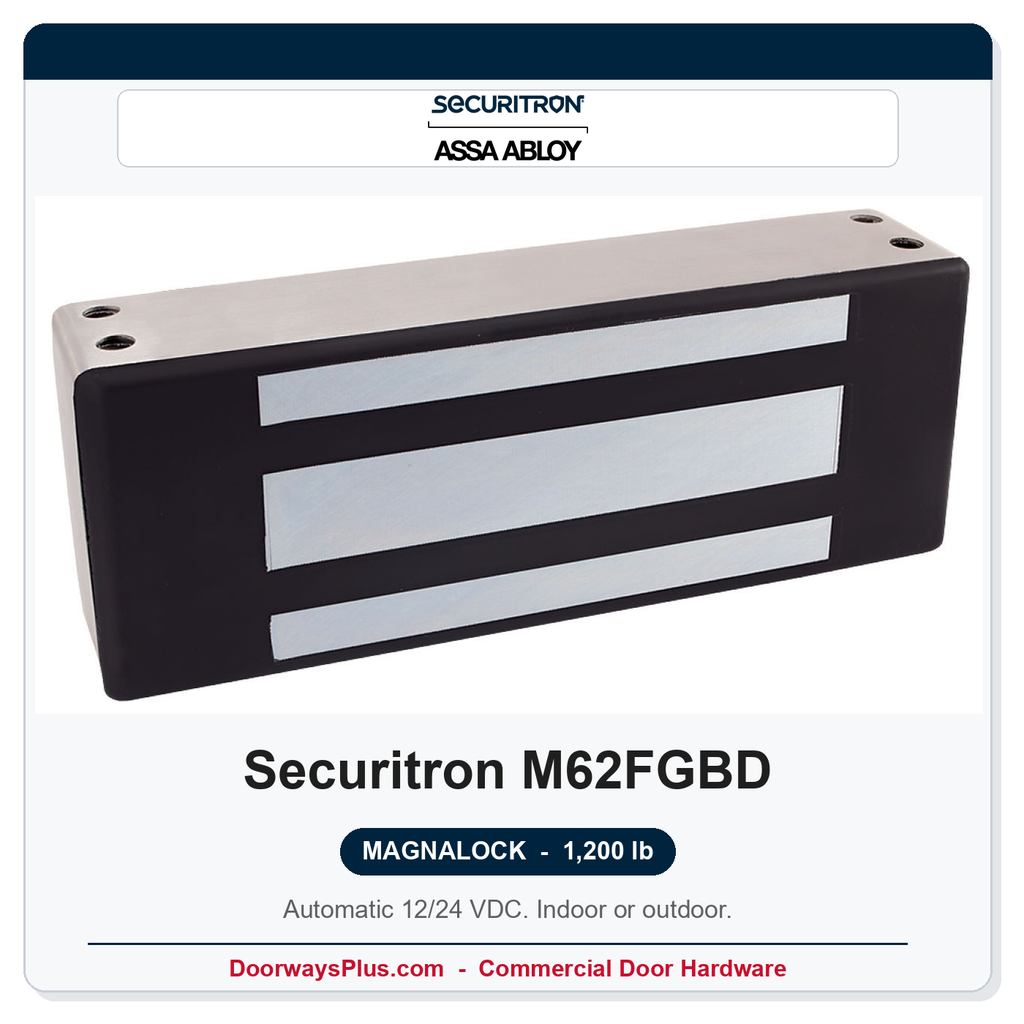

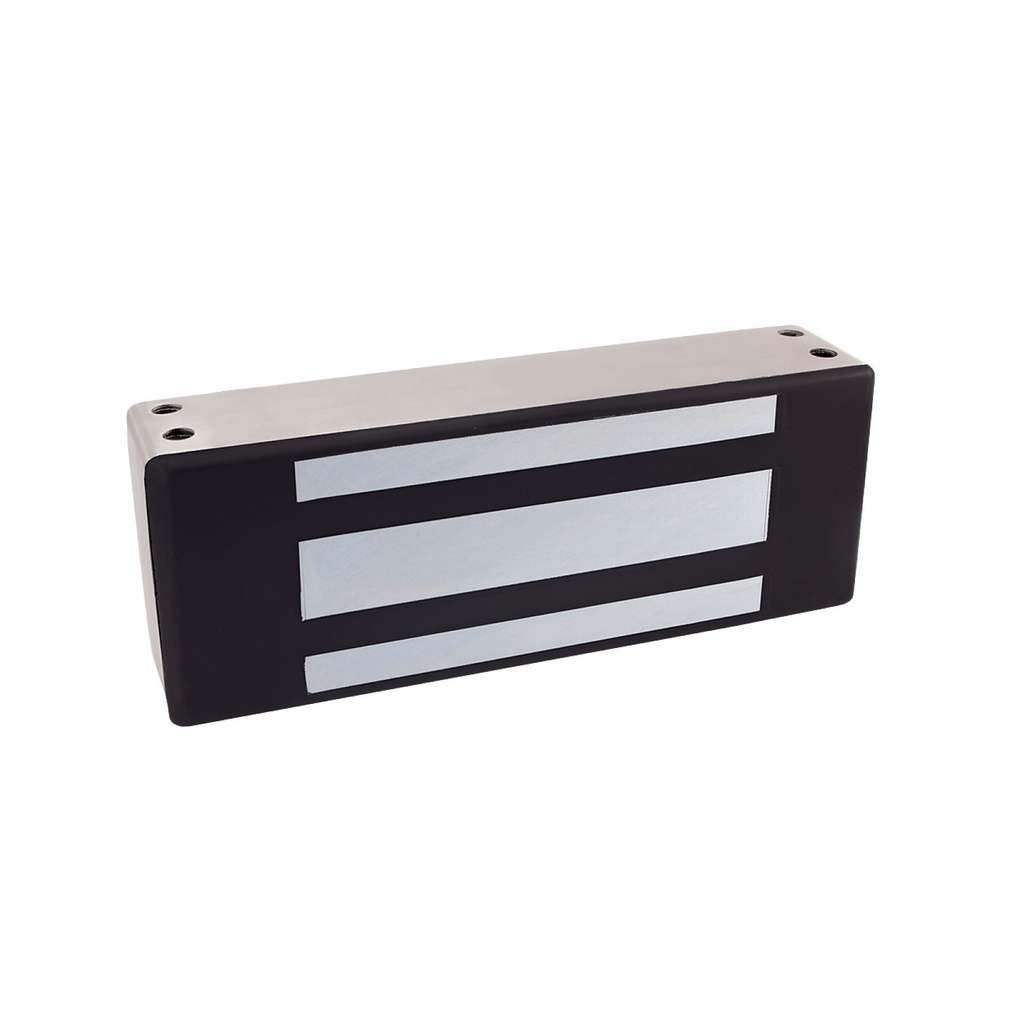

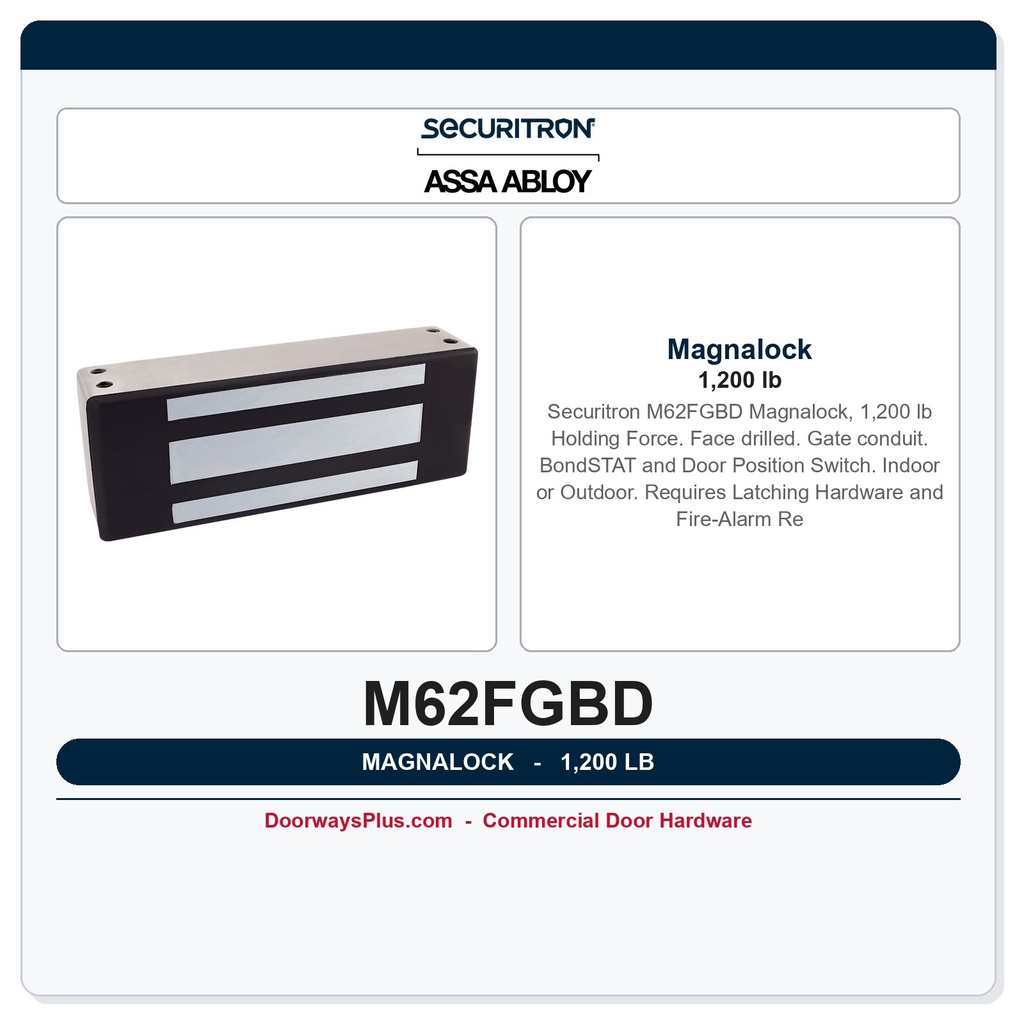

Securitron M62FGBD Magnalock — 1,200 lb Electromagnetic Lock, Face Drilled, Gate Conduit, Satin Stainless (630)
The Securitron M62FGBD Magnalock is a heavy-duty, 1,200 lb (544 kg) holding-force electromagnetic lock configured for face-drilled mounting with gate conduit — purpose-built for pedestrian gates, perimeter access points, and demanding access-control applications. This listing ships in 630 Satin Stainless (US32D) finish, suited for both indoor and outdoor environments. It integrates BondSTAT bond sensing and a built-in door position switch (DPS), delivering two critical status signals in a single compact body — confirming both secure electromagnetic bonding and actual door/gate closure in real time.
Key Features & Benefits
- 1,200 lb Holding Force: Provides institutional-grade security for high-traffic commercial gates and doors where robust electromagnetic retention is required.
- BondSTAT Bond Sensor: Monitors actual magnetic bond integrity — not just power status — giving access-control systems a verified locked/unlocked signal.
- Integrated Door Position Switch: Combines door-status monitoring with bond sensing in one unit, reducing wiring complexity and additional hardware.
- Face Drilled & Gate Conduit: Pre-drilled face mounting with gate conduit entry adapts cleanly to metal gate frames and aluminum-framed door applications.
- Automatic 12/24 VDC Operation: Accepts either 12 VDC (250 mA) or 24 VDC (150 mA) with automatic voltage detection — no field voltage adjustment required, simplifying installation and reducing commissioning errors.
- PoE Friendly: Current draw is compatible with Power-over-Ethernet access-control systems, enabling cleaner low-voltage installations.
- Instant Release, No Residual Magnetism: Drops immediately upon power interruption — critical for reliable fail-safe egress in fire or emergency conditions.
- Built-in MOV Protection: Metal oxide varistor suppresses voltage transients at the coil, protecting control panels and wiring.
- Fully Sealed Body: Rated for operation from -40°F to 140°F, fully sealed against moisture and contaminants — appropriate for exterior gate applications exposed to weather.
- Collapsing Blind Nuts: Simplified, damage-resistant fastener system for cleaner installation on tubular gate frames.
- 10 ft Jacketed Cable: Pre-attached jacketed lead cable provides sufficient routing length for most gate and door frame installations.
- MagnaCare Lifetime Replacement: Backed by Securitron's MagnaCare program — a lifetime replacement warranty reflecting confidence in long-term field reliability.
- Made in the Phoenix Factory: Manufactured domestically at Securitron's Phoenix, Arizona production facility.
Compliance & Listings
The M62FGBD carries UL 10C 3-hour fire door listing and meets ANSI/BHMA A156.23 Grade 2 (E08501-1000) for electromagnetic locks. Additional certifications include CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No. 205, CSFM, and CE — supporting a broad range of commercial, institutional, and Canadian project specifications.
Important Installation & Egress Notes
A maglock is not a standalone egress solution. It must be paired with appropriate latching hardware and integrated into a fire-alarm release system per applicable codes. A standalone push button alone does not constitute an approved sole means of egress release. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately if required for your application.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62FGBD |
| Series | Securitron Magnalock |
| Holding Force | 1,200 lb (544 kg) |
| Mounting Configuration | Face drilled, gate conduit |
| Integrated Sensors | BondSTAT bond sensor, door position switch (DPS) |
| Input Voltage | 12 VDC (250 mA) or 24 VDC (150 mA), auto-sensing |
| Finish | 630 Satin Stainless (US32D) |
| Body Dimensions | 8 in L x 3 in H x 2-3/4 in D |
| Operating Temperature | -40°F to 140°F |
| Enclosure | Fully sealed, indoor/outdoor |
| Cable | 10 ft jacketed cable, pre-attached |
| UL Fire Rating | UL 10C, 3-hour |
| ANSI/BHMA Grade | A156.23 Grade 2 (E08501-1000) |
| Additional Listings | CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No. 205, CSFM, CE |
| Warranty | MagnaCare lifetime replacement |
| Origin | Made in Phoenix, AZ, USA |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
