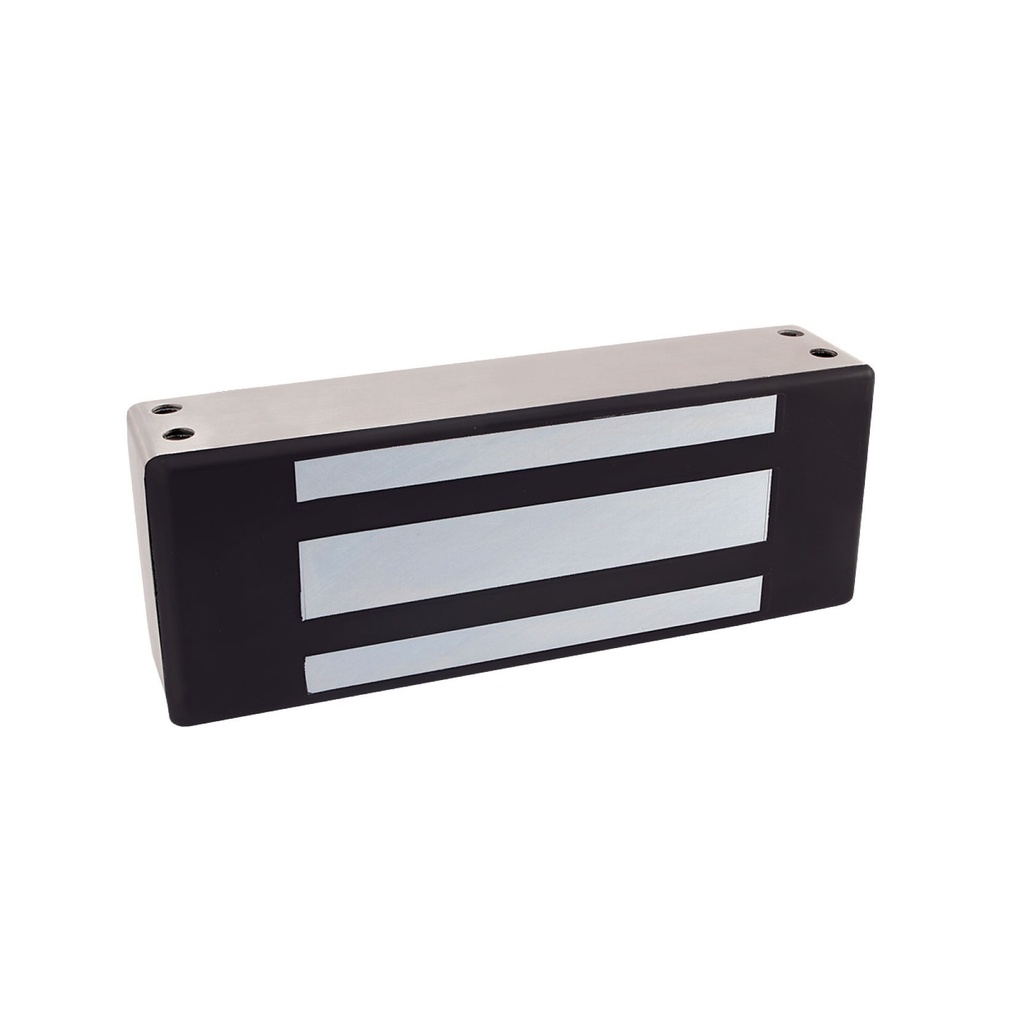

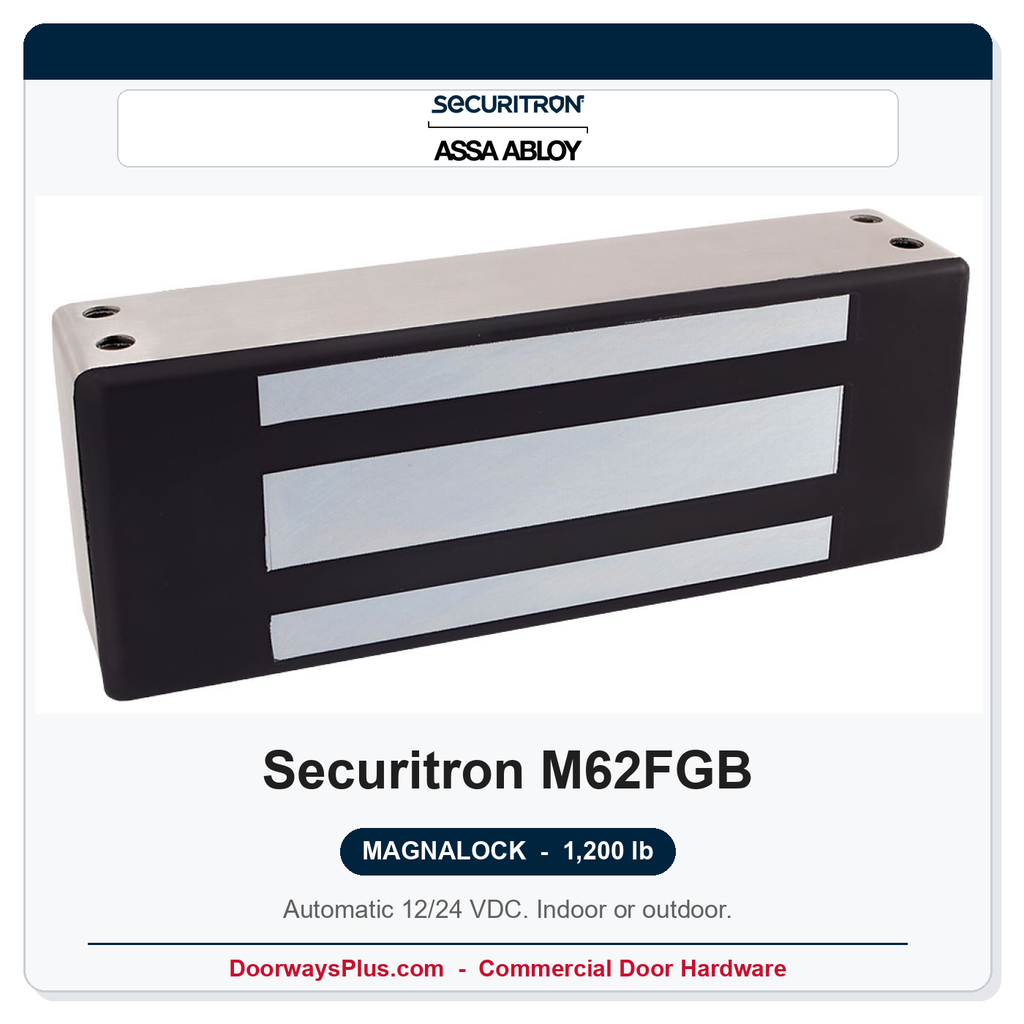

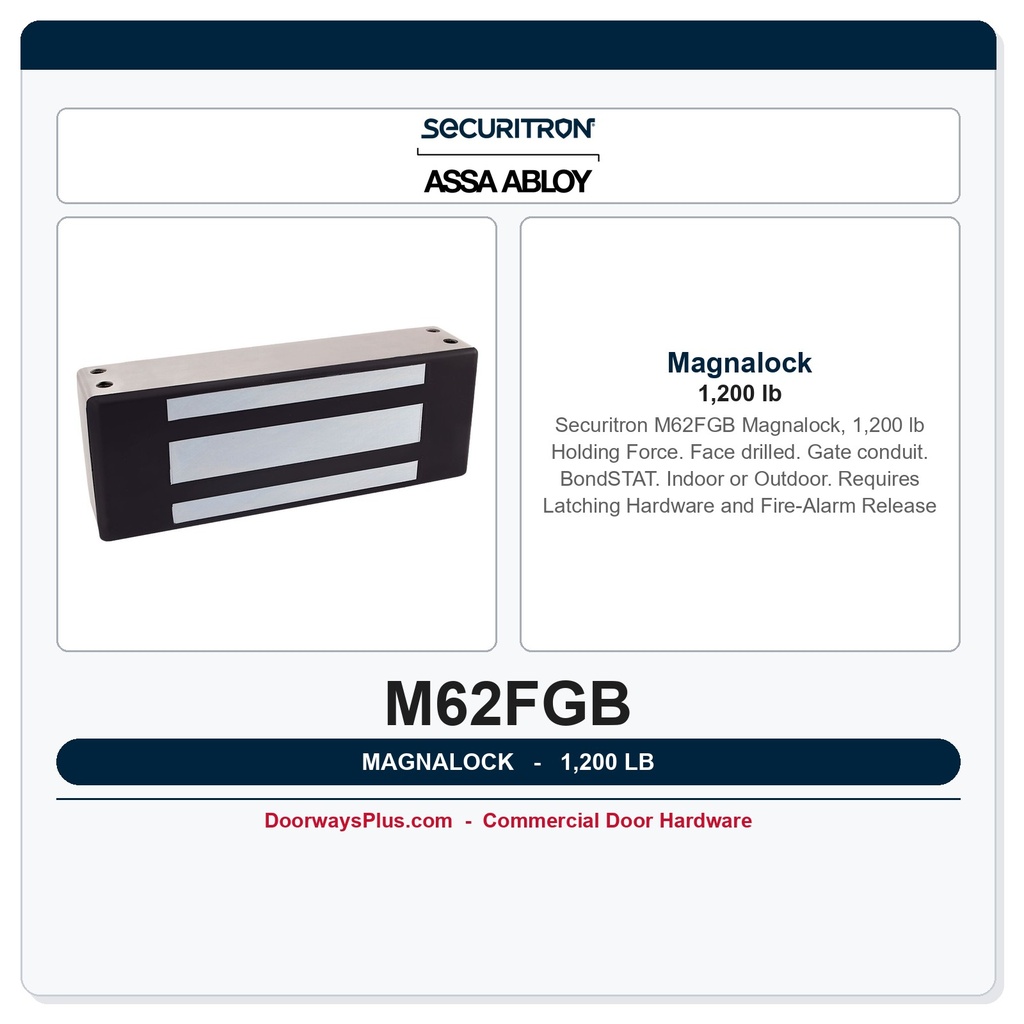

Securitron M62FGB Magnalock – 1,200 lb Electromagnetic Lock, Face Drilled & Gate Conduit, Satin Stainless
The Securitron M62FGB Magnalock is a heavy-duty, 1,200 lb (544 kg) holding-force electromagnetic lock engineered for demanding access-control applications including gates and outdoor perimeter entry points. This specific configuration is face drilled with gate conduit entry and includes the integrated BondSTAT bond sensor — providing real-time door/gate status monitoring for access-control panels. Finished in 630 Satin Stainless (US32D), the M62FGB is fully sealed for indoor or outdoor deployment, operating reliably across an extreme temperature range of -40°F to 140°F. Manufactured at Securitron's Phoenix, Arizona facility, and backed by the MagnaCare lifetime replacement program, this maglock is built for long-term, low-maintenance service.
Key Features & Benefits
- 1,200 lb Holding Force: 544 kg rated holding strength delivers robust security for commercial gates and high-traffic entry points.
- BondSTAT Bond Sensor: Integrated door-position/bond monitoring provides a status signal to the access-control system — confirms lock engagement without a separate sensor.
- Face Drilled & Gate Conduit: Pre-drilled face and gate-style conduit entry simplify field installation on swing gates and non-standard door frames.
- Automatic 12/24 VDC — No Field Adjustment: Accepts 12 VDC (250 mA) or 24 VDC (150 mA) automatically; no voltage-selection jumpers or field re-wiring required.
- PoE Friendly: Current draw is compatible with Power-over-Ethernet access-control infrastructure, reducing dedicated power runs.
- Instant Release / No Residual Magnetism: Drops to zero holding force the moment power is removed — critical for life-safety egress compliance.
- Built-In MOV: Metal oxide varistor suppresses inductive voltage spikes at the coil, protecting control electronics and extending lock service life.
- Fully Sealed Body: Rated for outdoor use with protection against moisture, dust, and environmental contaminants across the full -40°F to 140°F operating range.
- Collapsing Blind Nuts: Secure, damage-tolerant fastener system for solid mounting on hollow or thin substrates.
- 10 ft Jacketed Cable: Pre-attached, jacketed lead wire simplifies wiring to the controller without additional cable management.
- MagnaCare Lifetime Replacement: Securitron's industry-recognized warranty program covers the lock body for the life of the installation.
Certifications & Standards
- UL 10C — 3-Hour Positive-Pressure Fire Door
- ANSI/BHMA A156.23 Grade 2 (E08501-1000)
- ANSI/UL 294 — Access Control Units
- CAN4-S104 / CAN/ULC-S533
- CSA C22.2 No. 205
- CSFM (California State Fire Marshal)
- CE
Installation & Egress Notes
An electromagnetic lock is not a standalone egress solution. Per NFPA 101 and local fire codes, maglocks must be integrated with compliant latching hardware, fire-alarm release, and a request-to-exit device — a push button alone does not satisfy egress requirements. Consult the Authority Having Jurisdiction (AHJ) before specifying. This model does not include an offset strike, split strike, or shock-absorbing strike; order those separately as required by the frame condition. Do not use lithium or NiMH batteries with Securitron AQD or AQS power supplies.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62FGB |
| Brand / Manufacturer | Securitron |
| Holding Force | 1,200 lb (544 kg) |
| Configuration | Face Drilled, Gate Conduit |
| Bond Sensor | BondSTAT (integrated) |
| Voltage / Current | 12 VDC @ 250 mA / 24 VDC @ 150 mA (auto-select) |
| Body Dimensions | 8 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Indoor / Outdoor | Both (fully sealed) |
| Lead Wire | 10 ft jacketed cable |
| Surge Protection | Built-in MOV |
| Fire Rating | UL 10C — 3-Hour Positive Pressure |
| Standards | ANSI/BHMA A156.23 Grade 2, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No.205, CSFM, CE |
| Warranty | MagnaCare Lifetime Replacement |
| Origin | Made in Phoenix, AZ, USA |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
