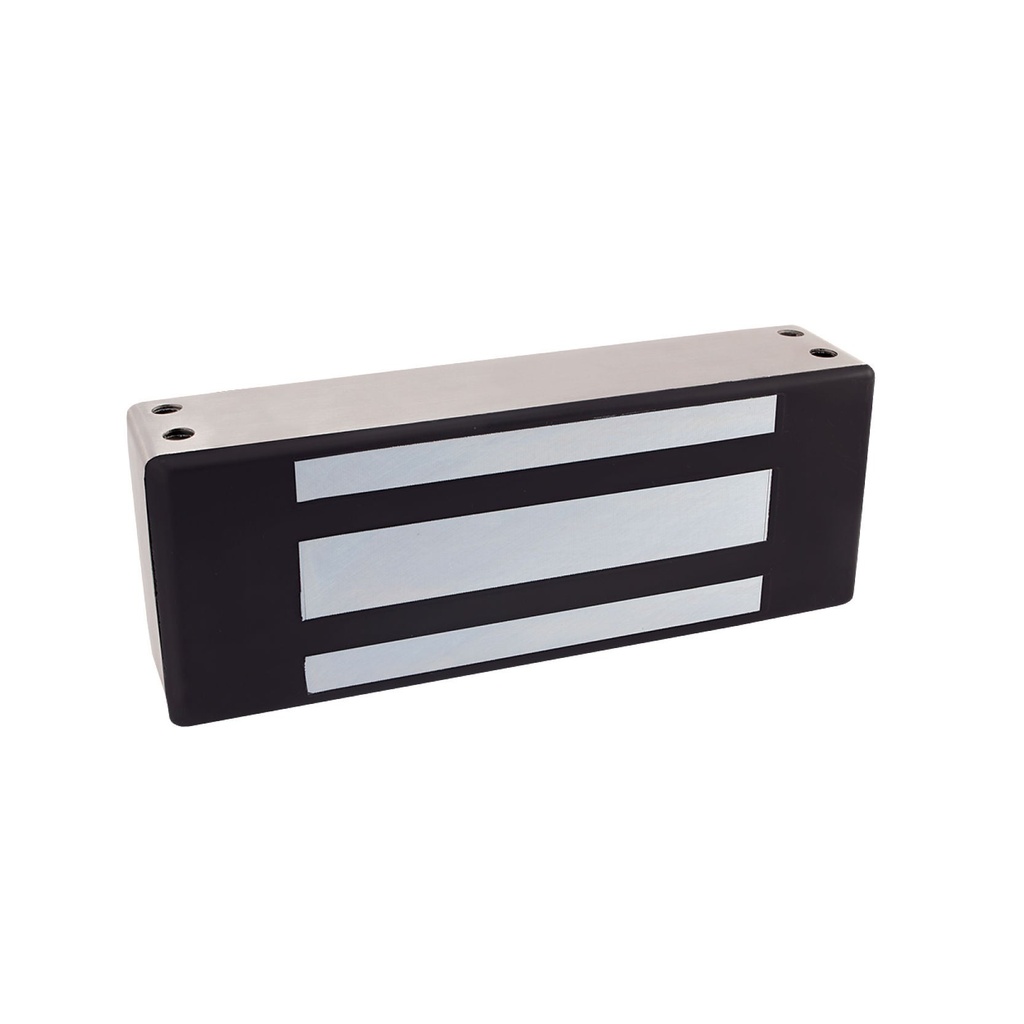

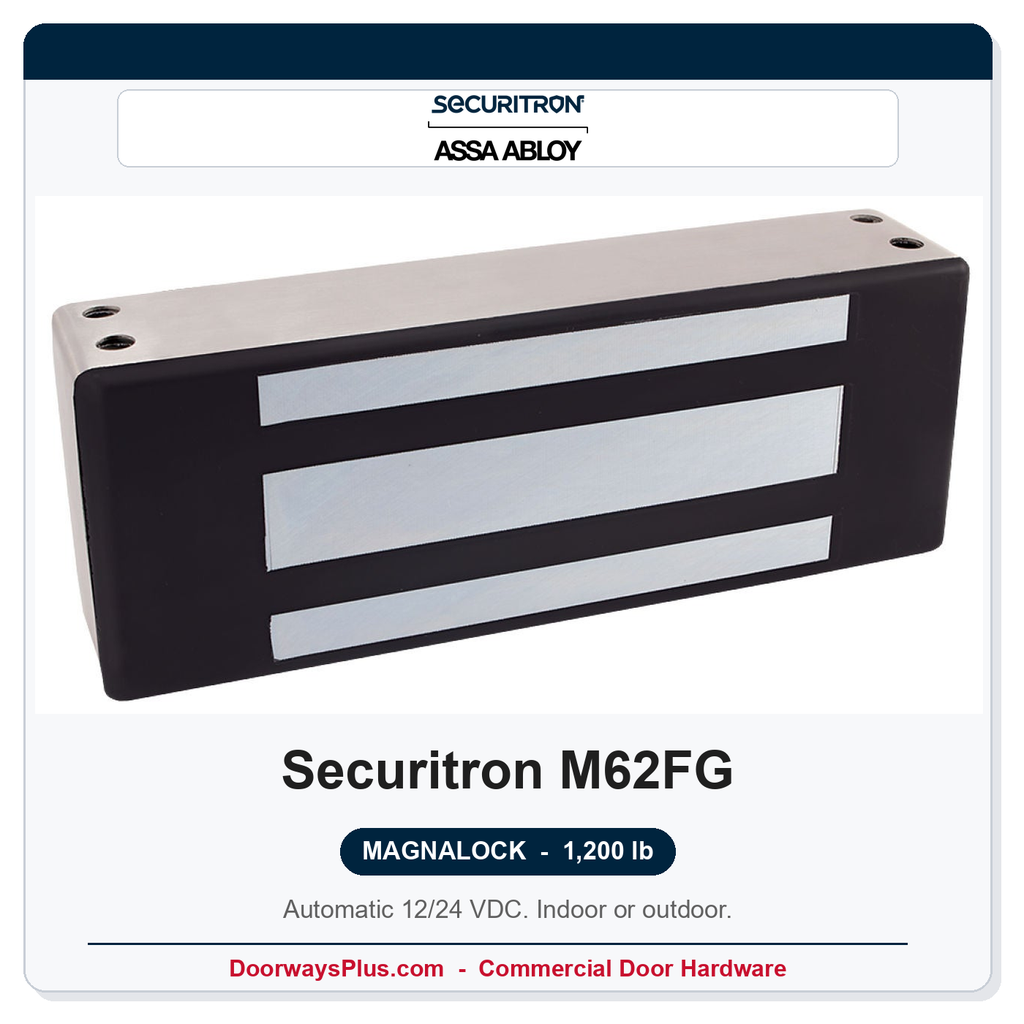

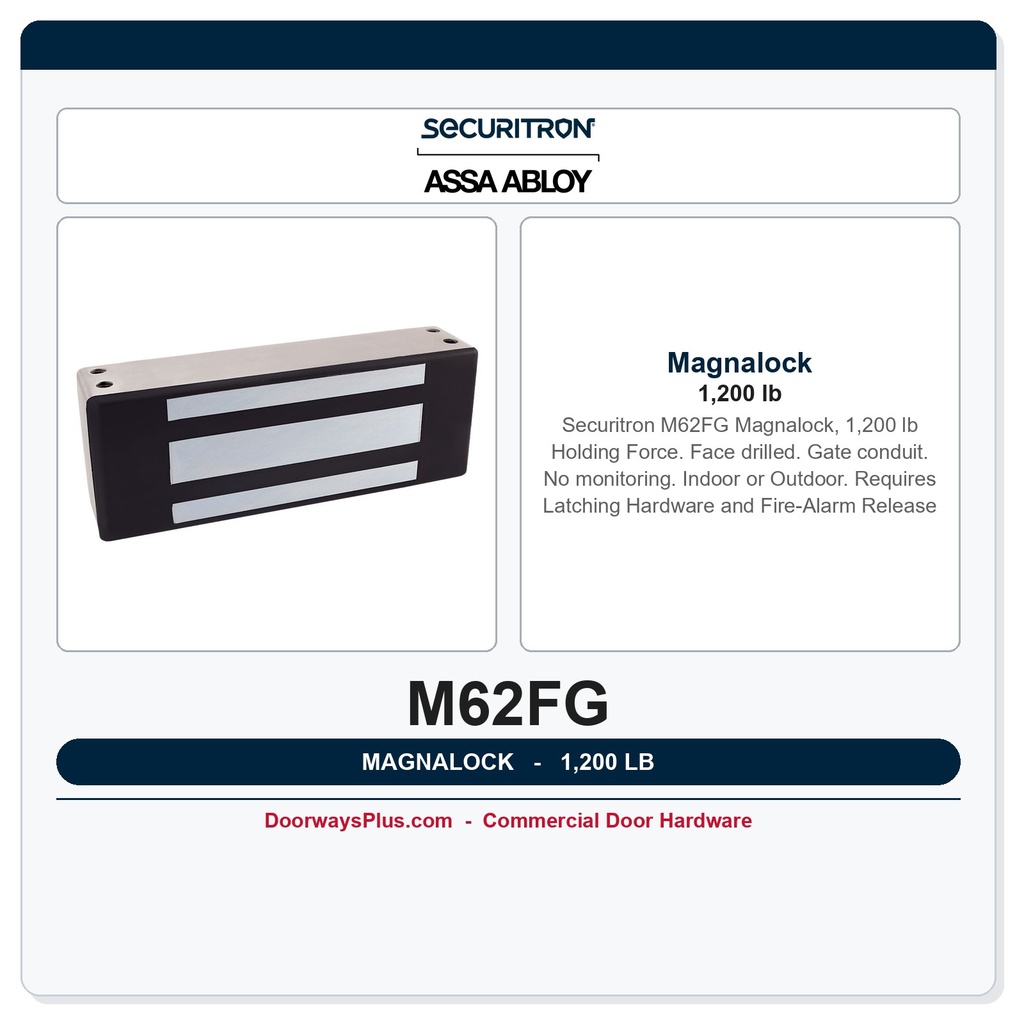

Securitron M62FG Magnalock — 1,200 lb Electromagnetic Lock, Face Drilled, Gate Conduit, Satin Stainless (630)

The Securitron M62FG Magnalock is a heavy-duty electromagnetic lock rated at 1,200 lb (544 kg) holding force, engineered for demanding commercial and industrial access-control applications including gates and perimeter entries. This specific listing is configured face drilled with gate conduit and ships without a bond sensor or door position switch. Finished in 630 Satin Stainless (US32D), the M62FG is fully sealed for both indoor and outdoor installation, operating reliably across a wide temperature range of -40°F to 140°F. Manufactured at Securitron's Phoenix, AZ factory, the M62FG is backed by the MagnaCare lifetime replacement warranty.

Key Features & Benefits

• 1,200 lb Holding Force: Delivers robust electromagnetic holding suitable for high-traffic commercial doors, gates, and perimeter access points requiring maximum security.
• Face Drilled / Gate Conduit: Configured for surface or face-mount installation with gate conduit, ideal for swing gates and similar exterior applications.
• Automatic 12/24 VDC Operation: Auto-sensing dual voltage (250 mA at 12 VDC or 150 mA at 24 VDC) eliminates field voltage adjustment and simplifies integration with existing power supplies. PoE-friendly design supports modern networked access-control infrastructure.
• Instant Release / No Residual Magnetism: Engineered for immediate door release upon power interruption — critical for life-safety code compliance and smooth egress operation.
• Built-in MOV: Metal oxide varistor protects the circuit from voltage transients, extending system life and reducing maintenance requirements.
• Fully Sealed Body: Weather-tight construction rated for outdoor exposure and the full -40°F to 140°F operating range — suitable for harsh environments without additional enclosures.
• Collapsing Blind Nuts: Streamlines installation on hollow doors and gate frames; no special backing required.
• 10 ft Jacketed Cable: Pre-attached jacketed lead wire simplifies wiring runs and protects conductors in exposed installations.
• MagnaCare Lifetime Replacement: Securitron's industry-recognized warranty program provides peace of mind for facility managers and integrators over the life of the installation.
• UL 10C 3-Hour Fire Rated: Listed for use on fire-rated door assemblies, supporting compliance on fire-egress applications.

Certifications & Standards

The M62FG carries an extensive listing package supporting both US and international projects: UL 10C (3-hour fire door), ANSI/BHMA A156.23 Grade 2 (E08501-1000), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, and CE.

Important Egress & Safety Notes

An electromagnetic lock is not a complete egress solution on its own. It must be paired with appropriate latching hardware and integrated with the building's fire-alarm release system. A standalone push button does not satisfy sole-means-of-egress requirements. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately as required by your installation. Do not use lithium or NiMH batteries with AQD or AQS power supplies.
