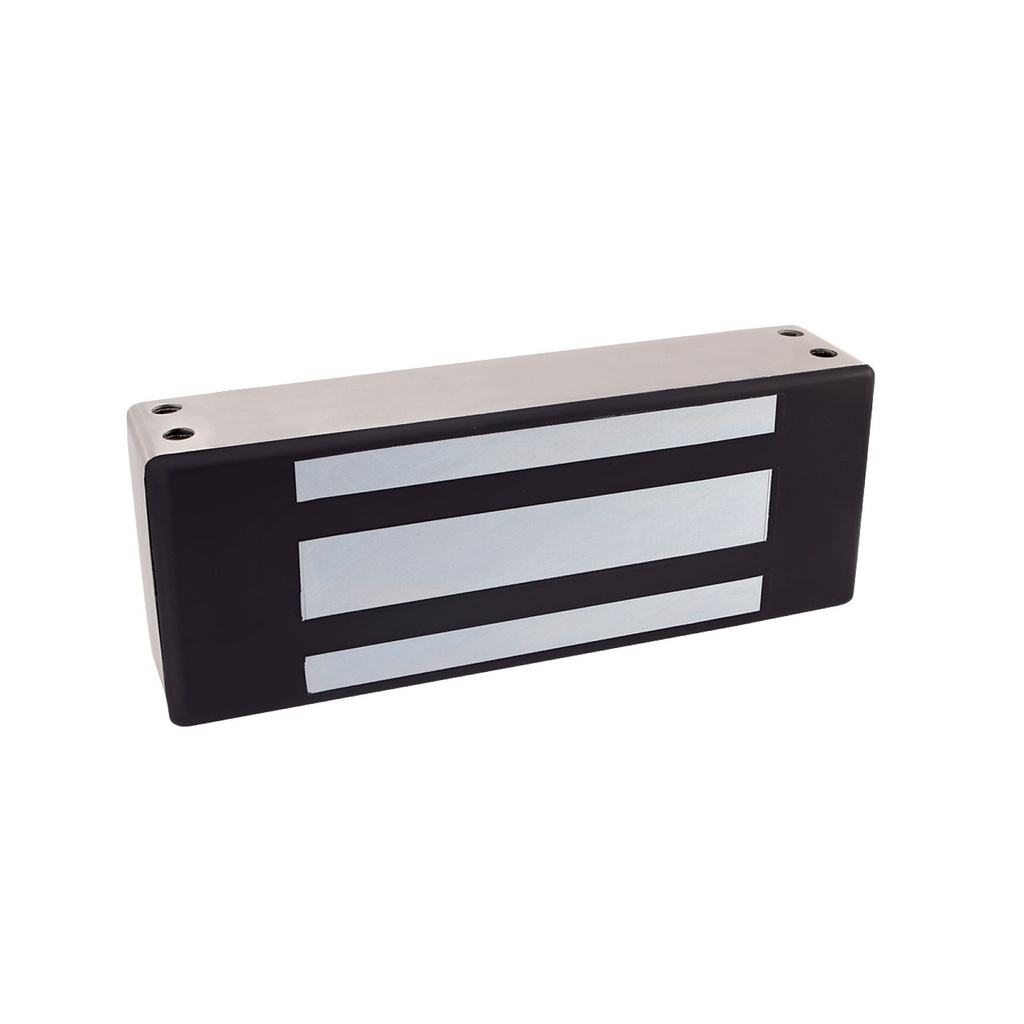

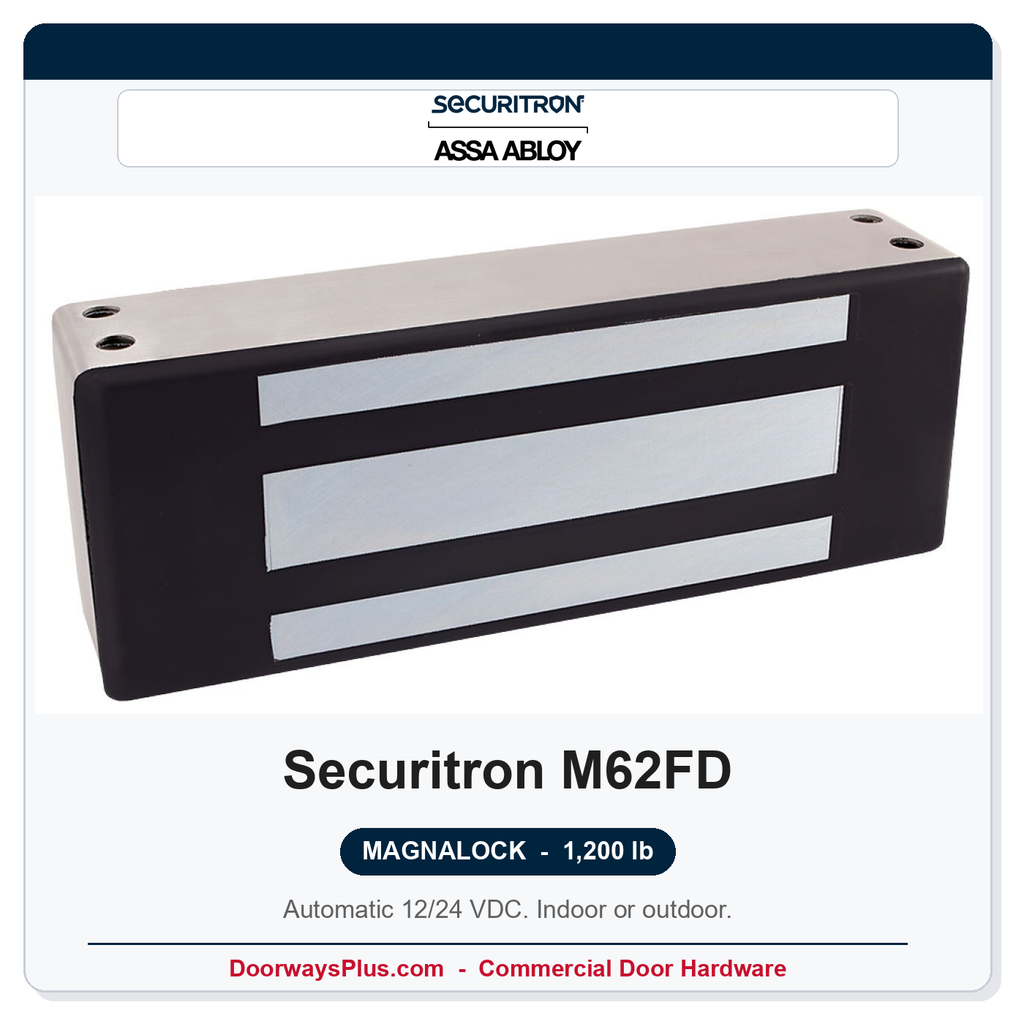

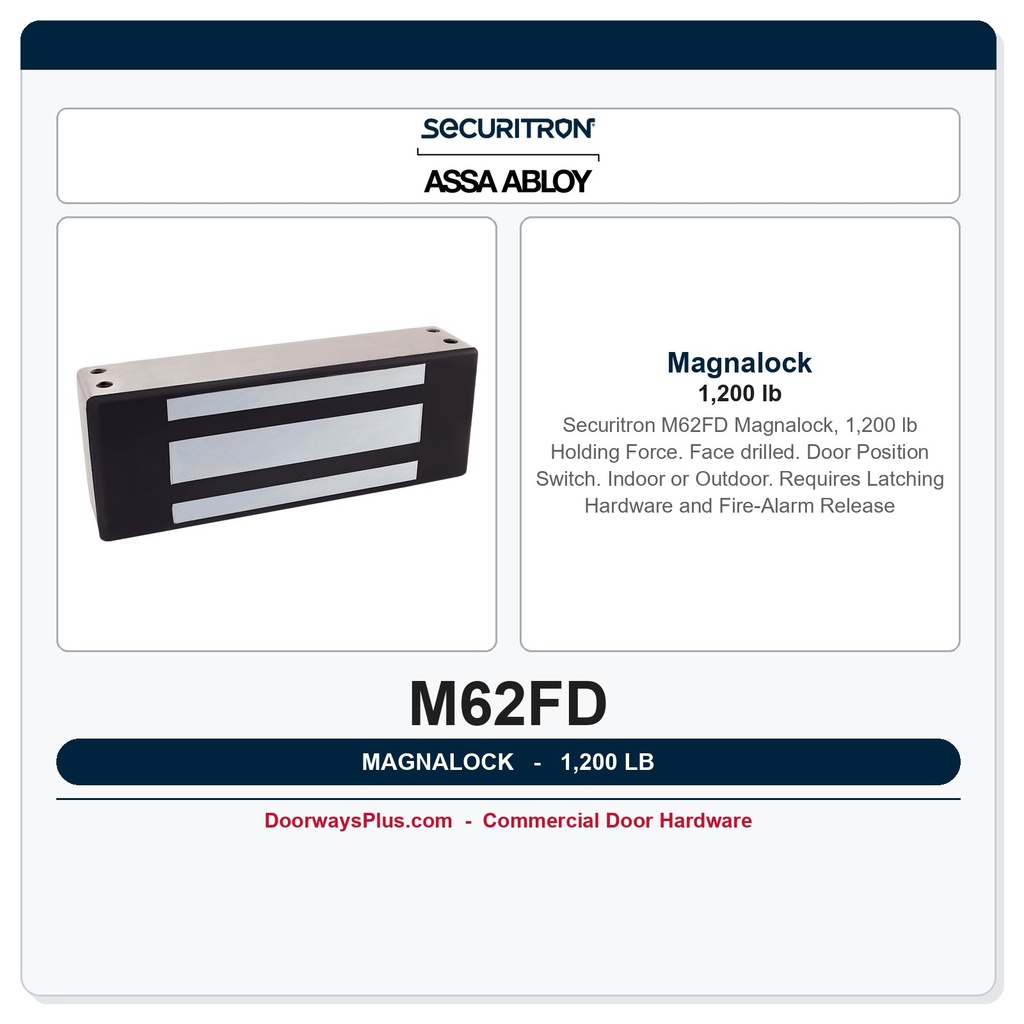

Securitron M62FD Magnalock – 1,200 lb Electromagnetic Lock, Face Drilled, Satin Stainless (630)
The Securitron M62FD Magnalock is a heavy-duty, 1,200 lb (544 kg) holding-force electromagnetic lock designed for demanding commercial access control applications. This listing is the face-drilled configuration with an integrated door position switch (DPS), finished in 630 Satin Stainless (US32D). Manufactured at Securitron's Phoenix facility, the M62FD delivers institutional-grade security for single doors in interior or exterior openings, rated for operation from -40°F to 140°F. Its fully sealed, weatherproof housing makes it equally at home on exterior vestibule doors, covered parking structures, and climate-controlled server rooms.
Key Features & Benefits
- 1,200 lb Holding Force: Provides robust, shear-resistant holding strength suitable for high-traffic commercial and institutional openings.
- Face-Drilled Configuration: Simplified installation on standard aluminum and hollow-metal door frames; no through-bolt required, reducing labor time.
- Integrated Door Position Switch: Monitors door status in real time, enabling alarm panel integration and access control system feedback without additional hardware.
- Automatic 12/24 VDC Operation: Draws 250 mA at 12 VDC or 150 mA at 24 VDC — auto-sensing with no field voltage adjustment needed; PoE-friendly power budget.
- Instant Release, No Residual Magnetism: Door releases immediately upon power interruption with no magnetic pull-lag, supporting life-safety egress requirements.
- Built-In MOV (Metal Oxide Varistor): Suppresses voltage transients to protect connected control equipment and extend lock service life.
- Collapsing Blind Nuts: Self-aligning fastener system accommodates minor mounting surface irregularities for a secure, rattle-free installation.
- Fully Sealed Housing: Weatherproof construction rated for indoor and outdoor use; resists moisture, dust, and temperature extremes (-40°F to 140°F).
- 10 ft Jacketed Cable: Pre-wired pigtail simplifies field wiring to the power supply or control panel.
- MagnaCare Lifetime Replacement: Securitron's industry-recognized warranty program provides lifetime replacement coverage on the maglock body.
- Multiple Certifications: UL 10C 3-hour fire-rated; ANSI/BHMA A156.23 Grade 2; listed to CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No.205, CSFM, and CE — supporting specification on a wide range of project types.
Egress & Life-Safety Notes
An electromagnetic lock is not a complete egress solution by itself. Per applicable fire and building codes, the M62FD must be paired with latching hardware (e.g., a panic device or lever trim) and a fire-alarm release interface so the lock releases automatically upon alarm activation. A standalone push button does not constitute a compliant sole-means-of-egress release. Consult your authority having jurisdiction (AHJ) for code compliance. Note: This model does not include an offset strike, split strike, or shock-absorbing strike — order separately as required by your door and frame conditions.
Typical Applications
- Commercial office building entry and stairwell doors
- Healthcare and hospital access-controlled corridors
- Education and university facility perimeter doors
- Government and municipal secured-area entry points
- Retail and mixed-use exterior vestibule doors
- Data centers and server room controlled access
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62FD |
| Manufacturer | Securitron |
| Holding Force | 1,200 lb (544 kg) |
| Configuration | Face drilled with integrated door position switch |
| Finish | 630 Satin Stainless (US32D) |
| Body Dimensions | 8 in L × 3 in H × 2-3/4 in D |
| Voltage / Current | 250 mA @ 12 VDC / 150 mA @ 24 VDC (auto 12/24 VDC) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Environment | Indoor or outdoor; fully sealed |
| Cable | 10 ft jacketed pigtail |
| Fire Rating | UL 10C, 3-hour |
| ANSI/BHMA Grade | A156.23 Grade 2 (E08501-1000) |
| Additional Listings | CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No.205, CSFM, CE |
| Warranty | MagnaCare Lifetime Replacement |
| Origin | Made in Phoenix, AZ, USA |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
