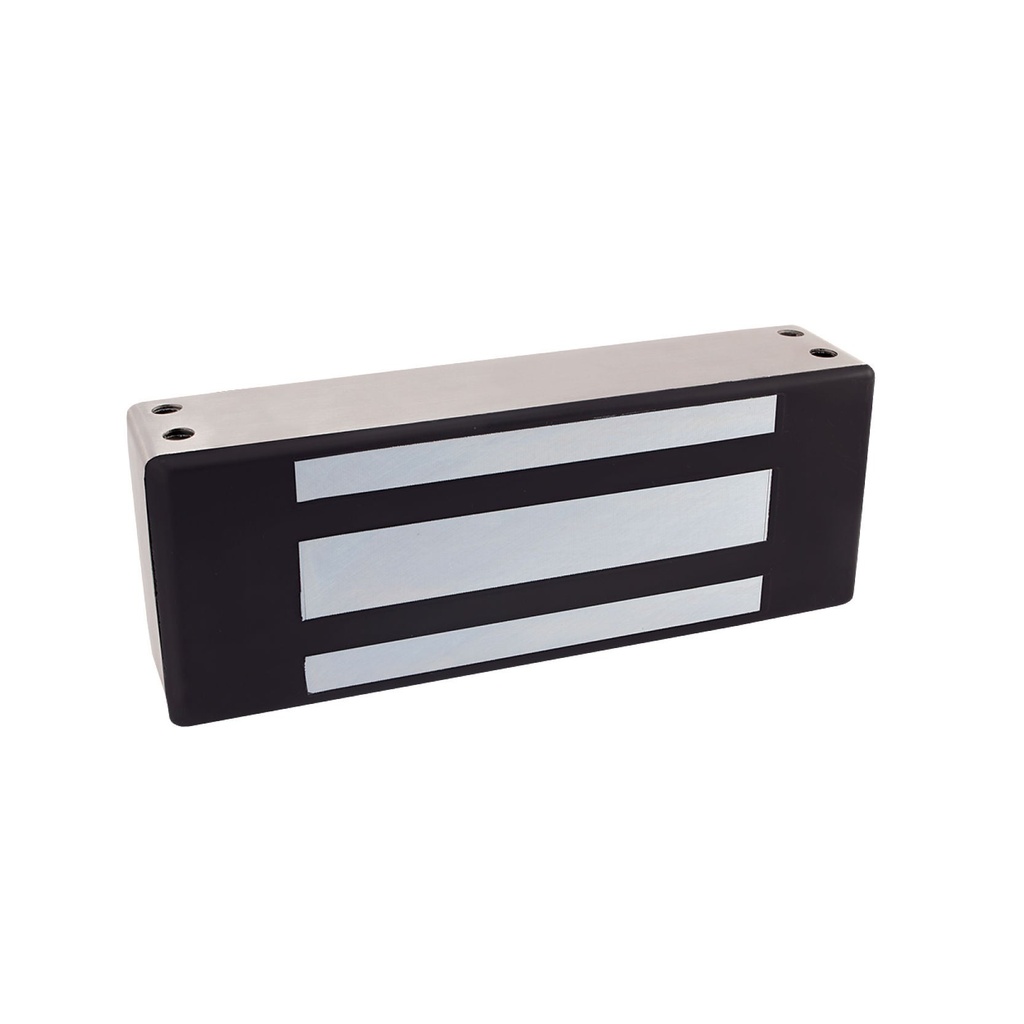

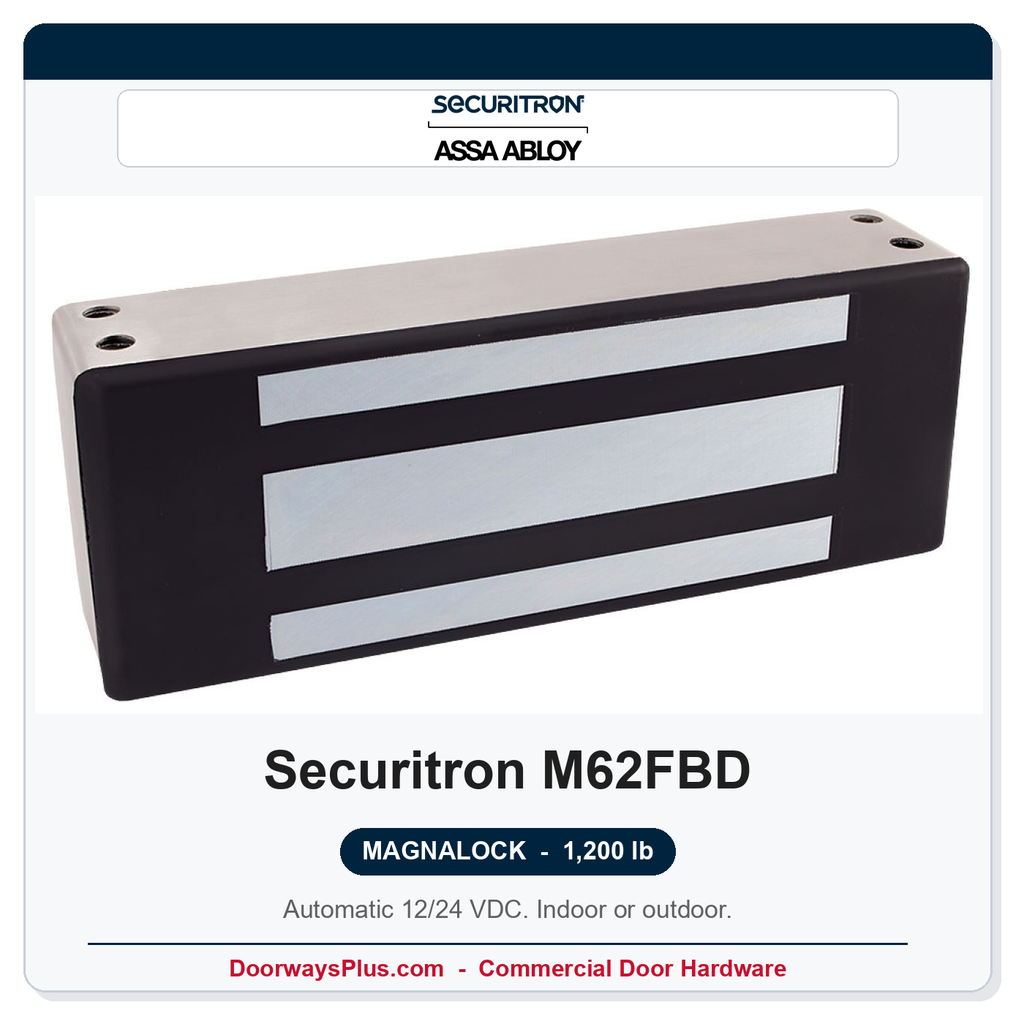

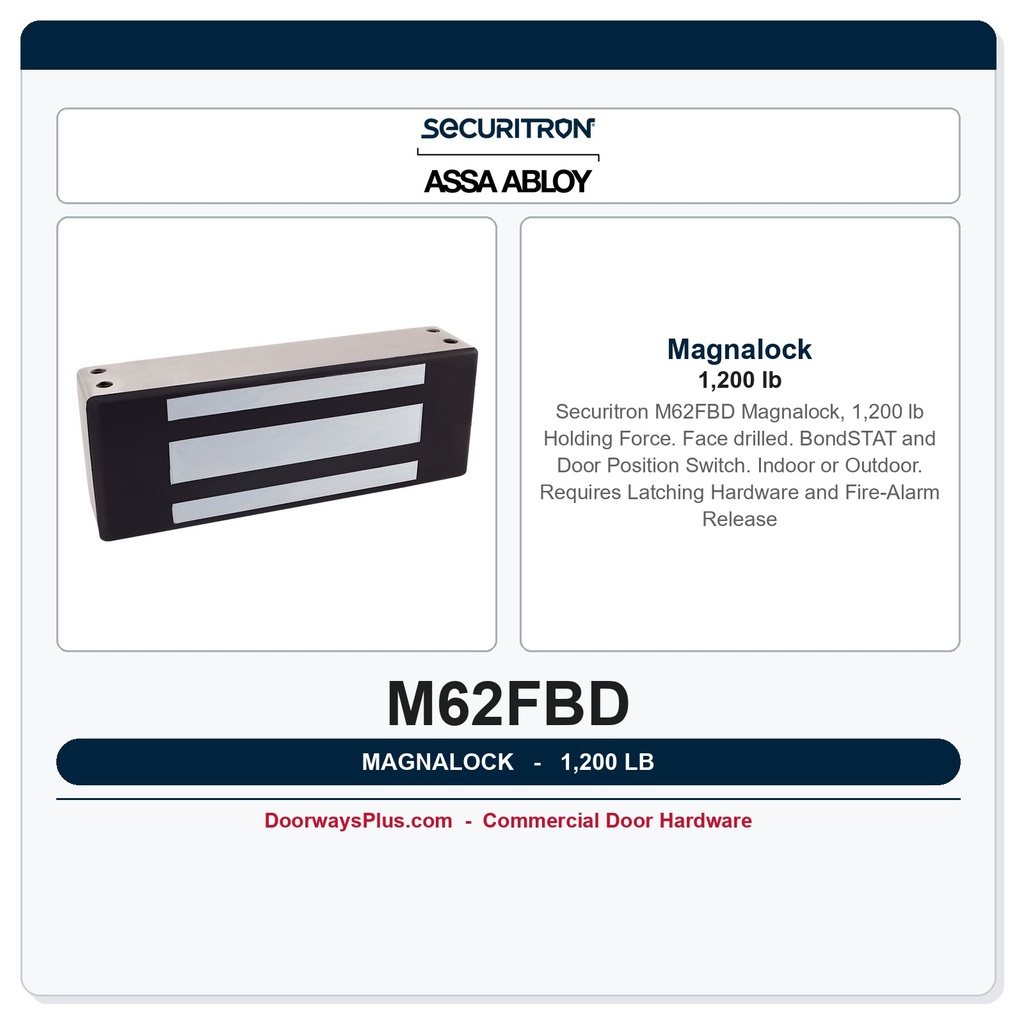

Securitron M62FBD Magnalock – 1,200 lb Electromagnetic Lock, Face Drilled, Satin Stainless (630)
The Securitron M62FBD Magnalock is a heavy-duty, 1,200 lb (544 kg) holding-force electromagnetic lock engineered for demanding commercial and institutional access-control applications. This listing is the face-drilled configuration, factory-finished in 630 satin stainless (US32D). It ships with an integrated BondSTAT bond sensor and a built-in door position switch (DPS), providing two critical status signals — bond confirmation and door-ajar detection — in a single compact housing. Manufactured at Securitron's Phoenix factory, the M62FBD is backed by the MagnaCare lifetime replacement warranty.
Key Features & Benefits
- 1,200 lb Holding Force: Meets the demands of high-traffic commercial doors, secured vestibules, and controlled-access corridors where maximum electromagnetic holding strength is required.
- BondSTAT Bond Sensor: Monitors actual electromagnetic bond between the lock body and armature plate, signaling the access-control panel when a secure hold is confirmed — reducing false-access events.
- Integrated Door Position Switch: Eliminates the need for a separate DPS device; reports door-open/door-closed status directly to your access-control system.
- Automatic 12/24 VDC Operation: Draws 250 mA at 12 VDC or 150 mA at 24 VDC with no field voltage adjustment required — simplifies installation and reduces commissioning time.
- PoE Friendly: Low current draw at 24 VDC is compatible with Power-over-Ethernet access-control infrastructure.
- Instant Release / No Residual Magnetism: Door releases the moment power is removed — critical for life-safety egress compliance. Built-in MOV (metal oxide varistor) suppresses voltage transients and protects system electronics.
- Fully Sealed Body: Rated for indoor and outdoor use across an operating temperature range of -40°F to 140°F, making it suitable for exterior vestibule doors, covered walkways, and cold-storage facilities.
- Collapsing Blind Nuts: Secure mounting into hollow-section door frames and surfaces without requiring access to the back side of the mounting surface.
- 10 ft Jacketed Cable: Factory-attached lead wire provides adequate routing length for most door applications, reducing field splicing.
- MagnaCare Lifetime Replacement: Securitron's industry-recognized warranty program provides long-term ownership confidence.
Certifications & Listings
The M62FBD carries a comprehensive listing portfolio for projects requiring third-party verification: UL 10C 3-Hour Fire Door, ANSI/BHMA A156.23 Grade 2 (E08501-1000), ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, and CE.
Important Egress & Installation Notes
A magnetic lock is not a complete egress solution on its own. It must be paired with approved latching hardware and a fire-alarm release interface per applicable codes. A standalone push button does not constitute the sole means of egress release. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately if required. Do not use lithium or NiMH batteries with AQD or AQS power supplies in this system.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62FBD |
| Manufacturer | Securitron (Phoenix, AZ factory) |
| Configuration | Face Drilled |
| Holding Force | 1,200 lb (544 kg) |
| Finish | 630 Satin Stainless (US32D) |
| Current Draw | 250 mA @ 12 VDC / 150 mA @ 24 VDC |
| Voltage | Automatic 12/24 VDC (no field adjustment) |
| Body Dimensions | 8 in L × 3 in H × 2-3/4 in D |
| Sensors Included | BondSTAT Bond Sensor, Door Position Switch |
| Operating Temperature | -40°F to 140°F |
| Indoor / Outdoor | Both (fully sealed body) |
| Lead Wire | 10 ft jacketed cable |
| Surge Protection | Built-in MOV |
| Mounting Hardware | Collapsing blind nuts included |
| Warranty | MagnaCare Lifetime Replacement |
| Fire Rating | UL 10C 3-Hour |
| Standards | ANSI/BHMA A156.23 Grade 2, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, CE |
| Strikes Included | None (offset, split, and shock-absorbing strikes sold separately) |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
