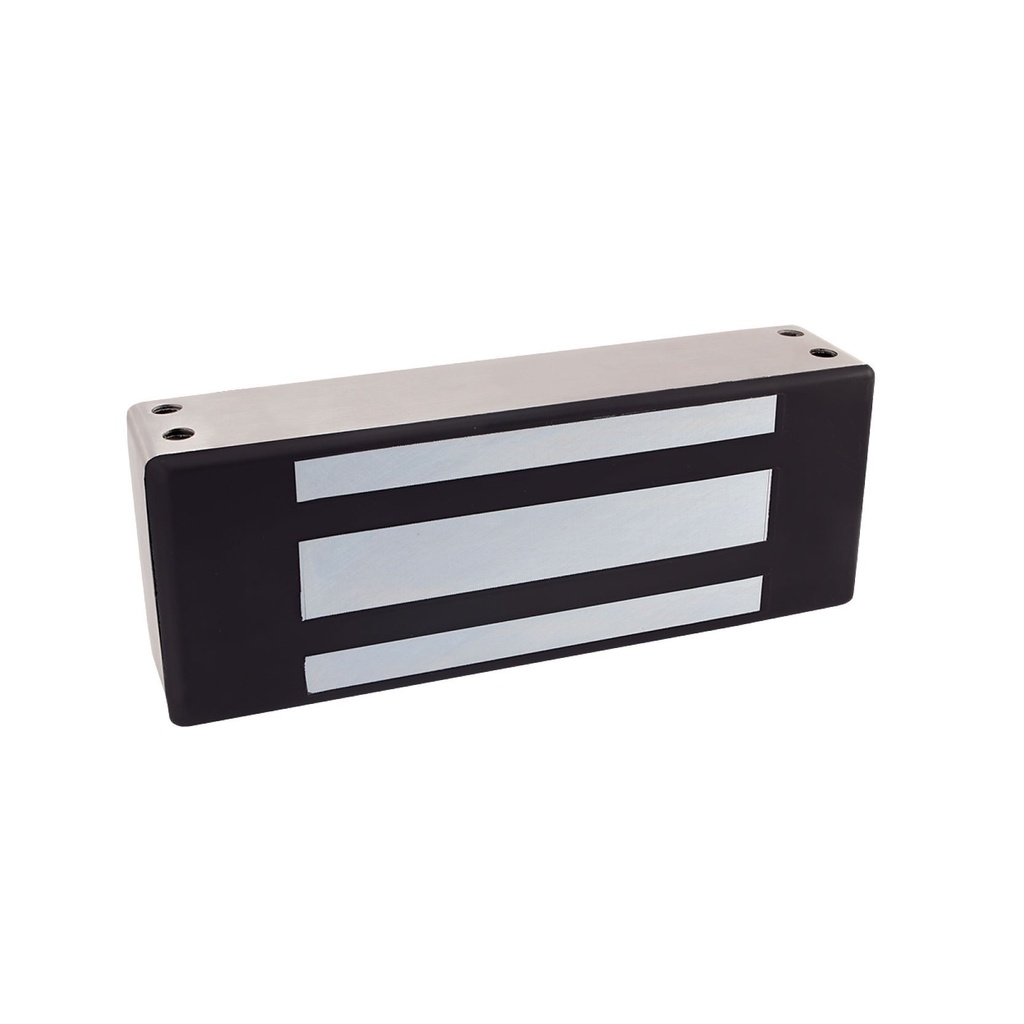

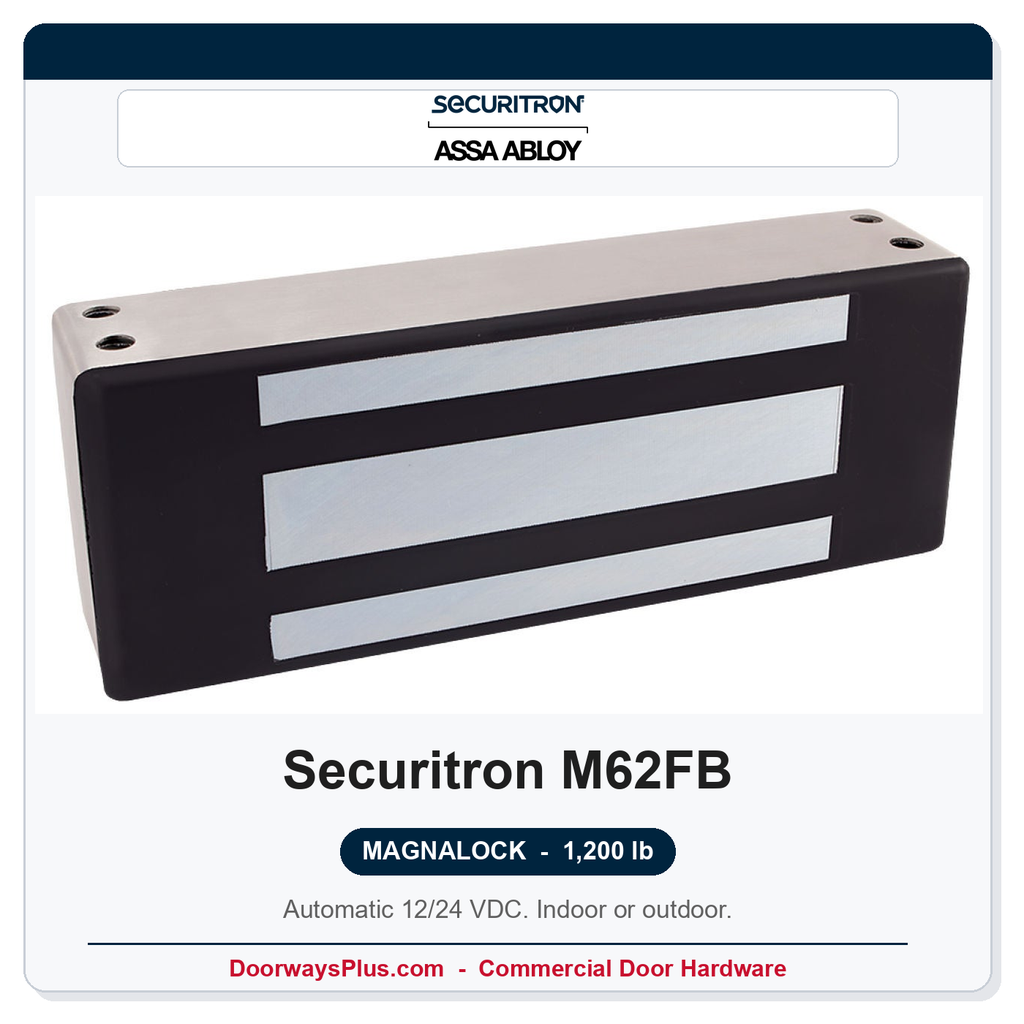

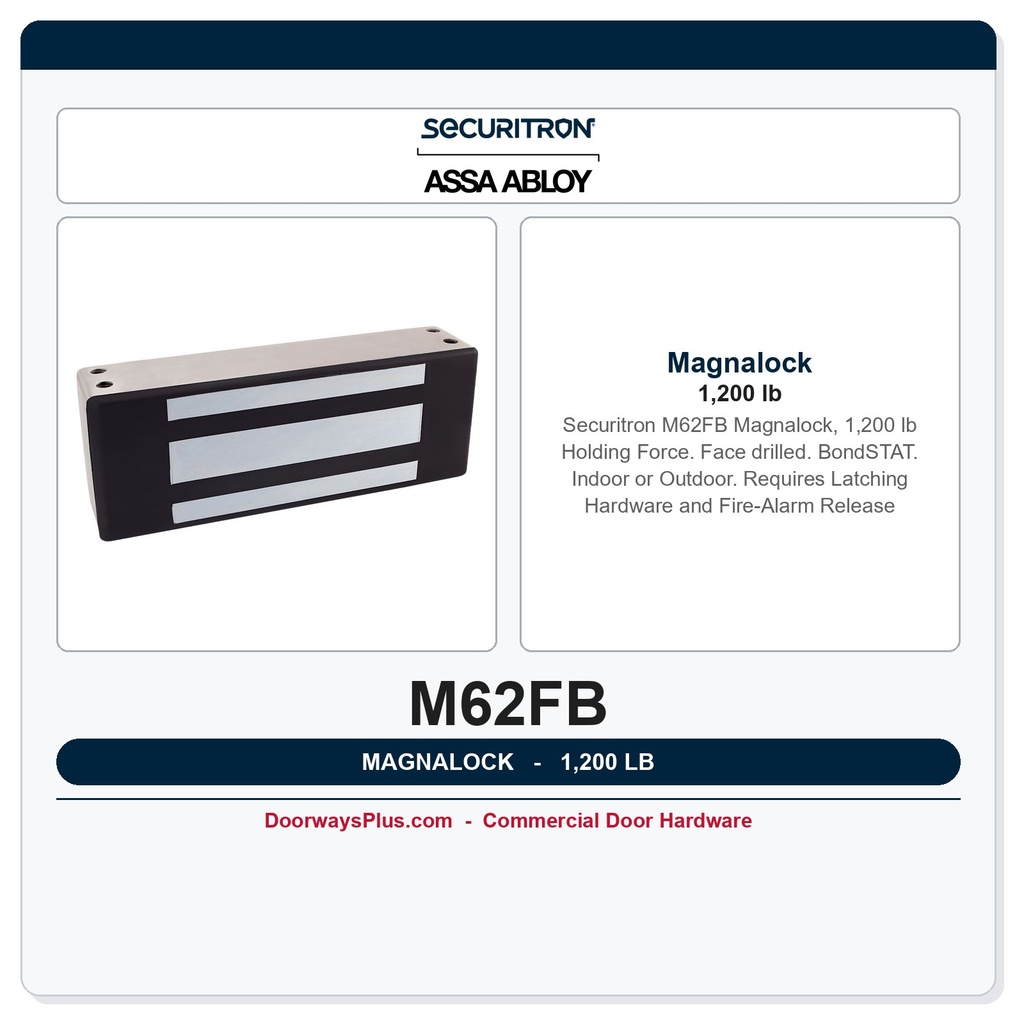

Securitron M62FB Magnalock – 1,200 lb Electromagnetic Lock, Face Drilled with BondSTAT Sensor
The Securitron M62FB Magnalock is a heavy-duty, 1,200 lb (544 kg) holding-force electromagnetic lock designed for demanding commercial and institutional access control applications. This listing is the face-drilled configuration and includes the integrated BondSTAT bond sensor, which provides continuous monitoring of the magnetic bond — a critical feature for access control systems that require door-position or lock-status feedback. Manufactured at Securitron's Phoenix factory, the M62FB carries the MagnaCare lifetime replacement warranty and is backed by an extensive listing portfolio covering fire-rated, UL, CSA, and international standards.
Key Features & Benefits
- 1,200 lb Holding Force: Provides robust security for single-door access control on metal, wood, or aluminum-framed doors in high-traffic commercial environments.
- BondSTAT Bond Sensor: Built-in bond monitoring confirms actual magnetic engagement, enabling real-time status feedback to access control panels — essential for code-compliant supervised egress systems.
- Automatic 12/24 VDC Operation: Accepts 12 VDC (250 mA) or 24 VDC (150 mA) automatically with no field voltage adjustment required, simplifying installation and reducing wiring errors.
- Instant Release, No Residual Magnetism: Drops power and releases immediately — no magnetic remanence delay that could impede egress or cause nuisance alarms.
- Fully Sealed, Indoor/Outdoor Rated: Operates across a wide temperature range of -40°F to 140°F (-40°C to 60°C), suitable for exterior vestibules, covered parking structures, and harsh environments.
- PoE Friendly: Compatible with Power-over-Ethernet infrastructure, supporting modern networked access control deployments.
- Built-in MOV: Metal Oxide Varistor protects the control circuit from voltage transients, extending system longevity.
- Collapsing Blind Nuts: Engineered fastener system simplifies mounting to hollow-metal frames and aluminum extrusions without special tooling.
- 10 ft Jacketed Cable: Pre-attached, jacketed lead wire for clean, professional installations.
- UL 10C 3-Hour Fire Rated: Certified for use on fire-rated door assemblies, meeting the requirements of NFPA 80 and adopted by AHJs nationwide.
- Finish – 630 Satin Stainless (US32D): Corrosion-resistant satin stainless finish is well-suited for high-humidity or exterior applications.
Compliance & Listings
The Securitron M62FB holds listings under ANSI/BHMA A156.23 Grade 2 (E08501-1000), CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No. 205, CSFM, and CE, making it suitable for U.S., Canadian, and select international installations.
Important Egress & Installation Notes
A magnetic lock is not a complete egress solution on its own. It must be paired with code-compliant latching hardware and fire-alarm or emergency power-off release. A standalone push button does not constitute a sole means of egress release under IBC, NFPA 101, or local codes. Consult your AHJ for compliant egress sequencing. This model does not include an offset strike, split strike, or shock-absorbing strike; order separately as required by your door/frame geometry. Do not use lithium or NiMH batteries with AQD or AQS power supplies.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62FB |
| Part Type | Electromagnetic Lock (Magnalock), Face Drilled |
| Holding Force | 1,200 lb (544 kg) |
| Sensor | BondSTAT Bond Sensor (integrated) |
| Voltage / Current | 12 VDC @ 250 mA or 24 VDC @ 150 mA; automatic 12/24 VDC |
| Body Dimensions | 8 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Environment | Indoor or Outdoor; Fully Sealed |
| Cable | 10 ft jacketed lead wire (pre-attached) |
| Warranty | MagnaCare Lifetime Replacement |
| Fire Rating | UL 10C, 3-Hour |
| Standards / Listings | ANSI/BHMA A156.23 Grade 2 (E08501-1000), CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No. 205, CSFM, CE |
| Origin | Made in Phoenix, AZ, USA |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
