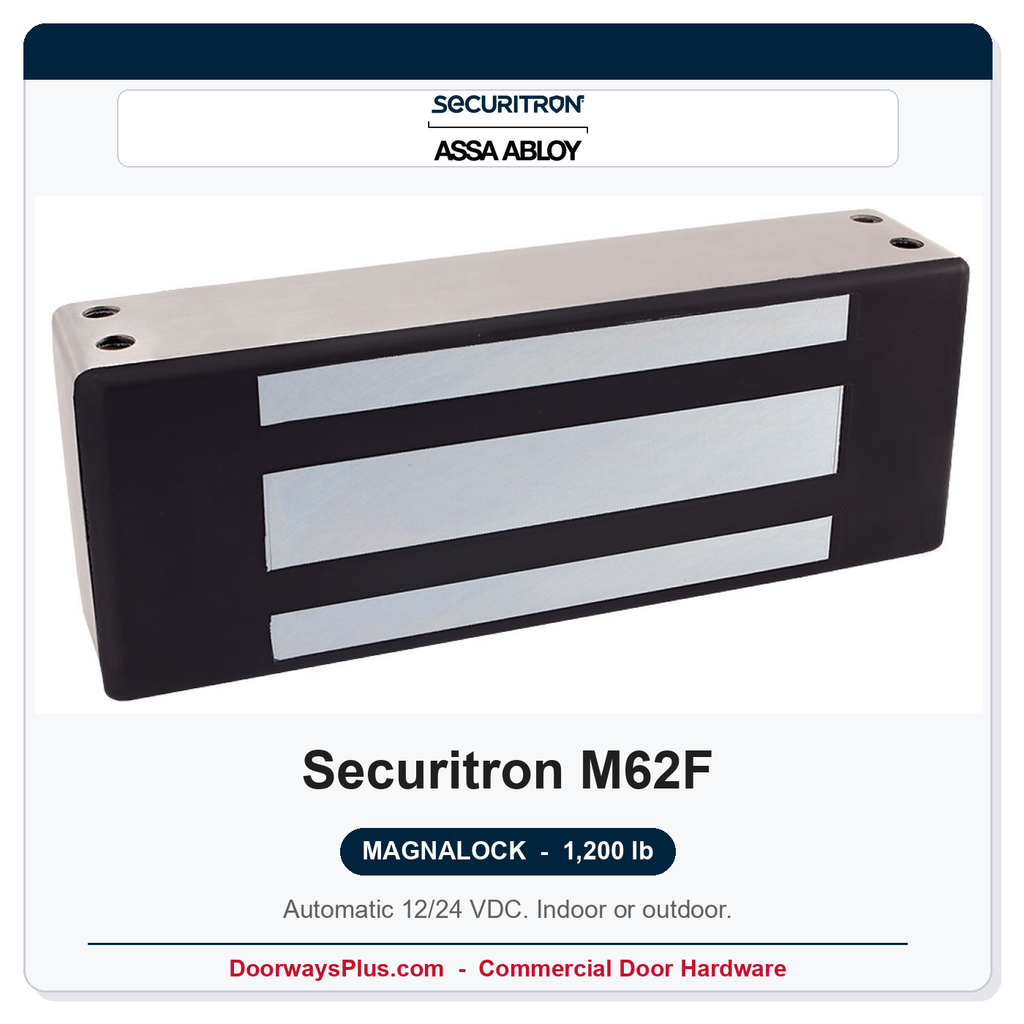

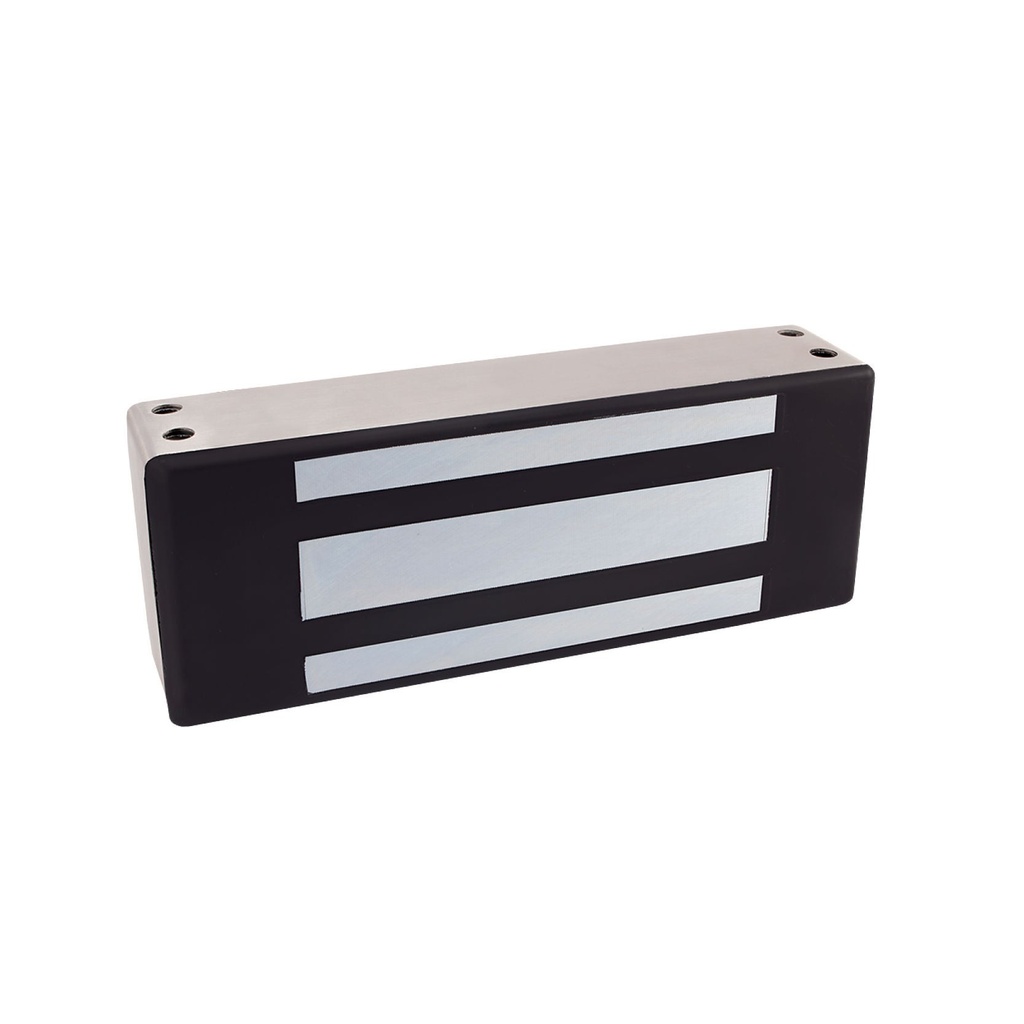

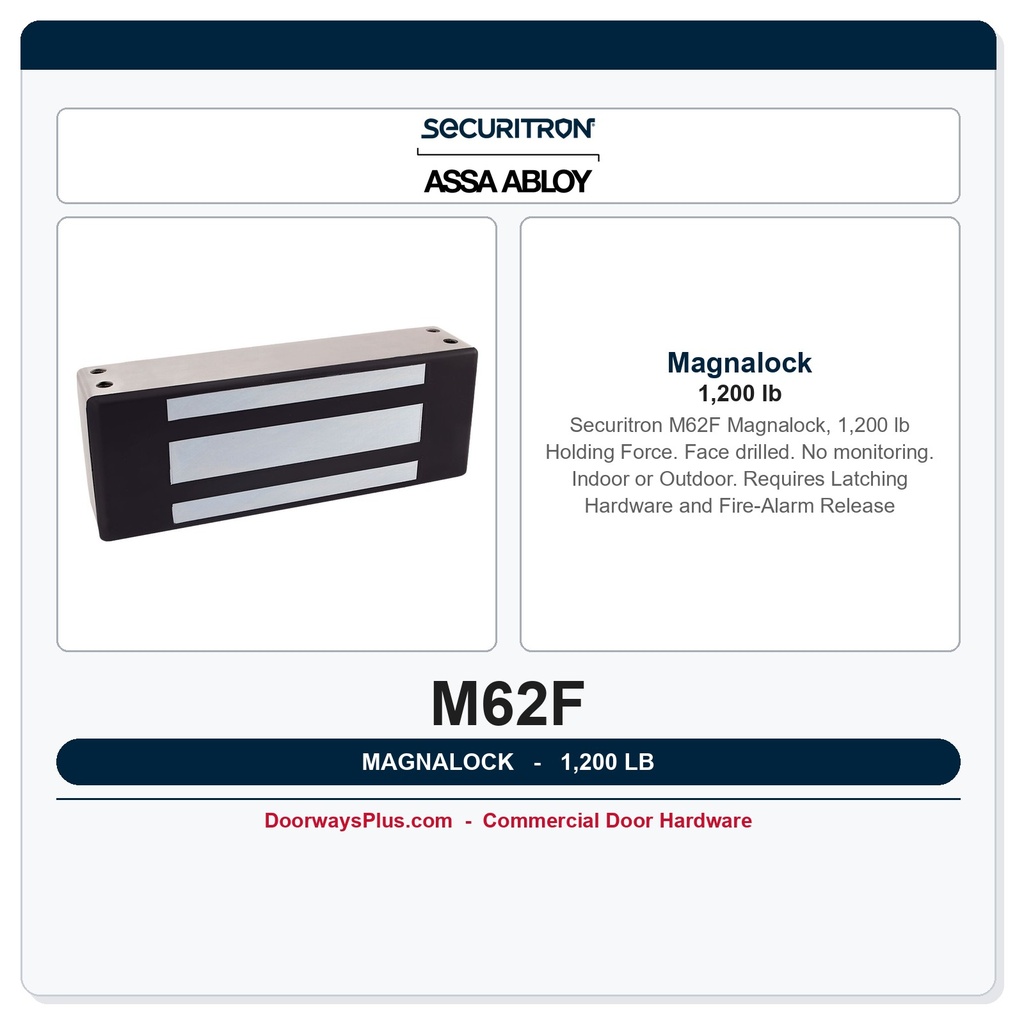

Securitron M62F Magnalock — 1,200 lb Electromagnetic Lock, Face Drilled, 630 Satin Stainless
The Securitron M62F Magnalock is a heavy-duty, 1,200 lb (544 kg) holding-force electromagnetic lock designed for commercial and institutional access control applications. This listing is the face-drilled configuration — no bond sensor and no door position switch — finished in 630 satin stainless (US32D). The M62F is fully sealed for use in both indoor and outdoor environments, rated for an operating range of -40°F to 140°F, and engineered for long-term, service-free performance at Securitron's Phoenix manufacturing facility.
Key Features & Benefits
- High Holding Force: 1,200 lb (544 kg) rated strength suits single commercial doors where robust security is required.
- Automatic 12/24 VDC Input: Operates at 250 mA at 12 VDC or 150 mA at 24 VDC with automatic voltage sensing — no field voltage adjustment needed, simplifying installation and power supply selection.
- PoE Friendly: Compatible with Power-over-Ethernet architectures, supporting modern networked access control infrastructure.
- Instant Release / No Residual Magnetism: Drops immediately upon power interruption — critical for egress compliance and fire-alarm integration.
- Built-In MOV: Metal oxide varistor provides transient voltage suppression, protecting the lock and connected electronics from voltage spikes.
- Fully Sealed Body: Weatherproof construction handles outdoor exposure, dust, and humidity without degradation.
- Collapsing Blind Nuts: Simplify surface mounting on hollow or thin substrates without the need for special backing hardware.
- 10 ft Jacketed Cable: Pre-installed lead wire eases wiring runs to access control panels or power supplies.
- MagnaCare Lifetime Replacement: Securitron's warranty program covers the unit against manufacturing defects for the life of the product.
- Fire-Rated & Code Listed: UL 10C 3-hour rated; listed to ANSI/BHMA A156.23 Grade 2, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, and CE — suitable for rated openings when properly integrated.
Egress & Code Compliance Notice
A maglock is not a complete egress solution on its own. It must be paired with code-compliant latching hardware and a fire-alarm release circuit per applicable local codes. A standalone push button is not an acceptable sole means of egress release. Consult your AHJ and project specifications for compliant egress coordination. This model does not include an offset strike, split strike, or shock-absorbing strike.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62F |
| Manufacturer | Securitron (Phoenix, AZ factory) |
| Holding Force | 1,200 lb (544 kg) |
| Voltage / Current | 12 VDC @ 250 mA or 24 VDC @ 150 mA; automatic 12/24 VDC sensing |
| Body Dimensions | 8 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Drilling Configuration | Face drilled; no bond sensor; no door position switch |
| Application | Indoor or outdoor |
| Operating Temperature | -40°F to 140°F |
| Lead Wire | 10 ft jacketed cable pre-installed |
| Fire Rating | UL 10C — 3-hour fire door |
| Standards & Listings | ANSI/BHMA A156.23 Grade 2 (E08501-1000); ANSI/UL 294; CAN4-S104; CAN/ULC-S533; CSA C22.2 No. 205; CSFM; CE |
| Warranty | MagnaCare lifetime replacement |
| Strikes Included | None — offset, split, and shock-absorbing strikes not included |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
