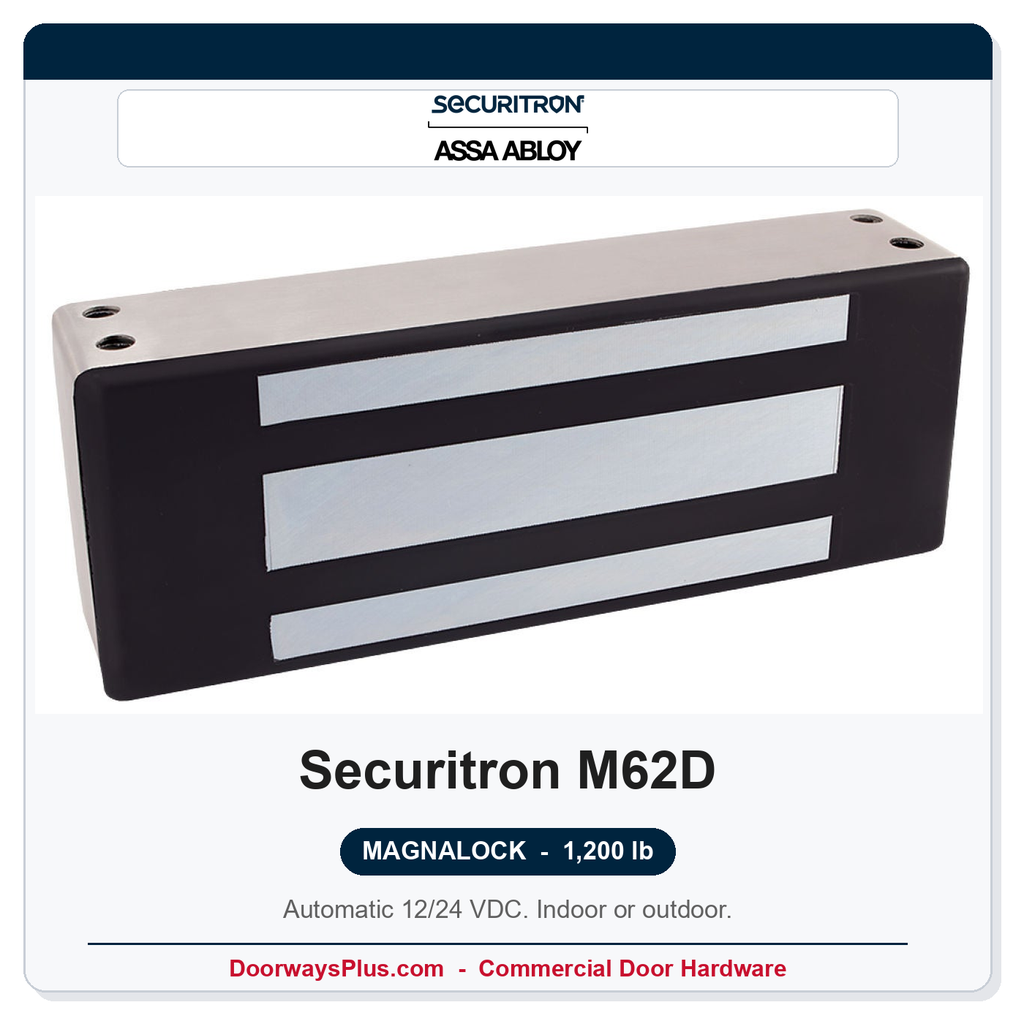

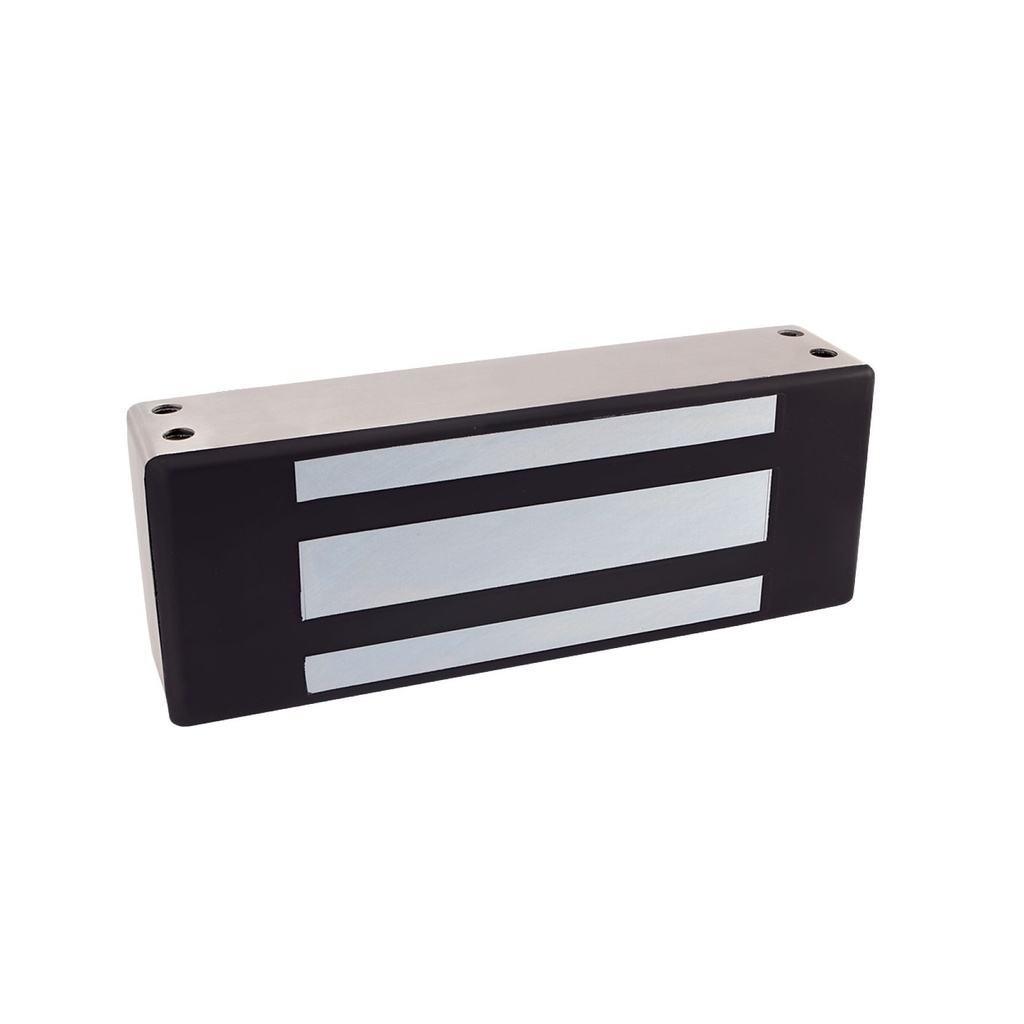

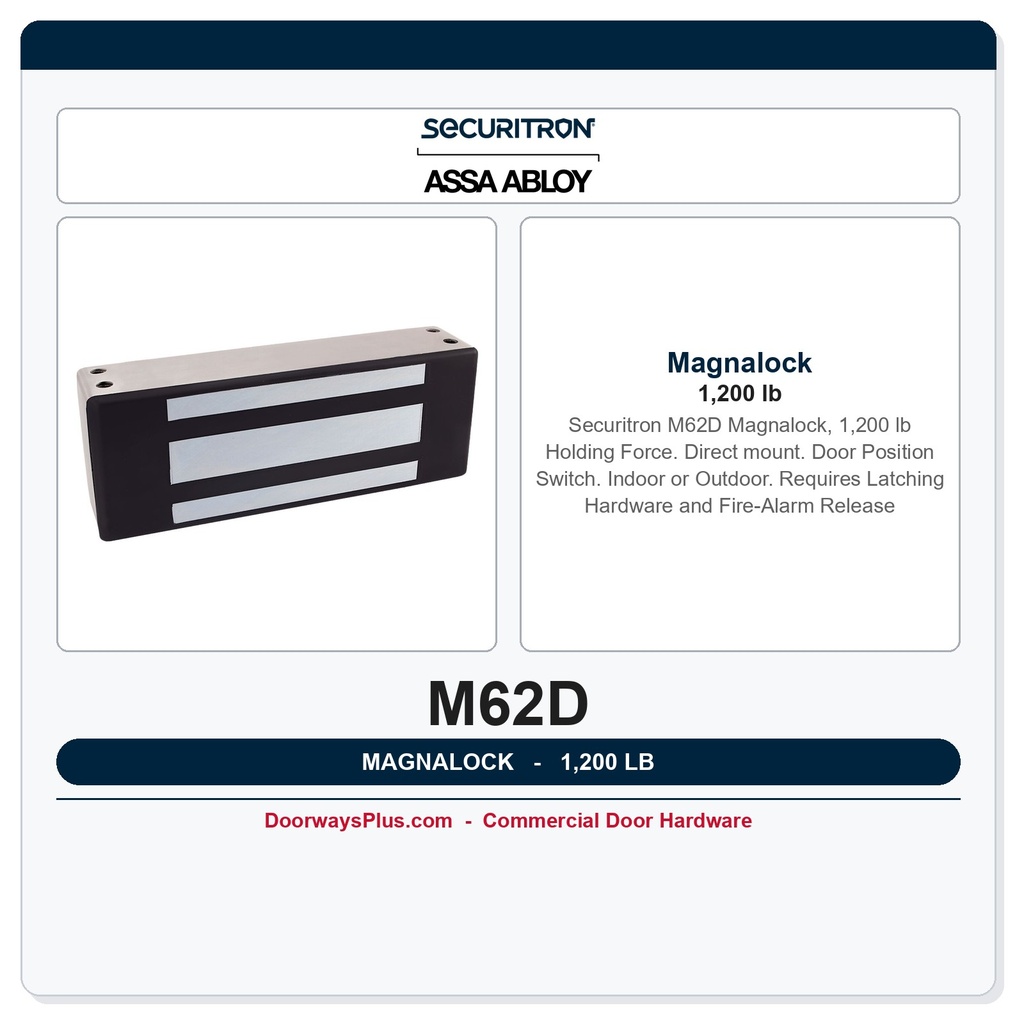

Securitron M62D Magnalock – 1,200 lb Direct Mount Electromagnetic Lock, Satin Stainless (630)
The Securitron M62D Magnalock is a heavy-duty, direct-mount electromagnetic lock delivering 1,200 lb (544 kg) of holding force — engineered for commercial and institutional access control applications where reliability and long service life are non-negotiable. This listing covers the direct mount configuration with standard strike and integrated door position switch (DPS), finished in 630 Satin Stainless (US32D). Manufactured at Securitron's Phoenix, Arizona facility, the M62D carries the MagnaCare lifetime replacement warranty and is suitable for both indoor and outdoor installations.
Key Features & Benefits
- High Holding Force: 1,200 lb (544 kg) clamping strength — suitable for high-traffic commercial doors, stairwells, and secured vestibules.
- Automatic 12/24 VDC Operation: Draws 250 mA at 12 VDC or 150 mA at 24 VDC with automatic voltage sensing — no field voltage adjustment required, simplifying installation and reducing wiring errors.
- PoE Friendly: Low current draw supports Power over Ethernet-compatible access control infrastructure, reducing cabling costs.
- Integrated Door Position Switch: Built-in DPS enables real-time door status monitoring through your access control system without a separate sensor.
- Instant Release, No Residual Magnetism: Drops immediately on power loss or signal, with no magnetic creep that could delay egress — a critical safety feature for fire-alarm integrated systems.
- Built-In MOV: Metal oxide varistor protects control circuitry from voltage transients and inductive kickback.
- Fully Sealed & Weatherproof: Rated for operating temperatures from -40°F to 140°F, sealed construction supports outdoor and harsh-environment use.
- Collapsing Blind Nuts: Simplify header or frame mounting without access to the back side — ideal for hollow metal frames and aluminum extrusions.
- 10 ft Jacketed Cable: Pre-wired lead cable included for clean, protected routing to the controller.
- MagnaCare Lifetime Replacement: Industry-leading warranty coverage on the maglock body.
Certifications & Standards
- UL 10C: Positive pressure fire door listed, 3-hour rating
- ANSI/BHMA A156.23 Grade 2 (E08501-1000)
- ANSI/UL 294 – Access Control System Units
- CAN4-S104 / CAN/ULC-S533 – Canadian fire and security listings
- CSA C22.2 No. 205
- CSFM – California State Fire Marshal
- CE – European conformity
Important Egress & Application Notes
An electromagnetic lock is not a complete egress solution on its own. Per NFPA 101 and local fire codes, maglocks must be integrated with latching hardware, fire-alarm release (fail-safe wiring), and a compliant means of egress release such as a request-to-exit (REX) device. A standalone push button alone does not constitute a compliant egress release. Always consult your AHJ (Authority Having Jurisdiction) for code-specific requirements. This model does not include an offset strike, split strike, or shock-absorbing strike — order separately if required for your door condition.
Technical Details
| Feature | Details |
|---|---|
| Model Number | Securitron M62D |
| Holding Force | 1,200 lb (544 kg) |
| Mount Type | Direct mount with standard strike |
| Door Position Switch | Integrated |
| Voltage / Current | 250 mA @ 12 VDC / 150 mA @ 24 VDC; automatic 12/24 VDC |
| Body Dimensions | 8 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) |
| Environment | Indoor or outdoor; fully sealed |
| Lead Cable | 10 ft jacketed cable included |
| Fire Rating | UL 10C 3-hour positive pressure |
| Standards | ANSI/BHMA A156.23 Grade 2, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No.205, CSFM, CE |
| Warranty | MagnaCare lifetime replacement |
| Origin | Made in Phoenix, AZ, USA |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
