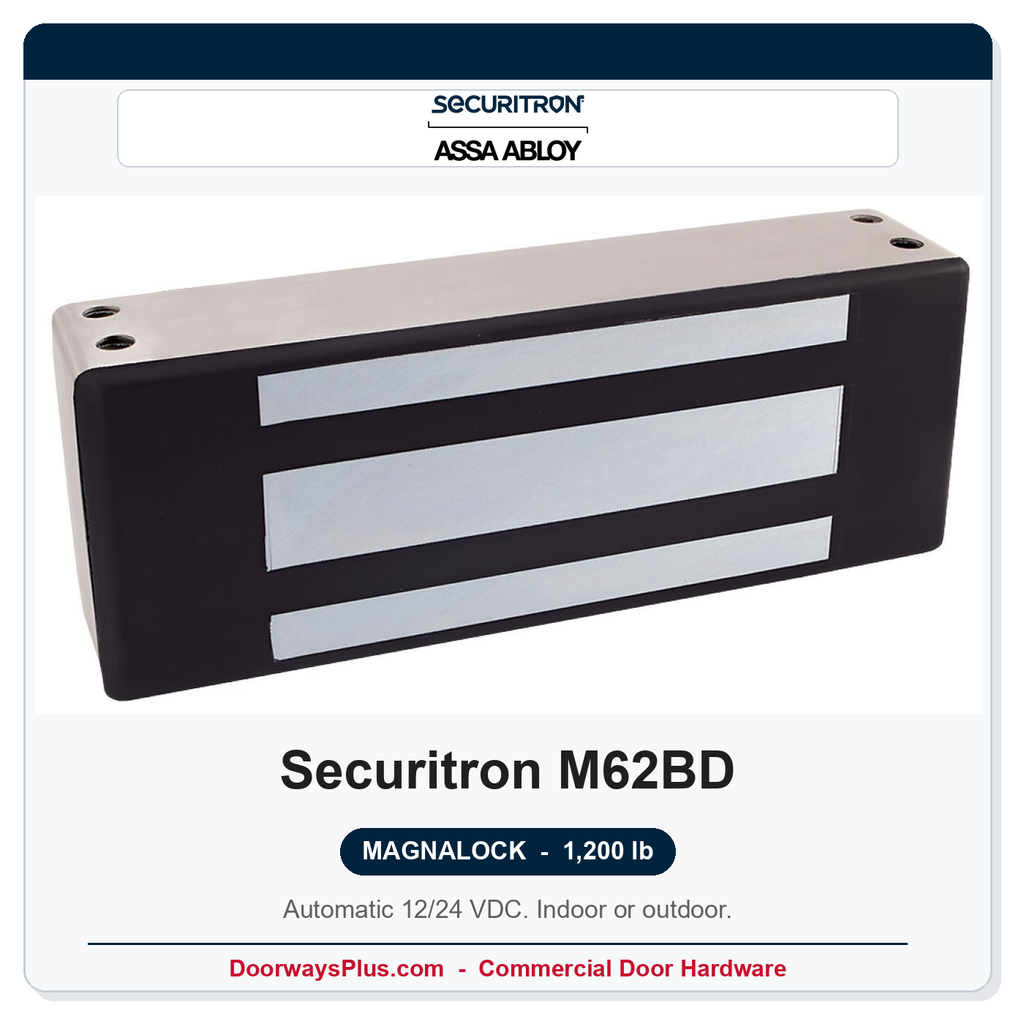

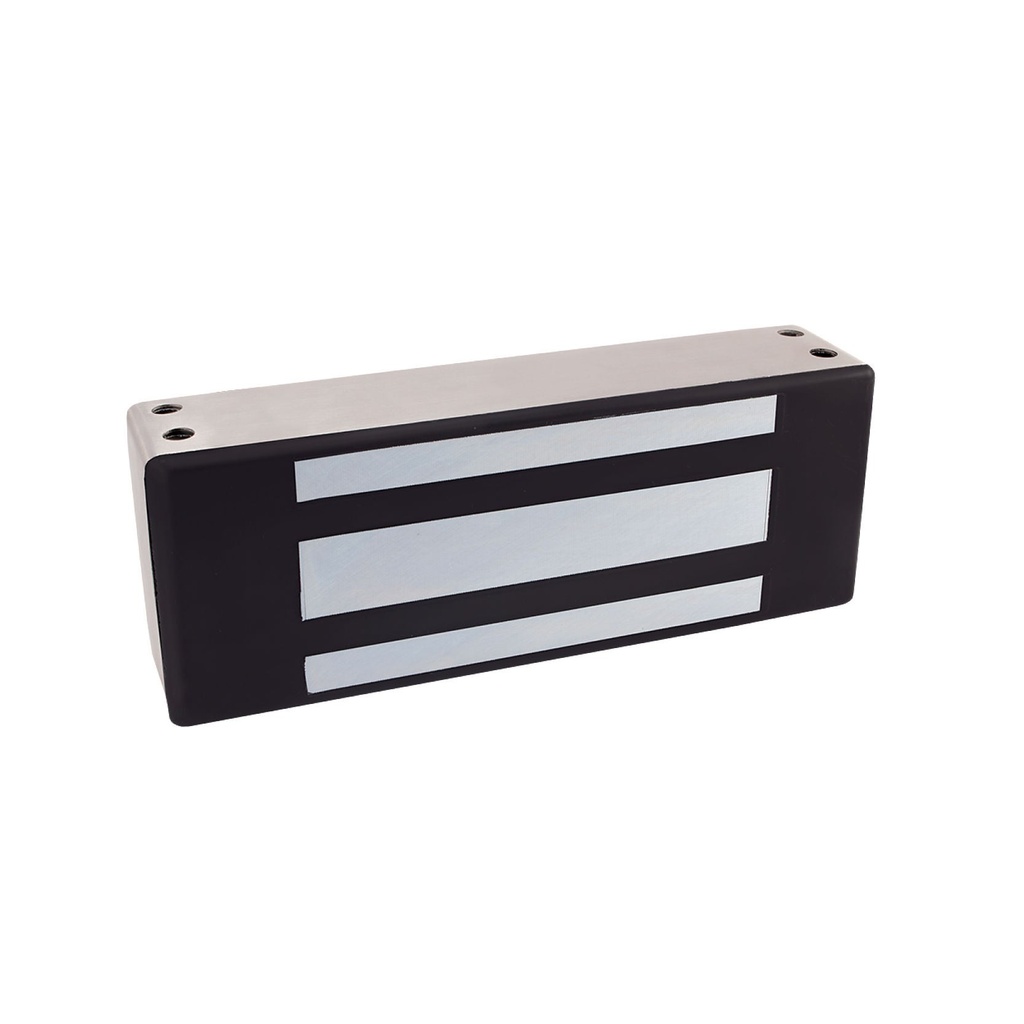

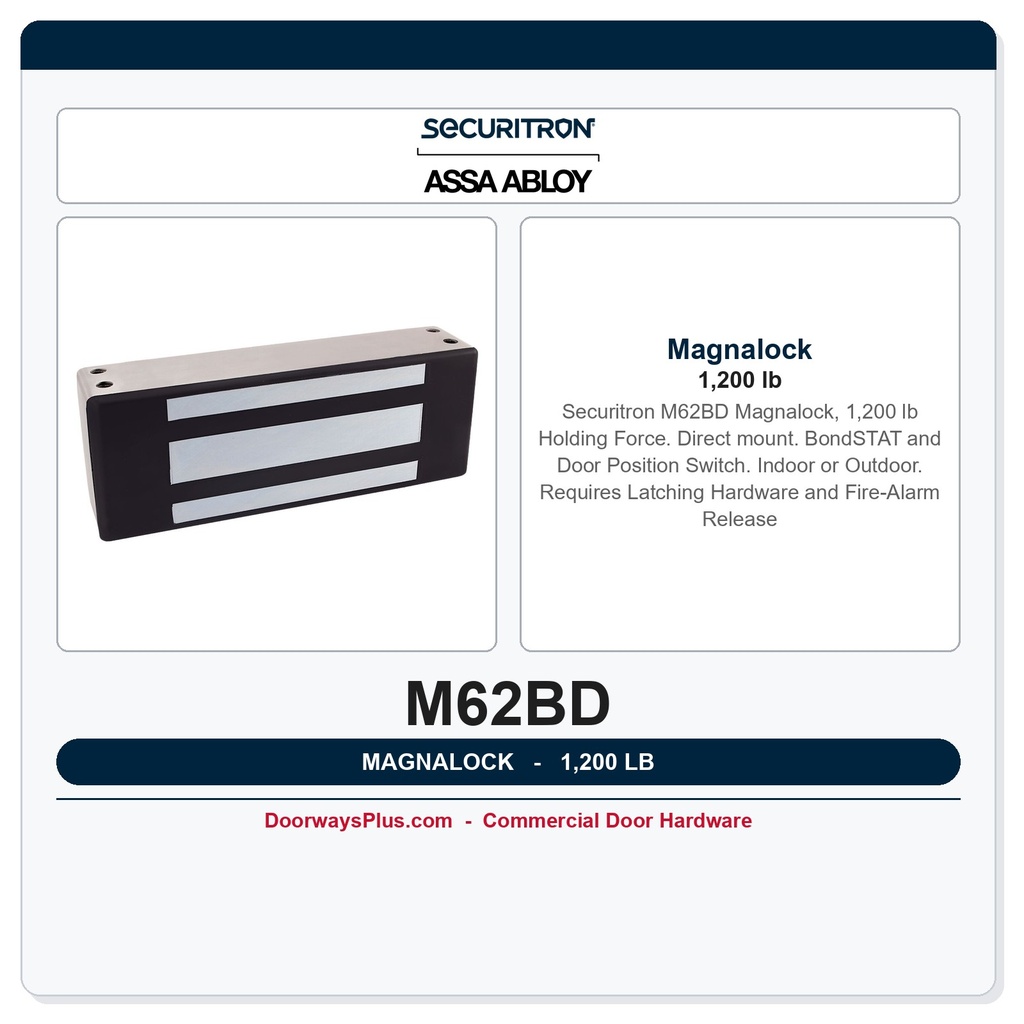

Securitron M62BD Magnalock – 1,200 lb Electromagnetic Lock, Direct Mount, Satin Stainless (630)
The Securitron M62BD Magnalock is a heavy-duty, 1,200 lb (544 kg) holding-force electromagnetic lock engineered for demanding commercial and institutional access control applications. This listing is the direct-mount configuration with a standard strike, BondSTAT bond sensor, and an integrated door position switch — delivering verified locking status and door-ajar monitoring in a single, self-contained assembly. Finished in 630 Satin Stainless (US32D), it is equally suited for indoor and outdoor installations with a fully sealed body rated from -40°F to 140°F. Manufactured in Securitron's Phoenix, Arizona facility and backed by the MagnaCare lifetime replacement warranty.
Key Features & Benefits
- 1,200 lb Holding Force: Provides robust electromagnetic holding strength — 1,200 lb (544 kg) — appropriate for high-traffic commercial entryways and security-sensitive openings.
- BondSTAT Bond Sensor: Monitors the magnetic bond between lock body and strike in real time, providing a supervisory signal that confirms secure engagement rather than simply reporting power status.
- Integrated Door Position Switch: Eliminates the need for a separate DPS device, reducing wiring complexity and hardware cost on the door frame.
- Automatic 12/24 VDC Operation: Accepts 250 mA at 12 VDC or 150 mA at 24 VDC with no field voltage adjustment required — simplifying integration with virtually any access control power supply.
- Instant Release, No Residual Magnetism: Drops to zero holding force the moment power is interrupted, ensuring immediate egress without magnetic drag or delay.
- Built-in MOV: Metal oxide varistor suppresses voltage transients on the coil circuit, protecting the lock and connected control equipment.
- PoE Friendly: Current draw is compatible with Power-over-Ethernet access control architectures, reducing dedicated power supply requirements.
- Fully Sealed Body: Weatherproof construction handles outdoor exposure and washdown environments across the full -40°F to 140°F operating range.
- Collapsing Blind Nuts: Simplify installation on hollow metal, aluminum, and wood frames without requiring through-bolt access from the opposite face.
- 10 ft Jacketed Cable: Pre-attached lead cable provides adequate service loop for most frame preparations and reduces field splicing.
- MagnaCare Lifetime Replacement: Industry-leading warranty coverage supports long-term facility maintenance budgets.
Certifications & Standards
- UL 10C – Positive-pressure fire door assembly (3-hour rating)
- ANSI/BHMA A156.23 Grade 2 (E08501-1000)
- ANSI/UL 294 – Access control system units
- CAN4-S104 / CAN/ULC-S533 – Canadian fire and burglar alarm standards
- CSA C22.2 No. 205 – Signal equipment
- CSFM – California State Fire Marshal listed
- CE – European conformity
Important Application Notes
An electromagnetic lock alone is not a complete egress solution. This lock must be paired with appropriate latching hardware and a listed fire-alarm release (power-off-to-unlock circuit). A standalone push button does not constitute the sole means of egress release under most codes. Consult the authority having jurisdiction (AHJ) for egress compliance requirements. This model does not include an offset strike, split strike, or shock-absorbing strike — order the appropriate accessory strike if required by the door preparation. Do not use lithium or NiMH batteries with Securitron AQD or AQS power supplies used in conjunction with this lock.
Technical Details
| Feature | Details |
|---|---|
| Model Number | M62BD |
| Brand / Series | Securitron Magnalock |
| Mount Type | Direct mount |
| Strike Type | Standard strike (offset, split, and shock-absorbing strikes not included) |
| Holding Force | 1,200 lb (544 kg) |
| Voltage / Current | 250 mA at 12 VDC; 150 mA at 24 VDC; automatic 12/24 VDC, no field adjustment |
| Body Dimensions | 8 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Sensor / Monitoring | BondSTAT bond sensor + integrated door position switch |
| Operating Environment | Indoor or outdoor; fully sealed; -40°F to 140°F |
| Lead Cable | 10 ft jacketed |
| Fastening | Collapsing blind nuts |
| Certifications | UL 10C (3-hr), ANSI/BHMA A156.23 Grade 2, ANSI/UL 294, CAN4-S104, CAN/ULC-S533, CSA C22.2 No. 205, CSFM, CE |
| Warranty | MagnaCare lifetime replacement |
| Origin | Made in the USA (Phoenix, AZ) |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Door Status, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
