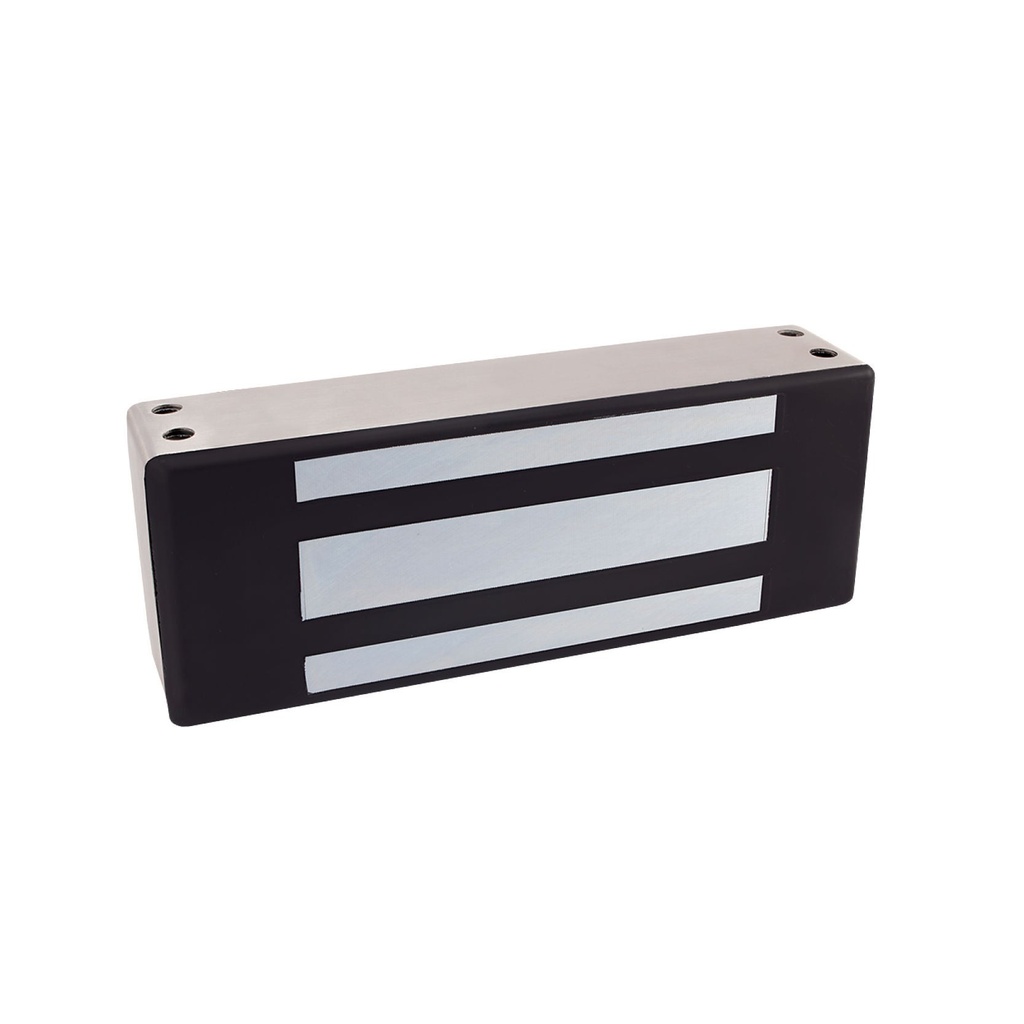

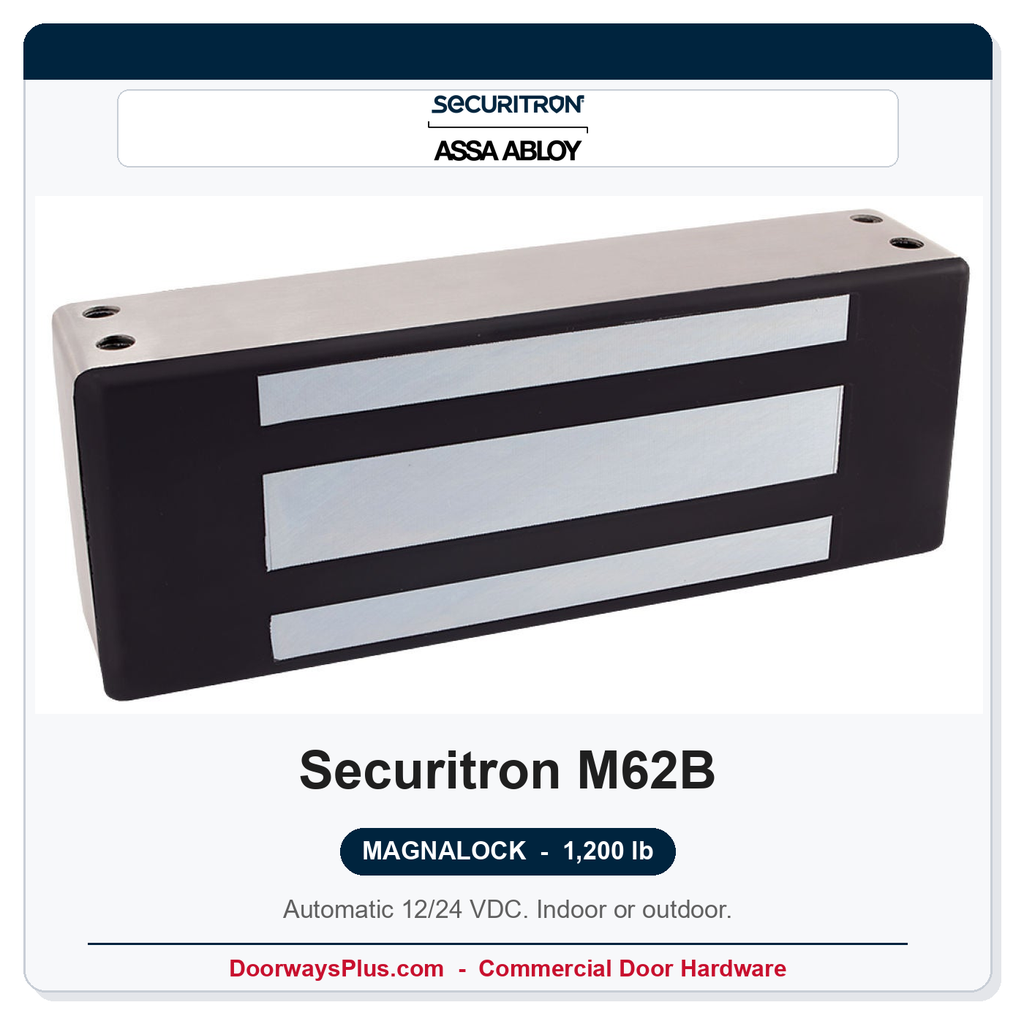

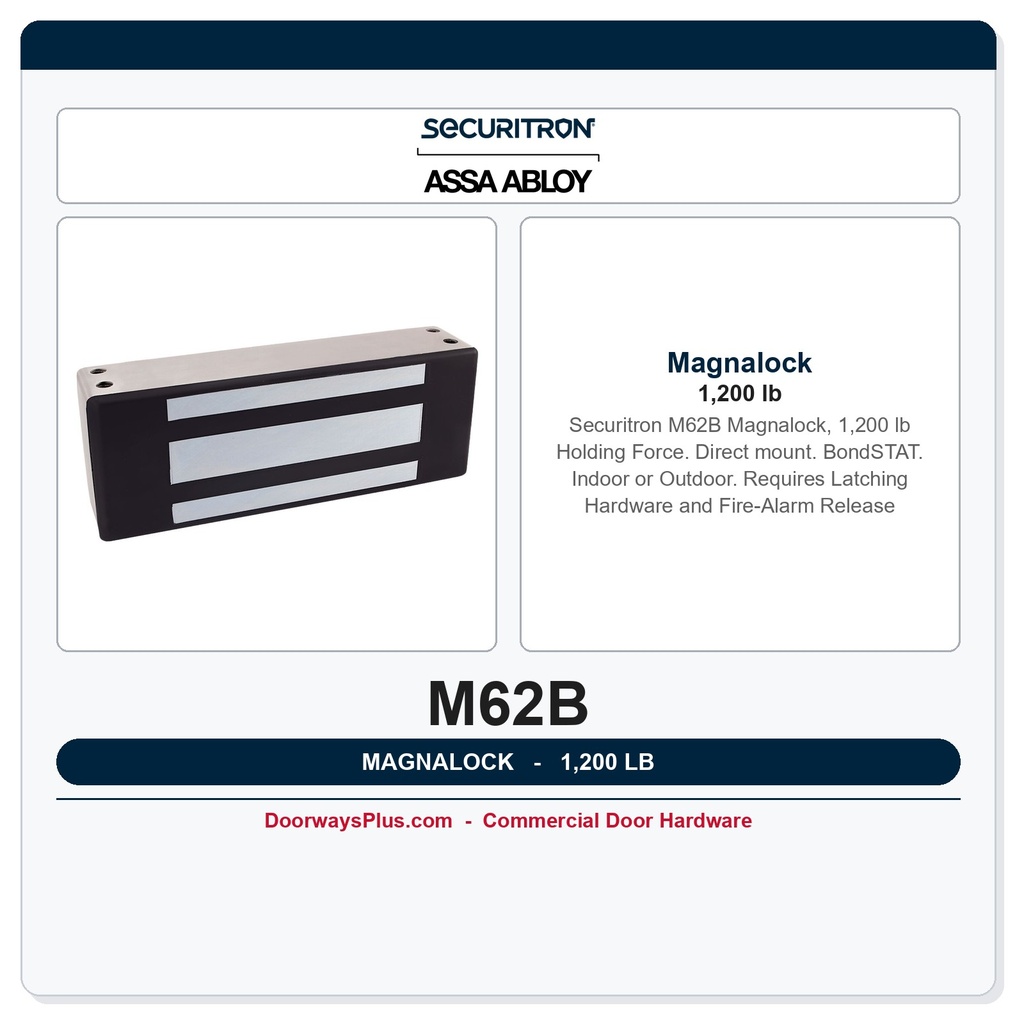

Securitron M62B Magnalock — 1,200 lb Direct Mount Electromagnetic Lock, Satin Stainless
The Securitron M62B Magnalock is a heavy-duty, 1,200 lb (544 kg) holding-force electromagnetic lock engineered for demanding commercial access-control applications. This listing is configured as a direct mount assembly with a standard strike and integrated BondSTAT bond sensor, which continuously monitors the lock's magnetic bond and provides a status signal to your access-control panel. Manufactured at Securitron's Phoenix factory and finished in 630 Satin Stainless (US32D), the M62B is suitable for both indoor and outdoor installations — fully sealed for exposure to the elements across an operating range of –40 °F to 140 °F.
Key Features & Benefits
- High Holding Force: 1,200 lb (544 kg) secures heavy-traffic doors, entry vestibules, and controlled-access corridors reliably.
- Automatic 12/24 VDC Operation: Draws 250 mA at 12 VDC or 150 mA at 24 VDC with no field voltage adjustment required — simplifying installation and integration with a wide range of access-control power supplies.
- BondSTAT Bond Sensor: Built-in sensor confirms positive bond for real-time door-status monitoring, door-forced alarms, and request-to-exit logic.
- Instant Release / No Residual Magnetism: Door releases immediately upon power interruption — critical for life-safety compliance and smooth egress.
- Built-in MOV: Metal oxide varistor provides transient voltage suppression, protecting connected control equipment from power spikes.
- Fully Sealed Enclosure: Weatherproof design with collapsing blind nuts for clean, flush installation on aluminum or hollow-metal frames.
- PoE Friendly: Compatible with Power-over-Ethernet architectures for simplified wiring in IP-based access-control systems.
- 10 ft Jacketed Cable: Pre-attached jacketed lead wire eases routing and termination.
- MagnaCare Lifetime Replacement: Backed by Securitron's MagnaCare program for long-term peace of mind.
- Multi-Certification Compliance: UL 10C 3-hour fire door rated; ANSI/BHMA A156.23 Grade 2; listed to CAN4-S104, CAN/ULC-S533, ANSI/UL 294, CSA C22.2 No.205, CSFM, and CE.
Applications
- Commercial entry doors, vestibules, and lobbies
- Stairwell and corridor access control
- Healthcare facility controlled-access zones
- Government and institutional security checkpoints
- Education facilities and data-center doors
Important Egress & Safety Notes
An electromagnetic lock is not a complete egress solution on its own. Per applicable codes, the M62B must be paired with compliant latching hardware and integrated with the building's fire-alarm system for automatic release on alarm. A standalone push button does not satisfy code requirements as the sole means of egress release. Consult your AHJ (Authority Having Jurisdiction) and a qualified access-control integrator for a compliant installation. This model does not include an offset strike, split strike, or shock-absorbing strike — order those accessories separately if required.
Technical Details
| Feature | Details |
|---|---|
| Model | Securitron M62B |
| Mount Type | Direct mount |
| Strike Type | Standard strike (offset, split, and shock-absorbing strikes not included) |
| Bond Sensor | BondSTAT |
| Holding Force | 1,200 lb (544 kg) |
| Voltage / Current | 12 VDC @ 250 mA | 24 VDC @ 150 mA (automatic, no field adjustment) |
| Body Dimensions | 8 in L × 3 in H × 2-3/4 in D |
| Finish | 630 Satin Stainless (US32D) |
| Operating Temperature | –40 °F to 140 °F |
| Environment | Indoor / Outdoor (fully sealed) |
| Lead Wire | 10 ft jacketed cable |
| Certifications | UL 10C 3-hr fire rated; ANSI/BHMA A156.23 Grade 2 (E08501-1000); CAN4-S104; CAN/ULC-S533; ANSI/UL 294; CSA C22.2 No.205; CSFM; CE |
| Warranty | MagnaCare Lifetime Replacement |
| Origin | Made in Phoenix, AZ, USA |
| Brand | Securitron |
| Finish with BHMA code | 630 - US32D Satin Stainless |
| Magnetic Lock Options | Bond Sensor, Weather Proof |
| Voltage | 12 VDC, 24 VDC |
| Mag Lock Type | Single Door Magnetic Lock |
| Minimum Holding Force | 1200 lbs. |
